Power Recorder
Viewing Live Data
35
Viewing Live Data
The Live menu is used to view live data on the circuits on the circuits for example, Scope,
Meter, Phasor, or Harmonics.
Scope Screen

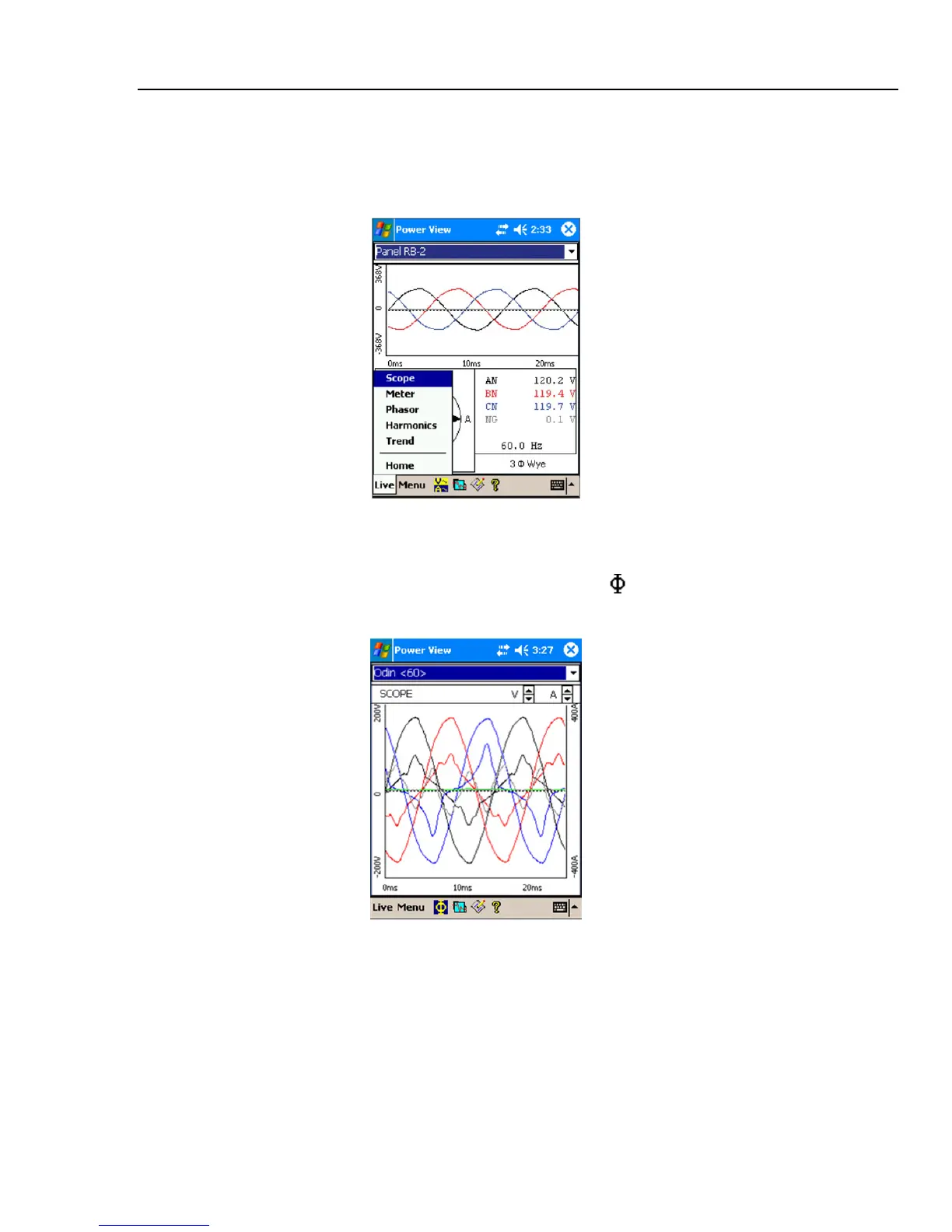

The Scope screen shows 1.5 cycle waveform data for the volts and amp lines selected in
the check boxes on Phase View screen. Tap the Phase icon (
) to display the Phase
View screen.
