Power Recorder
Setting Up the Recorder
43

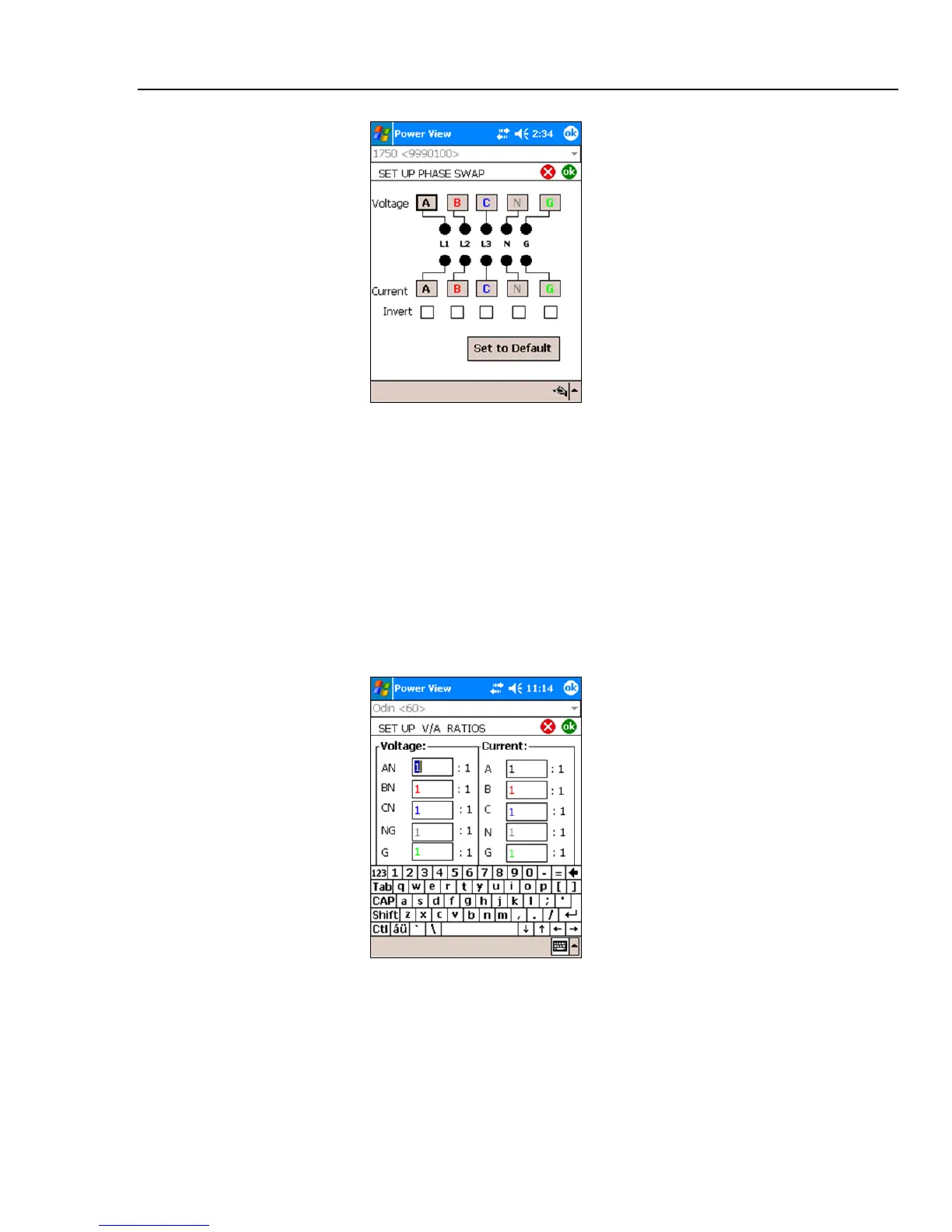

Setting the Volts and Current Ratio
Use this menu to add a ratio factor to the voltage or current input on each phase.
Changing the first “1” in each case if there is a potential transformer in series with the
voltage connection such as when you want to monitor a medium-voltage network using
PTs and CTs to scale the voltage and current to a convenient level for measuring
instruments.
The current ratio applies a ratio to the current input in order to show the current present
on a medium-voltage network. This feature is intended to be used for sensing low levels
of current to represent the much higher levels on the primary side at a substation or
step-down transformer that has built-in metering current transformers.
Assign Recorder Name and Password
Use this feature to assign a name identifier to the Recorder and to establish a password
for the Recorder. This naming feature is designed to help you keep track of which
Recorder is in use. The Recorder name is later associated with the data file that you
download from the Recorder.
