Fluke 1750 User Manual

1750
Operators Manual
10

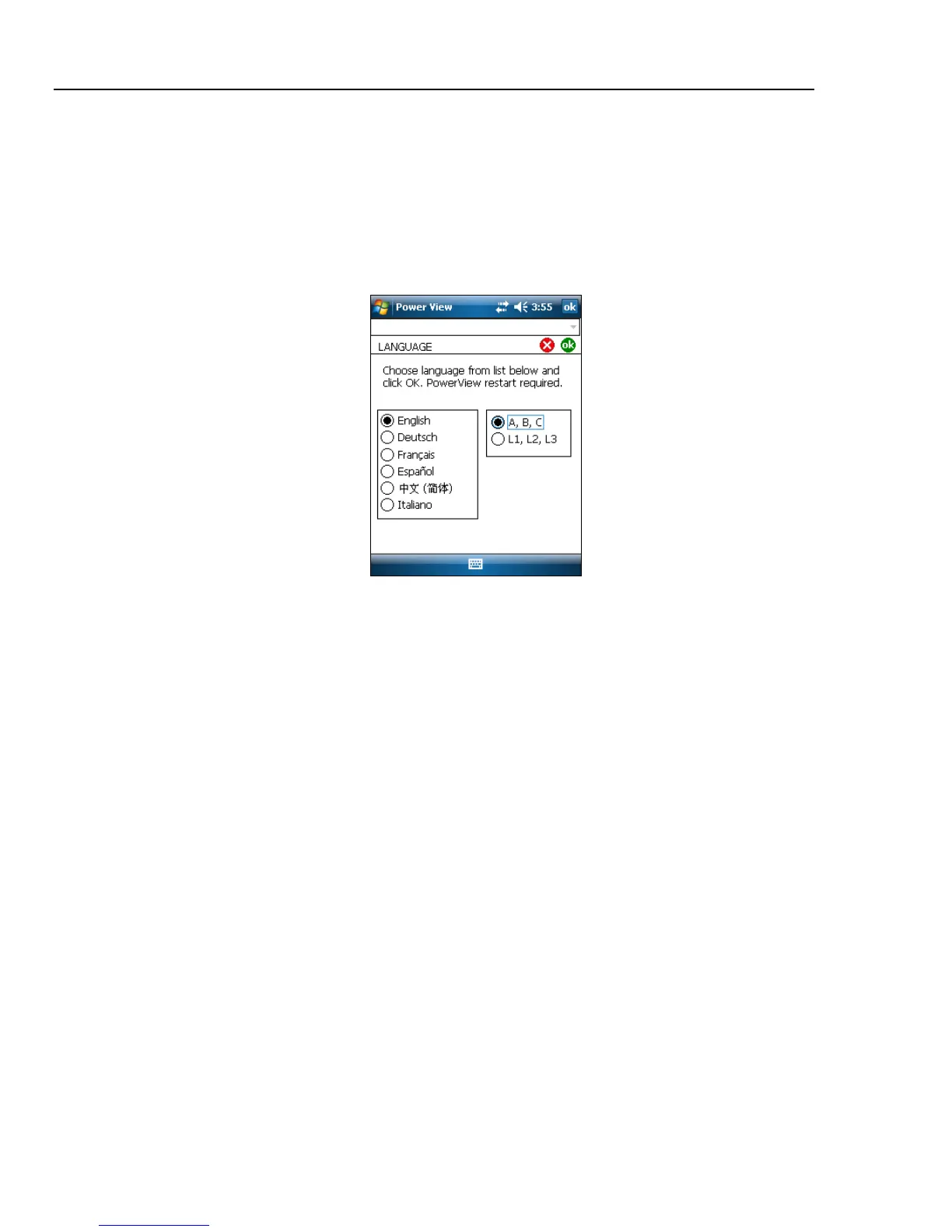

Language Selection
Power View features a localized user interface for English, German, French, Spanish,
Chinese, and Italian. When Power View operates for the first time on a new PDA or after
a hard reset, it directly opens the language setup window. This window is also accessed
by Menu>1750 Setup>Language.
The Language window also provides the option to choose between the phase identifiers A,
B, C and L1, L2, L3.
PC System Requirement for Power Analyze
• Windows 2000, Windows XP, Windows Vista 32/64bit, Windows 7 32/64bit.
Administrator privileges are required to install applications.
• PC with 500 MHz or faster processor.
• 256 MB RAM, 1 GB recommended (100 MB of available disk space, 10 GB
recommended).
• 1024 x 768 or higher resolution video.
• Keyboard and mouse.
Installing Power Analyze
Before installing the software on your PC, make sure you have Internet Explorer version
6, or later, installed. Other recommended software:
• Adobe Acrobat Reader
• Microsoft Word 2000 or higher
• Microsoft Excel 2000 or higher
WCaution
Do not remove the CD until after you have successfully
installed the software, rebooted the machine, and opened the
application.
1. Insert the CD into your CD-ROM drive.

Fluke 1750 Specifications

General

Type	Power Quality Analyzer
Frequency Measurement Range	42.5 Hz to 69 Hz
Safety Rating	CAT IV 600 V, CAT III 1000 V
Accuracy	±0.1% of reading
Harmonics	Up to 50th harmonic
Communication	Ethernet, USB
Power Supply	100 V to 240 V AC
Channels	4 voltage, 4 current
Battery Backup	Yes, internal battery
Measurement Parameters	Voltage, Current, Power, Harmonics, Flicker
Data Logging Interval	1 second to 60 minutes
Battery Life	45 minutes (UPS)
Voltage Measurement Range	1 to 1000 V (phase to neutral)
Operating Temperature	-10 to 50 °C
