Fluke OptiView II Series User Manual

OptiView
TM
Series II
Getting Started Guide
4
The Analyzer and Accessories
The analyzer is designed for troubleshooting and monitoring Local Area Networks
(LANs). The analyzer tests all seven OSI layers. It tests from the cable to the
application layer and everything in between, so problems have nowhere to hide.
The analyzer comes in two configurations:
! OptiView
TM
Series II (standard version) - supports 10/100 Ethernet
(10BASE-T and 100BASE-TX) through an RJ-45 jack.
! OptiView
TM
Series II Pro – adds complete RMON and RMON2 support, a
100BASE-FX fiber optic interface, packet capture and decoding capability
! OptiView
TM
Series II Pro Gigabit - adds to the OptiView
TM
Pro fiber
1000BASE-SX using a standard GBIC (the 1000BASE-LX and 1000BASE-
TX GBICs may be ordered as an option)
LINK
TRANSMIT
COLLISION
ERROR
%UTILIZATION
OptiView
Resource
CD
Getting
Started
Guide
Registration
Card
Strap
Softcase
AC adapter/charger
power cord
OptiView
TM
External battery pack
Stylus
WireView
TM
wire map
adapter
LC-1
North American
LC-4
UK
LC-5
Swiss
LC-6
Australia
LC-7
South Africa
LC-3
Europe
SERIES II
aww01f.eps

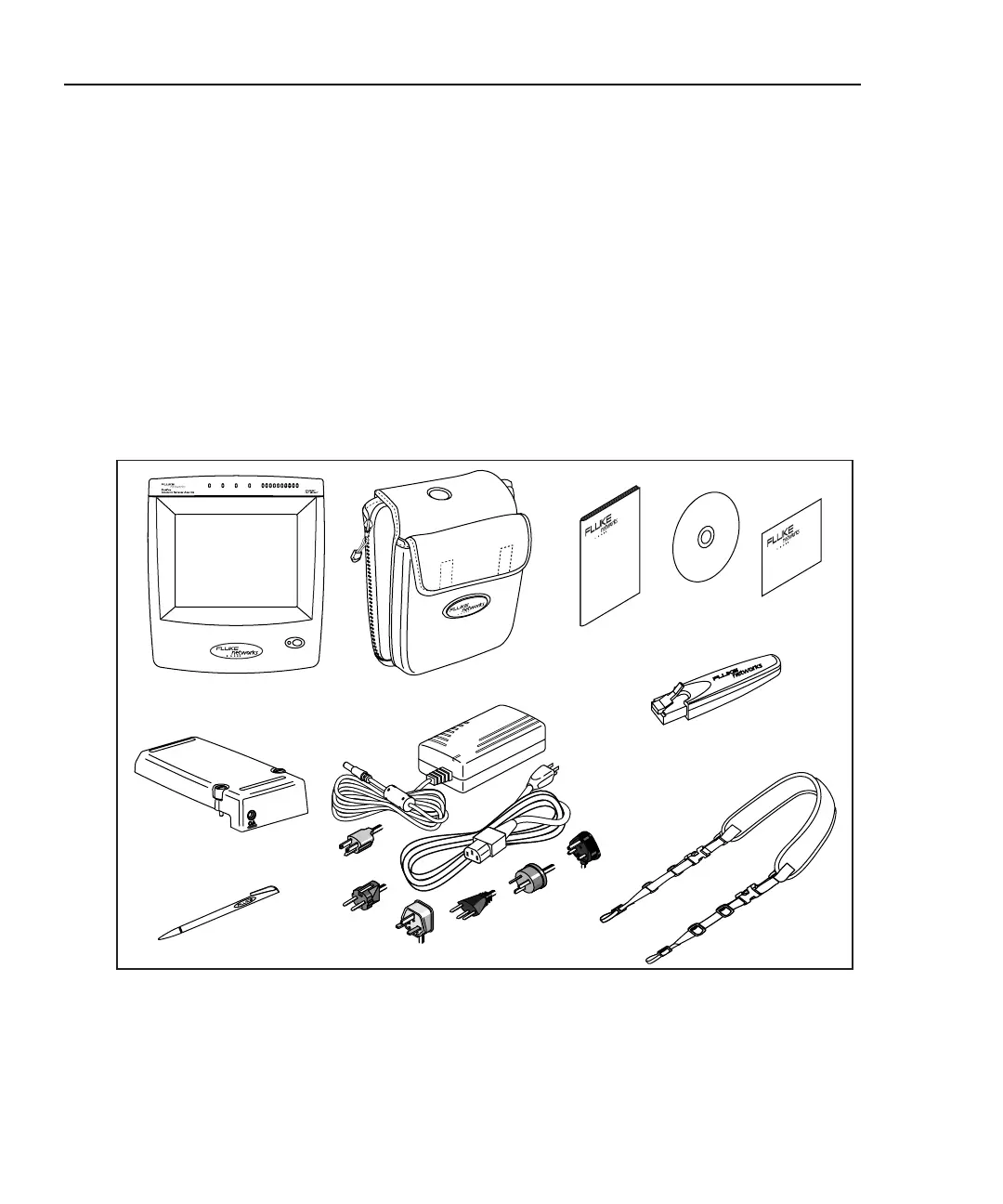

Figure 1. The Standard OptiView
TM
Series II Integrated Network Analyzer and Supplied
Accessories
