Integrated Network Analyzer
Using the Analyzer
35
Installing the Remote User Interface Software
The remote user interface software can be installed on Win98 SE, WinNT 4.0,
Win2000, and WinXP operating systems.
To install the remote user interface software from CD, insert the OptiView
TM
Resource CD into your PC’s CD drive. Autorun will execute and load the
OptiView
TM
Resource CD user interface.
If autorun is disabled on your PC, execute the file Launch.exe located in the root
directory of the CD. Follow the on-screen instructions to complete the installation.
To install the user interface software from your PC through your
browser, connect the analyzer to your network and power it on.
Enter the analyzer IP address into your PC’s browser URL field
(omit leading zeros). The analyzer IP address is displayed on the
Front Page screen in the OptiView button as shown to the left. The
home page of the analyzer will display as shown in Figure 20.
Select the Install Remote UI button and follow the on-screen
instructions to complete the installation.
Once the installation is complete, you will be able to launch the OptiView
Browser
TM
from your desktop, select an analyzer from the OptiView Browser
TM
list,
or enter the IP address of the analyzer, and gain access to valuable network
information through the user interface software. See figure 20.

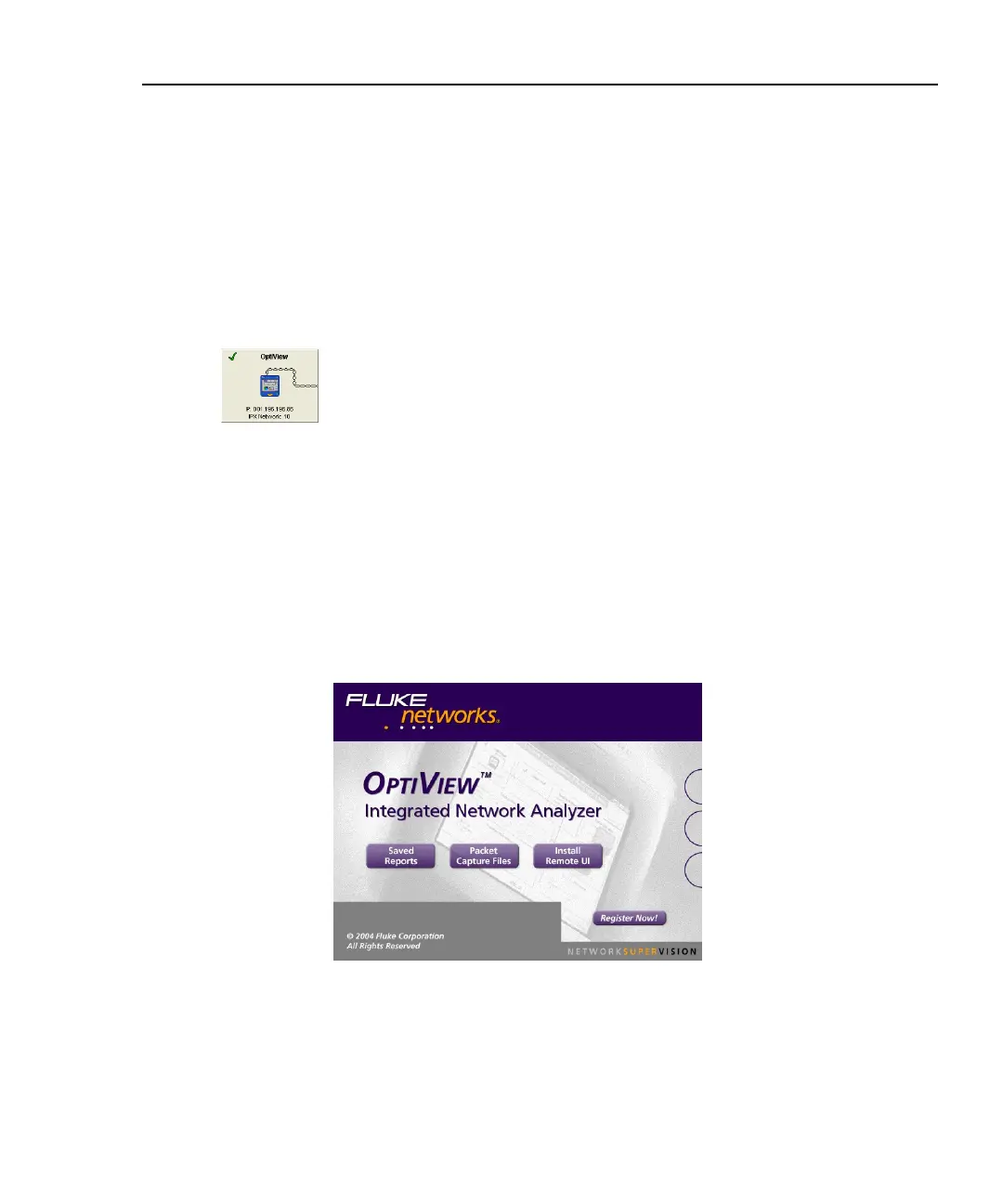

Figure 20. OptiView Personal Web Server Home Page
