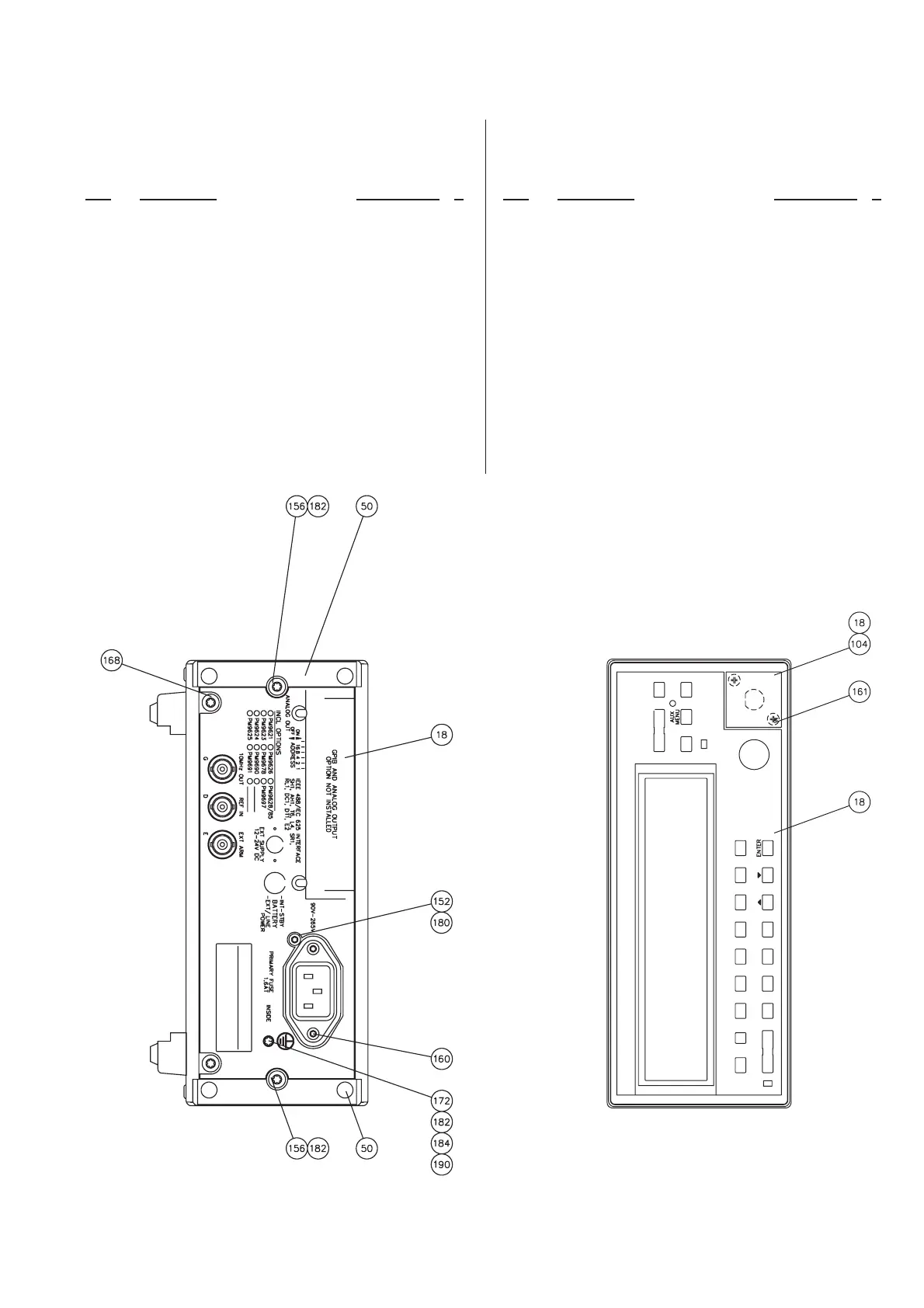

Mechanical Parts
Pos Description Part Number P
PCA 1, Main board 4031 100 65420 P
PCA 2, Front board 4031 100 48250 P
13 Stand-off, plastic 5322 532 12746 R
18 Textplate kit 4031 100 62430 R
20 Rubber keypad 4031 100 62720 R
22 Cover and Front panel 4031 100 49570 R
25 Rear panel 5322 447 31085 P
34 Profile-support 5322 460 60542 P
35 Profile-support 4031 100 53210 P
38 Shield cover 5322 447 91931 P
39 Shield cover 5322 462 50459 P
50 Rearfoot, cabinet, m-90 5322 462 41719 R
52 Bottom foot, cabinet, m-90 5322 462 41554 R
53 Bracket, cabinet 5322 401 11422 R
54 Spring, cabinet 5322 492 63808 R
Pos Description Part Number P
56 Rubber foot, sj-5018 black 5322 462 44434 R
58 Tilting support 5322 401 11471 R
62 Coax connector 5322 267 10004 S
63 Coax connector 5322 265 10264 R
64 Soldering tag, 9.6X15/15 ms fs 5322 290 30318 S
67 Toroid core 30nh rcc9/6/3 4c65 violet 5322 526 10545 P
68 Bottom shield 5322 447 91829 P
70 BNC holder 4031 100 48830 P
84 Mains filter 1a fs3514-1/07 5322 121 42352 R
90 PCA guide for prescaler 5322 401 11347 P
92 Stand-off nut M3x14 4031 100 48800 P
100 Washer, 4.0X10x2 pa6-6 5322 532 52364 P
102 Washer, 9.5X13x2.3 4822 532 10222 P
104 BNC plate, 25.4X25.4 5322 466 82868 P
110 Insulate plate 5322 466 61932 P
122 Shielding strip 610mm 99-210
self-adhesive
5322 466 62077 P
150 Screw, mrt-kombi 3x06, stfz 4822 502 11658 P
152 Screw, mrt-kombi 3x08, stfz 5322 502 21489 P
156 Screw, mrt-kombi 4x16, stfz 5322 502 21491 P
160 Screw, mft-tt 3x08 stfzb tx 4822 502 11713 P
Replacement Parts, Mechanical Parts 7-3
