Fluke PM6685 - Front Board

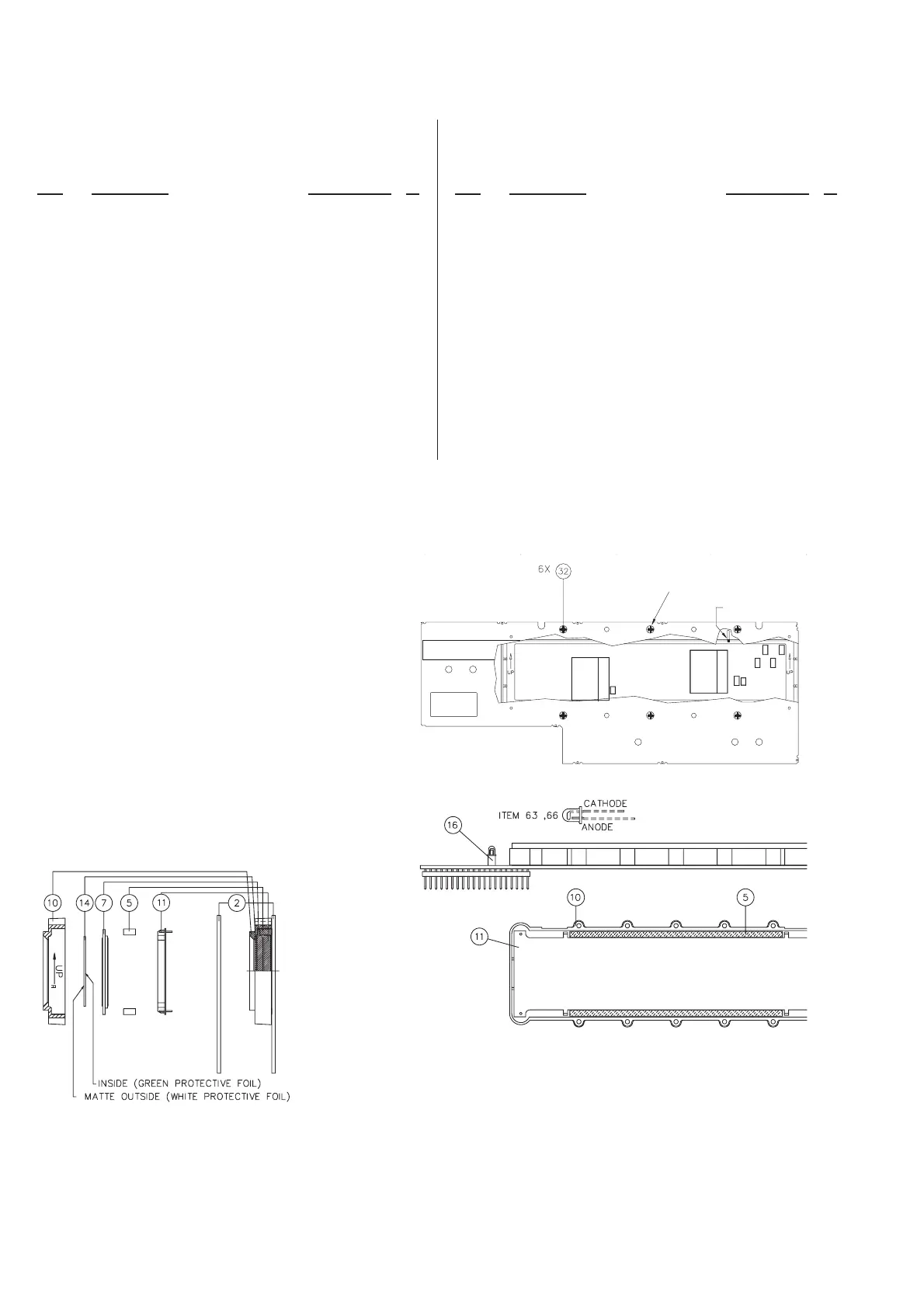

7-12 Replacement Parts, Front Board
Front Board
Pos Description Part Number P
5 Connector row, SG0.25x100x6.0x3.0 5322 267 70294 R
7 LCD Display 5322 214 91033 R
10 LCD bezel 4031 100 62820 R
11 Backlight-LED 5322 130 82201 R
14 Window LCD 5322 381 11136 P
16 LED spacer, LEDS1E-3-01 for led 5322 255 41228 P
20 Rubber keypad 4031 100 62720 R
32 Screw, RX-PT Z 2-28X8 FZB 4822 502 30081 P
C201 Capacitor 10 nF 20% 50V X7R, 0805 5322 122 34098 S
C202 Capacitor 10 nF 20% 50V X7R, 0805 5322 122 34098 S
D201 LED 3 mm HLMP-1300 red 5322 130 81921 R
Pos Description Part Number P
D202 LED 3mm Yellow 590nm
4-8MCD/10mA
4822 130 30953 R
P204 Connector 40 POL TMH-120-01-L-DW 5322 265 51295 P
R201 Resistor 220 k 1% .125W 100PPM
1206
4822 051 52204 S
R204 Resistor, 10.0 W 1% 0.125W 1206 4822 051 10109 S
R205 Resistor, 10.0 W 1% 0.125W 1206 4822 051 10109 S
R206 Resistor, 10.0 W 1% 0.125W 1206 4822 051 10109 S
R207 Resistor, 10.0 W 1% 0.125W 1206 4822 051 10109 S
U201 IC, PCF8576T, VSO56 5322 209 11129 R
U202 IC, PCF8576T, VSO56 5322 209 11129 R
ORIENTATION MARK FOR LCD
TORQUE 3 Ncm
TIGHTEN THIS SCREW FIRST TO GUIDE LCD HOLDER
