dropout. You only need to loosen the screws until
the dropout can move freely.
A1

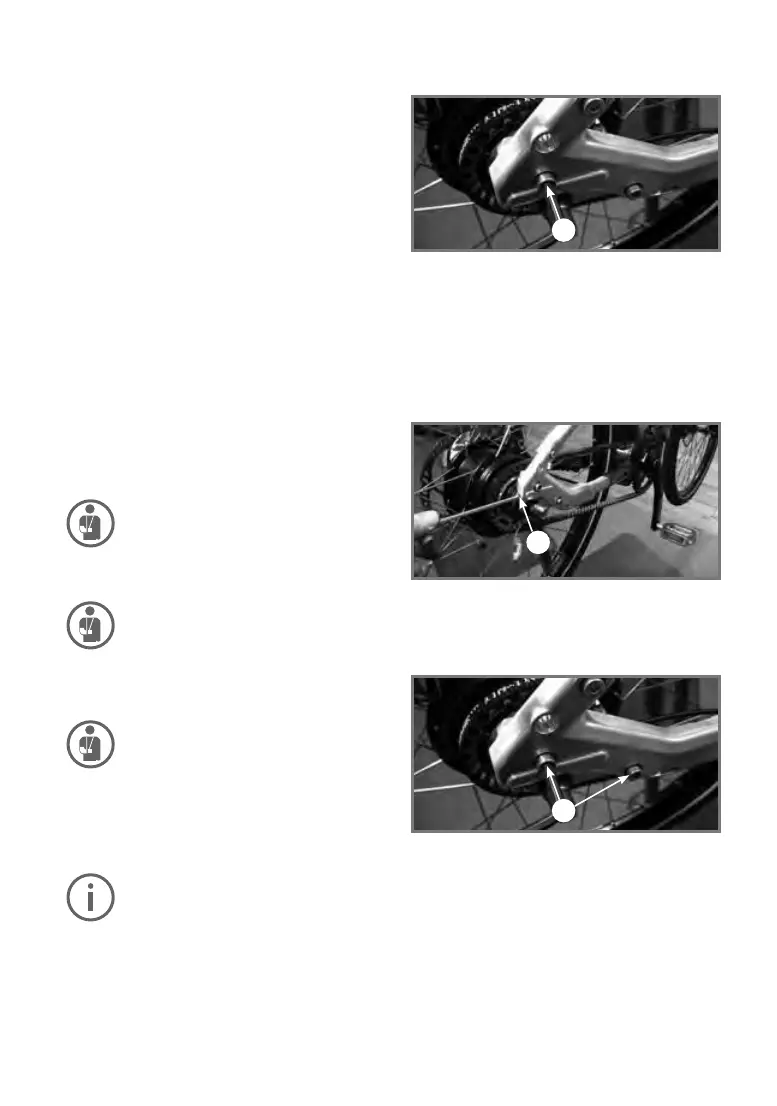

Tighten the chain/drive belt using the adjusting
screw A2. The correct chain tension is reached
when the chain can still move up and down slight-
ly in the centre (10-15 mm). The correct belt ten-
sion must be checked using a belt tension meas-
uring device. Consult the belt manufacturer’s
instructions to determine the correct tension.
www
.gatescarbondrive.com/Tech/Resources
th
A2
e tension has been set correctly, tighten the
screws A1 with the prescribed torque of 8 Nm.
Check that the dropout and the rear wheel are
rmlyinplace.
A1
Beltdrive
The Gates Carbon Drive belt is very durable and
long-lasting. However, you must take extreme
care before and during assembly to ensure that
no damage is caused to the carbon bres that
makeupthestrength ofthedrive belt.Extreme
bending and twisting causes tears that can lead
to faults in the belt if subjected to high stress.
Follow the instructions for handling the Gates
Carbon Drive System belt and observe the provi
-
sions in the user manual.
14.2Rohlo󰀨E-14ontheKioxdisplay
The gear is always displayed on the start screen.
Ifyouareonadi󰀨erentscreen,thegearwillbrief-
ly appear when you change gear. As the drive
unit
 detects the gear-shifting and briey reduc-
es the motor assistance in response to this, it is
also possible to change gears at any time when
carrying a load or riding uphill. If the FL
YER
e-bike is brought to a standstill from a speed of
greater than 10 km/h, the system can automat
-
ically
 switch back to a congured starting gear.
The starting gear can be set under <Settings>
→<Mye-bike>→<eShift>→<Startinggear>.
15. Bicyclechain/
drivebelt
Bicyclechainmaintenance
Bicycle chains are wearing parts. The degree of
wear varies considerably. Have the chain of your
FLYER regularly checked by your FLYER special
-
ist retailer.
•
Hubgears:approx.3000km
• Chain gears: 1500-2000 km
A worn bike chain/drive belt can break
and cause very serious falls. Worn bicy-
cle chains must therefore immediately
be changed by your FL
YER specialist
retailer.
If the chain/belt drive of your FLYER
E-bike has fallen o󰀨 the chain ring or
sprocket,itisessentialtoswitcho󰀨the
electrical system and remove the battery
before placing the chain back on the
gear wheels.
The chain/belt drive may only be tight-
ened once the electrical system has
been
 switched o󰀨 and the battery has
been removed.
Regularly care for your bicycle chain by cleaning
and greasing it. These measures reduce prema
-
ture wear.
To ensure that the chain and gears can
work safely, the chain must have a cer-
tain level of tension. Chain gear systems
tense the chain automatically
. In the
case of hub gears, chains which are too
loose must be tightened. It might other
-
wise
jumpo󰀨thegearsandleadtoafall.
Tighteningthechainordrivebelt
Loosen the screws A1 on both sides of the
