FMS Fox - Installing Rudder Horns

41
a) Installing the Rudder Horns

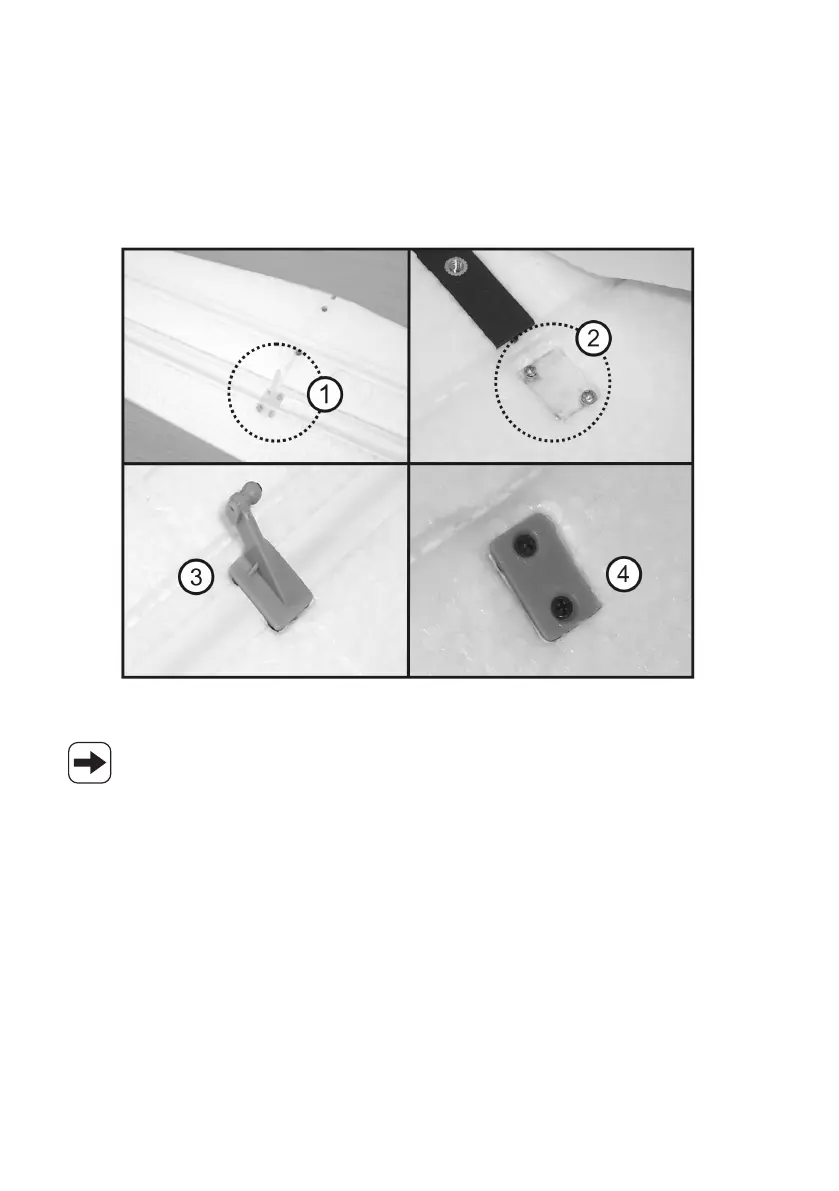

Install the rudder horn at the elevator as shown symbolically in gure 2, items 1 and 2.
For this, insert the rudder horn into the underside of the elevator in the prefabricated indentation (1) and screw them
to the counterplate (2) at the rudder.
Use one screw 1.6 x 10 mm each at the turning point of the rudder and one screw 1.6 x 8 mm at the rear edge of
the rudder.
Figure 2
Install the rudder horns to the rudder aps of the wings and the rudder in the same manner as shown for
the elevators. However, use ball joint rudder horns for this (gure 2. items 3 and 4).
For this, insert the rudder horns into the prefabricated indentations in the rudder aps of the wings (at the
bottom of the rudder aps) and screw them to the respective rudder with a counterplate. For assembly of
the rudder horn at the rudder, use gure 4 for reference.
Use one screw 1.6 x 10 mm each at the turning point of the rudder and one screw 1.6 x 8 mm at the rear
edge of the rudder.
