9. Installing the Wings

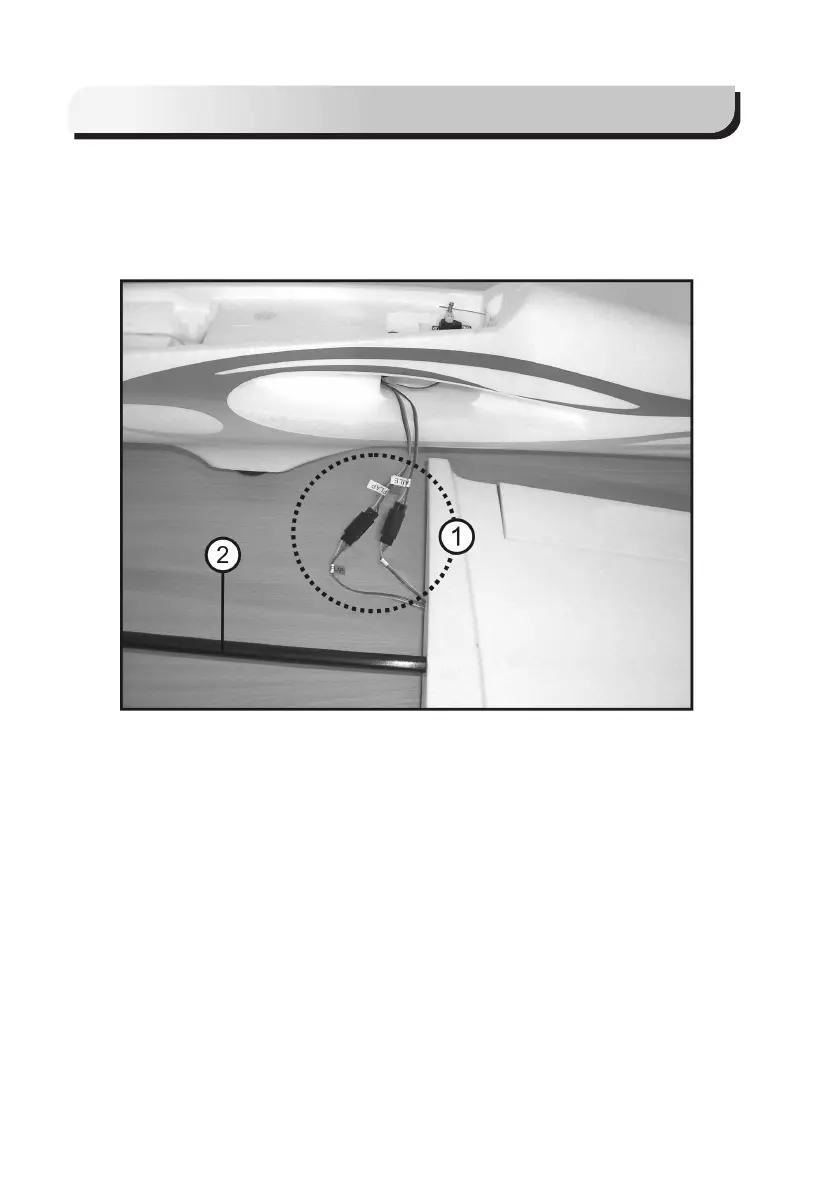

Connect the two servo cables of the wing to the connection cables protruding from the fuselage (1). Observe the
labels of the individual cables and connect them as they belong together and in the correct polarity (observe colo-
ration of the cables). On either side of the fuselage, one cable must protrude with the label „Aile / CH1“ and „Flap /
CH6“ each.
The two wing halves are pushed together with a wing connector (2).
Figure 6
