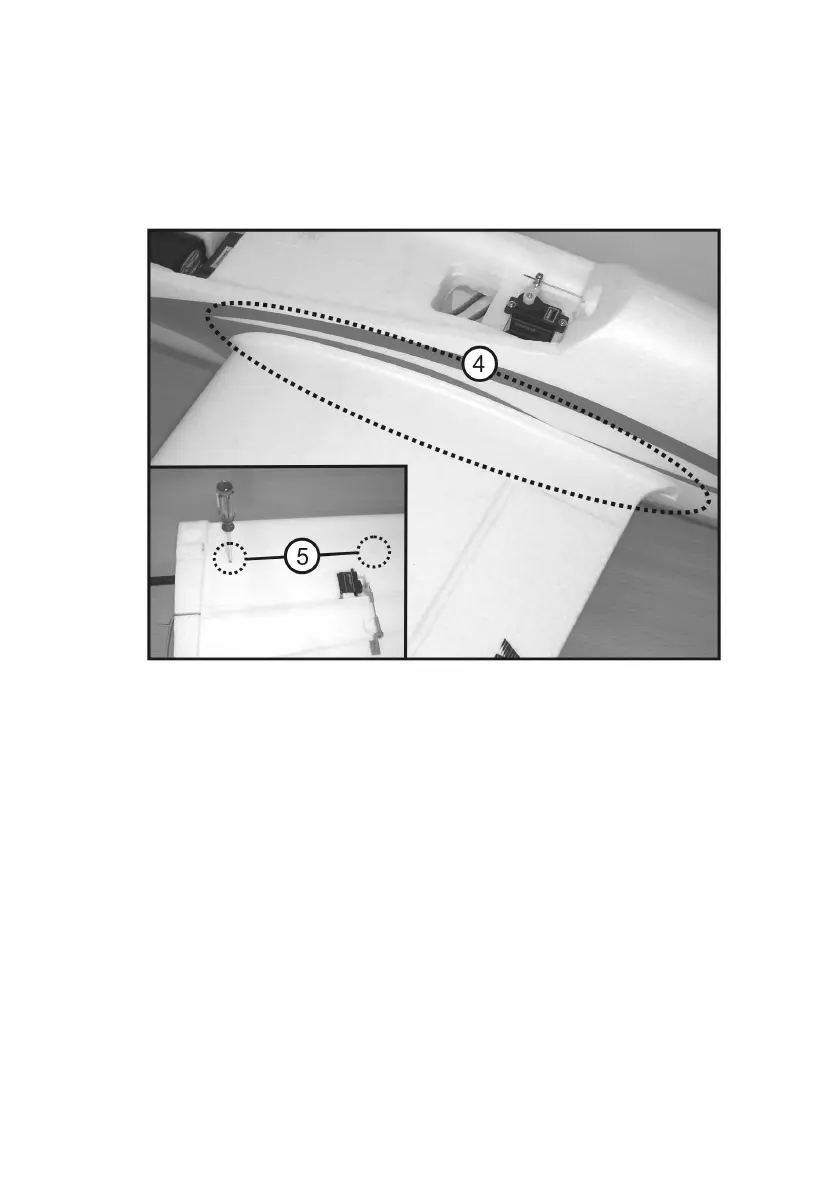

Push the two wings (with the inserted wing connector) into the fuselage shaping until the wing shaping is ush with
the fuselage (4). Observe that no cables are crushed. Cables and connection plugs must be in the middle part of the
fuselage.
Latch the wings at the two wing bottoms with the screws there (5).
Only apply the amount of torque that keeps the wings safely. If the screws are tightened too far, the wing connector
will be damaged and may lose strength.
Figure 7
