d) Installing the Receiver
The scope of delivery does not include the matching radio remote control. Depending on the scope of
function of the radio remote control that is used, two servos must be connected with a Y-cable. The const-
ruction kit contains two such Y-cables. Thus, e.g. both ailerons and both wing aps can be connected with
a Y-cable each and controlled at one receiver output each.
For comfortable, compete use of all control options, we recommend using a computer radio remote control
with 6 or more channels. Also observe the notes in chapter 12.
The receiver (1) is attached to the rear part of the cockpit with hook-and-loop tape or double-sided adhesive tape.
First, connect all cables of the elevator and rudder, the ailerons and the wing aps (2) and the connection cable of
the ight controller (3) to the corresponding receiver outputs. For this, observe the operating instructions of your
remote control system.

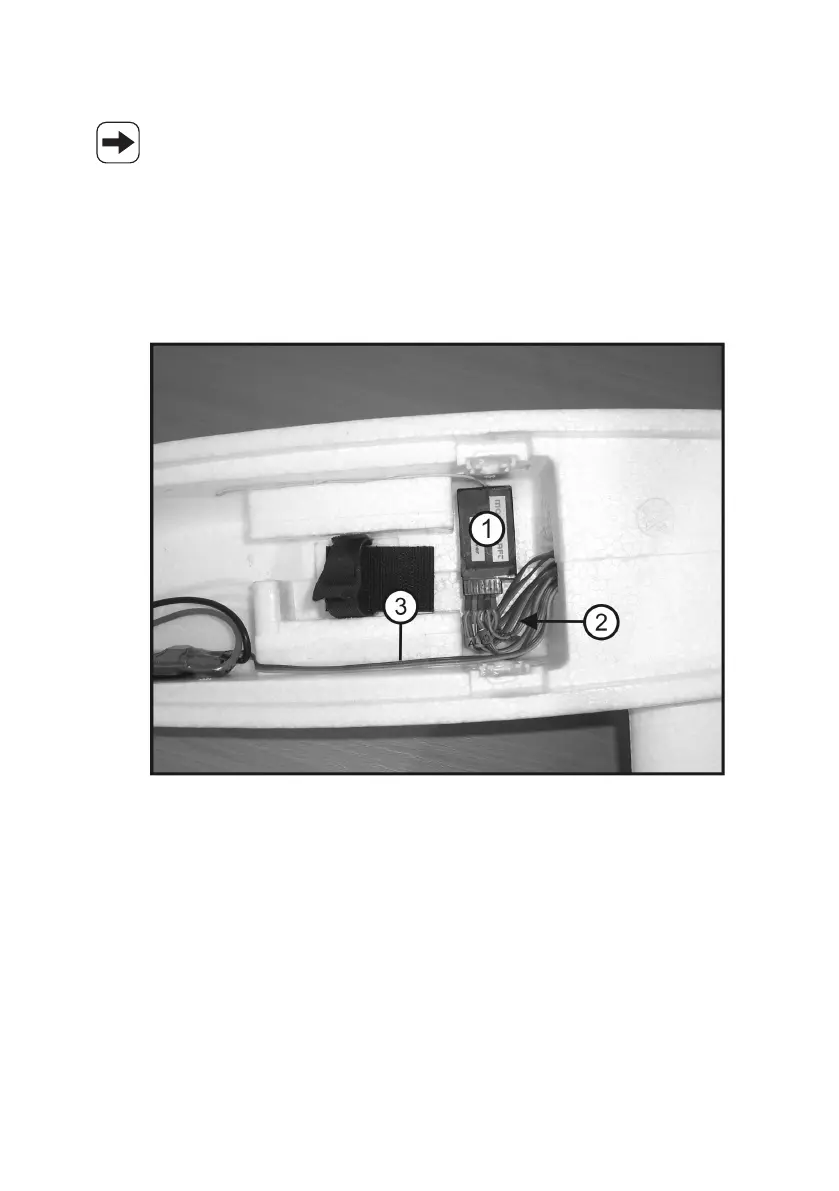

Figure 5
