Quickstart
6 FS-100 Portable DTE Recorder
Physical Description and Basic Controls
Front Panel Controls
LCD Display
This is a backlit, 14 character by 7 line dot matrix display.
Function buttons (A, B, C)
Below the FS-100 LCD display are three user-defined function
buttons: A (left), B (center), and C (right). Use them as short-cut
keys for the most frequently selected functions at the bottom of
the LCD screen. The function of these soft buttons changes,
depending on the options displayed above that specific button.
Refer to the Functions Screen on page 62 for more information.
Recovering LCD Display After A Mild Shock to FS-100
In the event of a mild electrical discharge to the unit, the LCD could go blank.
To correct, hold the SELECT button down for 5 seconds.

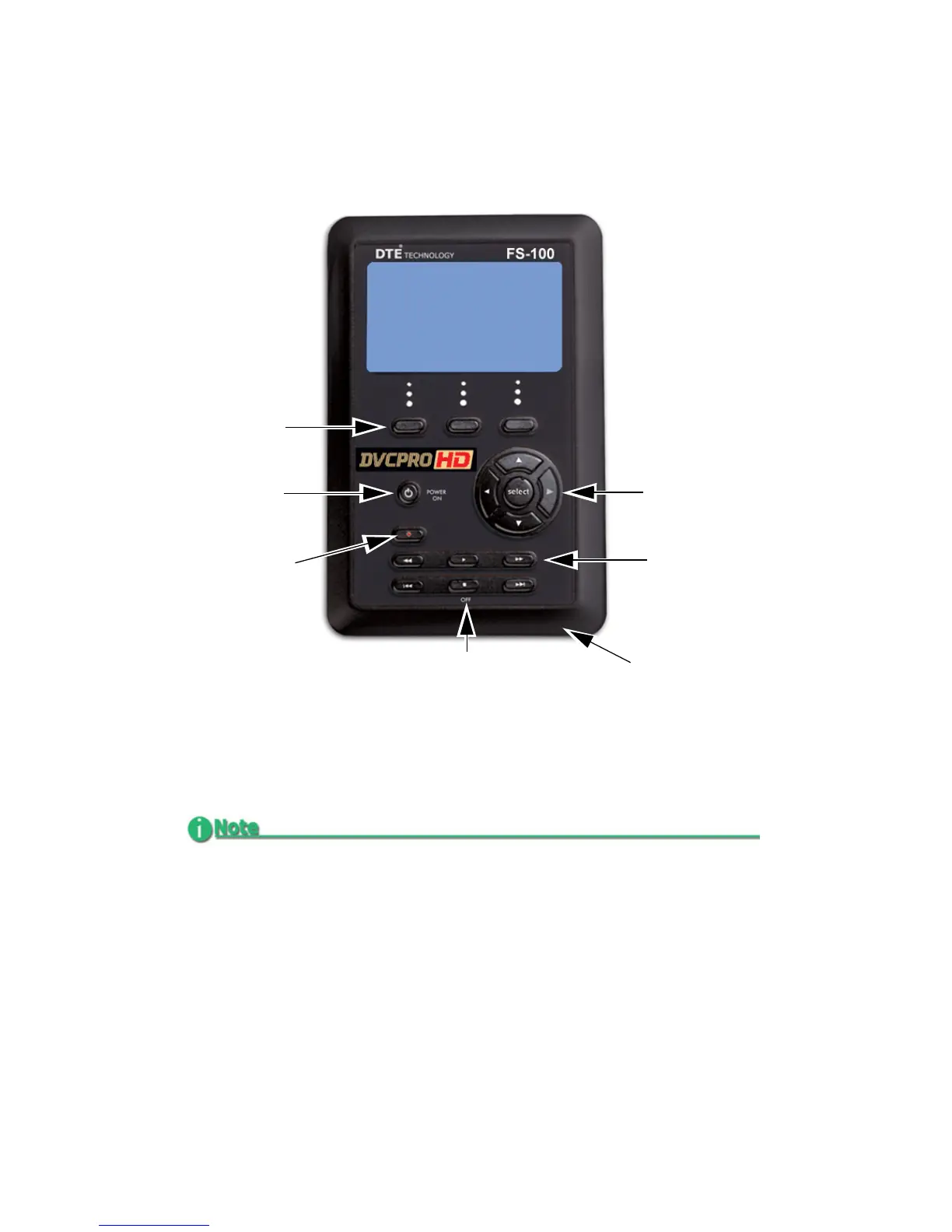

LCD
Display
Function
buttons
A B C
Power OFF
and
Stop button
Speaker
Navigation
buttons
Record
Button
Power ON
and Reset
Button
Transport
Control
buttons
