MR-8HD/CD Owner’s Manual (Using effects)
During recording, you can apply external effects to a sound source connected to an input con-
nector in the [INPUT A] channel.

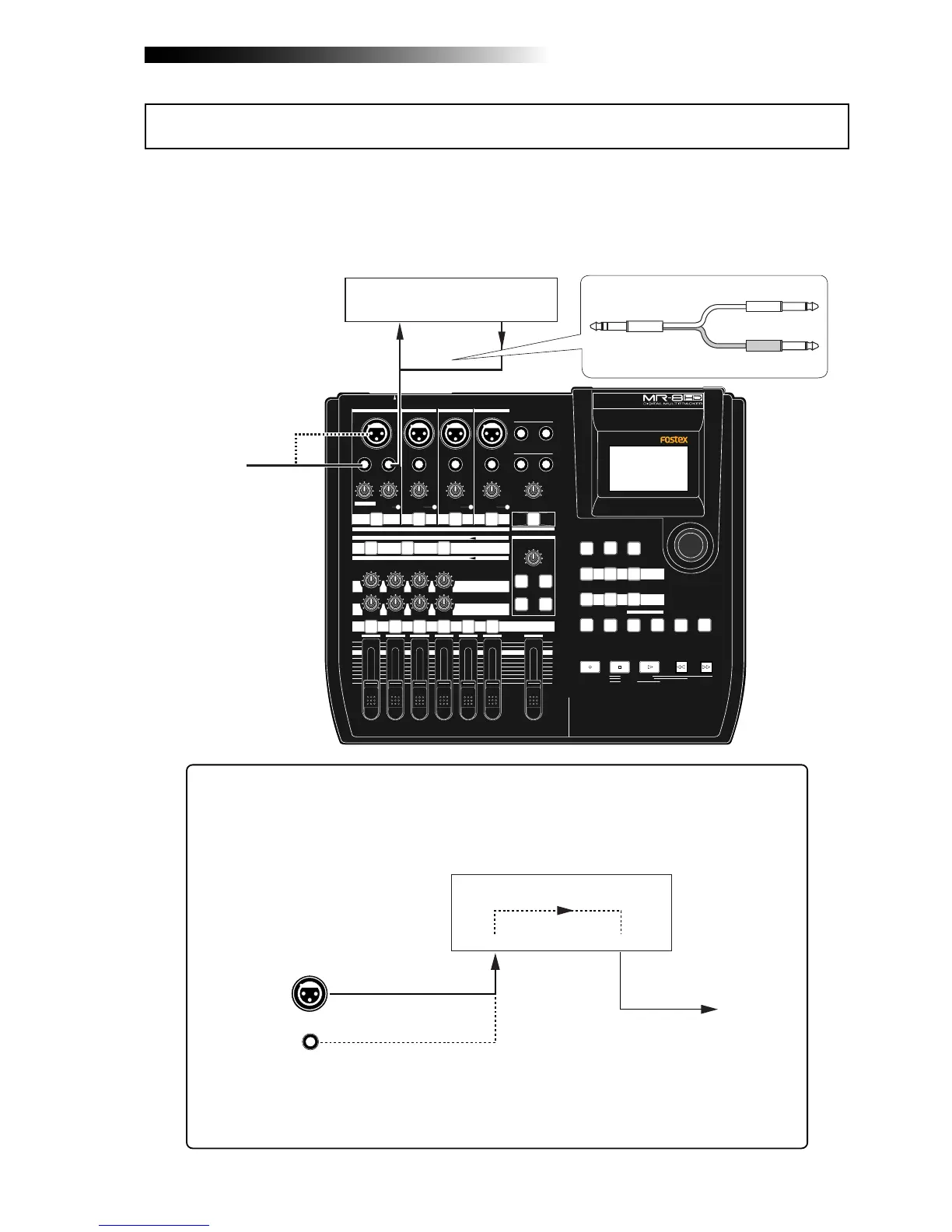

The [INPUT A] channel has the [INSERT] connector (phone jack). You can connects an external
effect unit (typically, a compressor/limiter) to this connector using a Y-cable, as shown below.
MIN MAX
100
LR
100
LR
100
LRRL
MIN
MAX
LINE MIC LINE MIC LINE MIC LINE MIC
REC SELECT
010
1
2
3
4
5/6 MASTER
MAX
MAX
MIN
MIN
7/8
LOCATE REC END
A-B PLAY
LOCATE ABS ZERO
PLAYSTOP
RECORD
REWIND F FWD
GUIDE
RHYTHM
CONTRAST
1-8 >
SONG
NEW
1-6 > 7/8
1-4 > 5/6 STEREO
WAV FILE
BOUNCE
POWERFUL
MASTERING
B / OUT
A / IN
LOCATE
STOREPLAY MODEAUTO PUNCH
NATURAL BRIGHT
TIME BASE
SELECT
UNDO/REDO
7/8 >
MENU / ENTER
SIMULATION
DYNAMIC CONDENSER TUBE
MIC
PAN
EFFECT
REVERB / DELAY TIME
HALL
ROOM
PLATE DELAY
PHONES VOL
L
STEREO OUT
R
2
PHONES
1
MAXMIN
BAL
BALBAL
TRIM
UNBAL
PEAK
TRIM
UNBAL
PEAK
TRIM
UNBAL
PEAK
PEAK
DISTORTION
GUITAR
/GUITAR
INPUT A SELECT
INSERT
BAL
UNBAL
TRIM
INPUT A
INPUT B INPUT C INPUT D
ON/
OFF
POWER
ABC1 DEF2 GHI3
JKL4 MNO5
PQR6 STU7 VWX8 YZ9 +-_0
DELETE
TO STEREO BUSS
EFFECT SEND
ON/
OFF
ON/
OFF
ON/
OFF
60'S COMBO
US METAL
BRIT STACK
AMP
SIMULATION
INPUT A
EFFECTOR (COMP/LIMITER) etc.
Input
Output
Sound source
INPUT A
EFFECTOR
Input
Output
The source (dry) signal fed to the [INPUT A] channel is sent to the external effect
unit connected to the [INSERT] connector and the wet (effect) signal returns to
the [INPUT A] channel. Thus, you can apply effects to the "INPUT A" signal by
connecting an external effect unit.
See the manual of your effect unit for details about how to use it.
A Y-cable is not supplied with the MR-8HD/CD, therefore, purchase an appro-
priate Y-cable available in the market.
Sound
source
Dry (original) sound
Wet (effect) sound
Applying external effects
