Fronius Agilo 75.0-3 - Page 105

103
EN
1

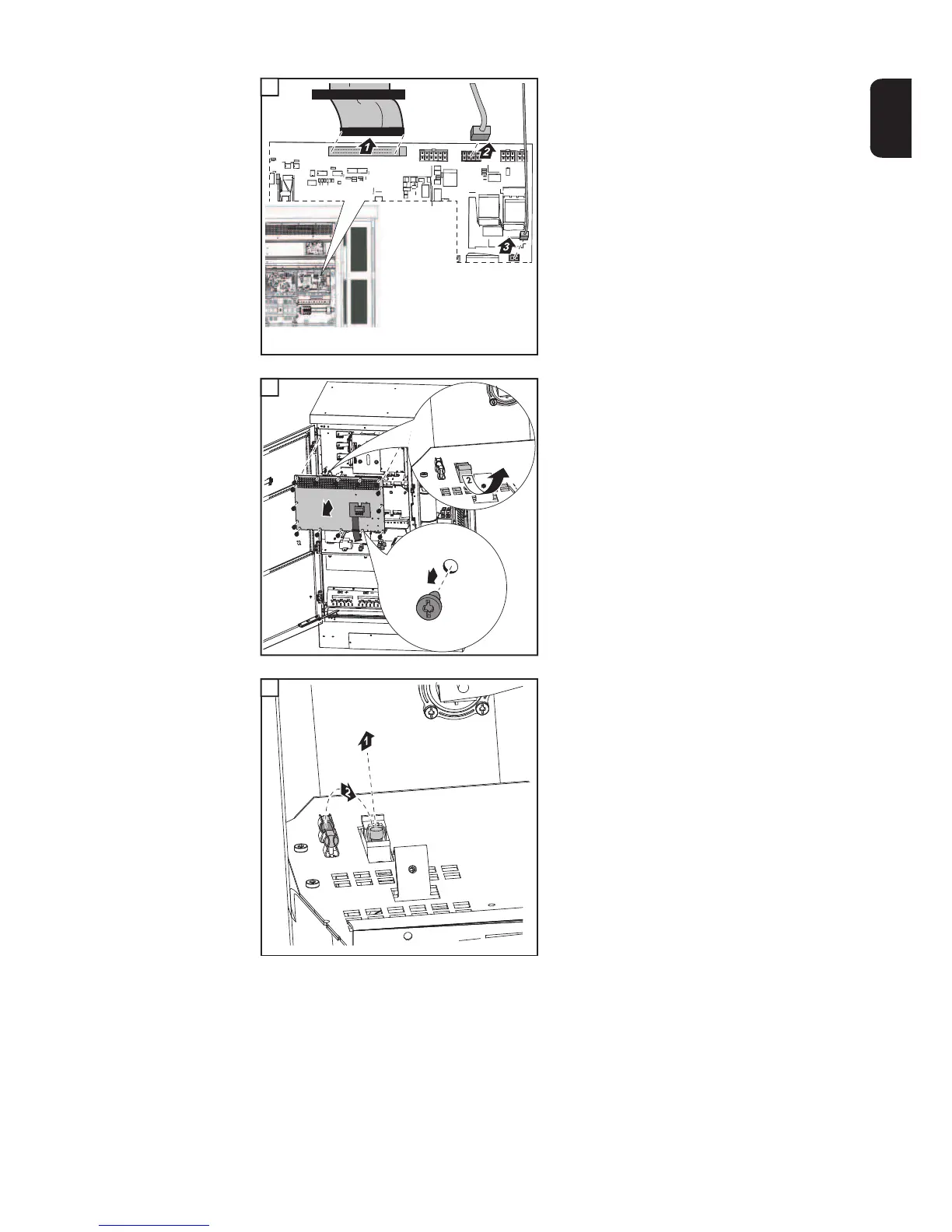

- Unplug the ribbon cable
- Unplug the 8-pin Molex plug (8p)
- Unplug the 2-pin Molex plug (2p)
1
- Remove 16 screws
- Pull out the bottom cover and remove
from the front
- Open the fuse holder
1
- Fit the spare fuse in the fuse holder
8p
2p
2
1
x16
3
4
