Fronius Agilo 75.0-3 User Manual

104
1

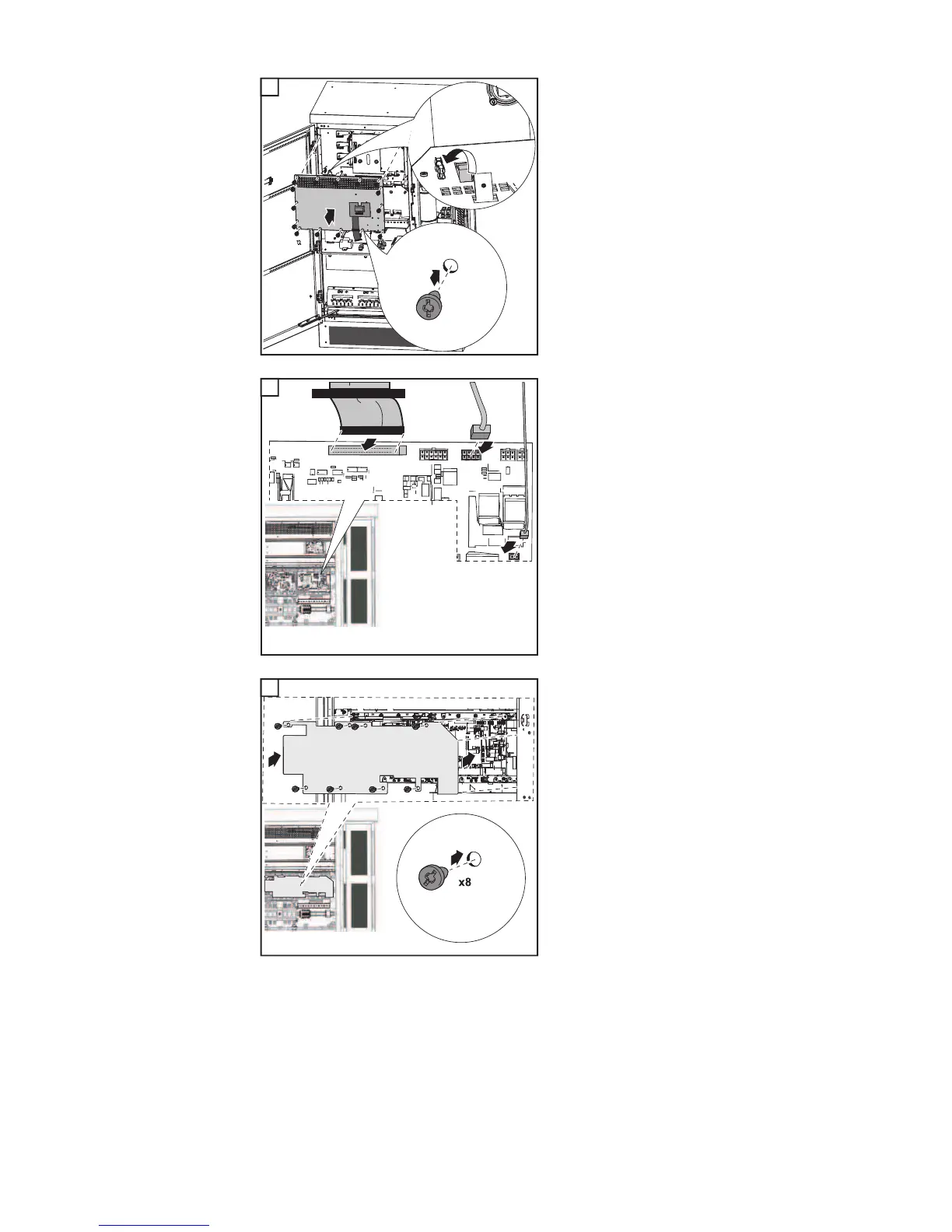

- Close the fuse holder
- Fit the cover
- Fix the cover in place using 16 screws
Tightening torque = 3 Nm
1
- Connect the ribbon cable
- Connect the 8-pin Molex plug (8p)
- Connect the 2-pin Molex plug (2p)
1
- Fit the contact protection above the
data communication area
x16
1
2
5
8p
2p
2
1
3
6
1
1
2
7
