Fronius Personal Display DL - Functional Principle

48
In addition to inverters, the Fronius Personal Display DL can also be operated in conjunc-
tion with a Fronius Personal Display DL Box with the following DATCOM components:
- 1 x Fronius Power Control Box
- 1 or more Fronius String Control(s)
- 1 x Fronius Sensor Card / Box (assigned no. 1)
- 1 x Fronius Public Display (assigned no. 1)
Utilization in ac-
cordance with
"intended pur-
pose"
The Fronius Personal Display DL is designed only for use in photovoltaic systems with a
Fronius inverter.
Any other purpose does not constitute intended use.
The manufacturer shall not be liable for any damage resulting from such improper use. In-
tended use also includes following all information from the operating instructions.
Functional princi-
ple

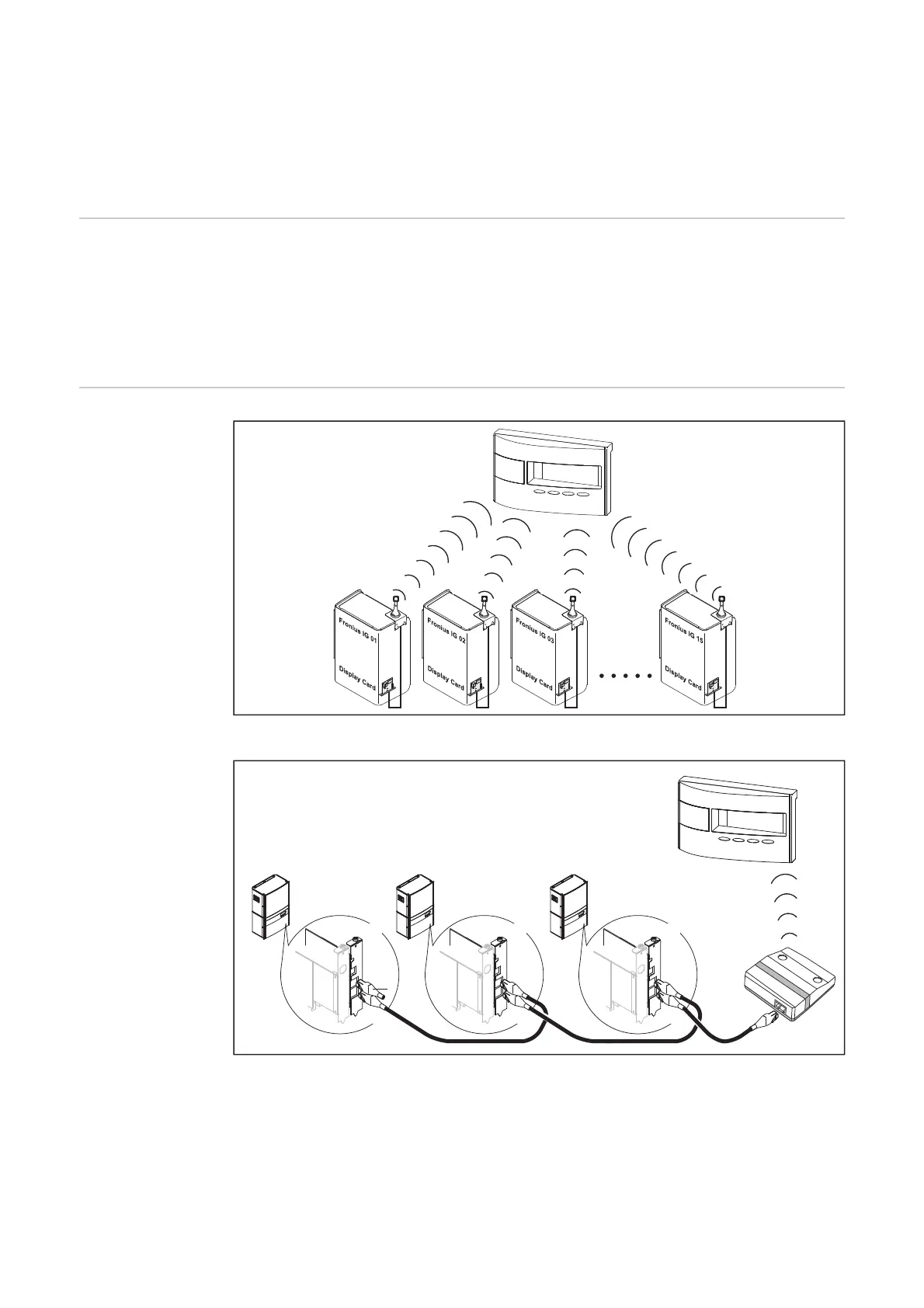

Example: Fronius IG with Fronius Personal Display Card
Example: Fronius IG Plus with Fronius Com Card and Fronius Personal Display DL Box (* = termination plug)
IN
*
OUT
...
Fronius IG Plus 1 Fronius IG Plus 2 Fronius IG Plus 15
Com Card
IN
OUT
Com Card
IN
OUT
Com Card
Fronius Personal
Display DL Box
IN
