50
Operating controls and connections
General
The Fronius Personal Display DL can be used to display power data for the entire system
as well as for each individual inverter. The menu control is mostly identical to that of the
inverter.
Operating con-
trols and connec-
tions
NOTE! Because of firmware updates, certain functions may be available for your
device but not described in these operating instructions or vice versa. In addition,
individual figures may also differ slightly from the operating elements of your de-
vice. However, the function of these operating elements is identical.

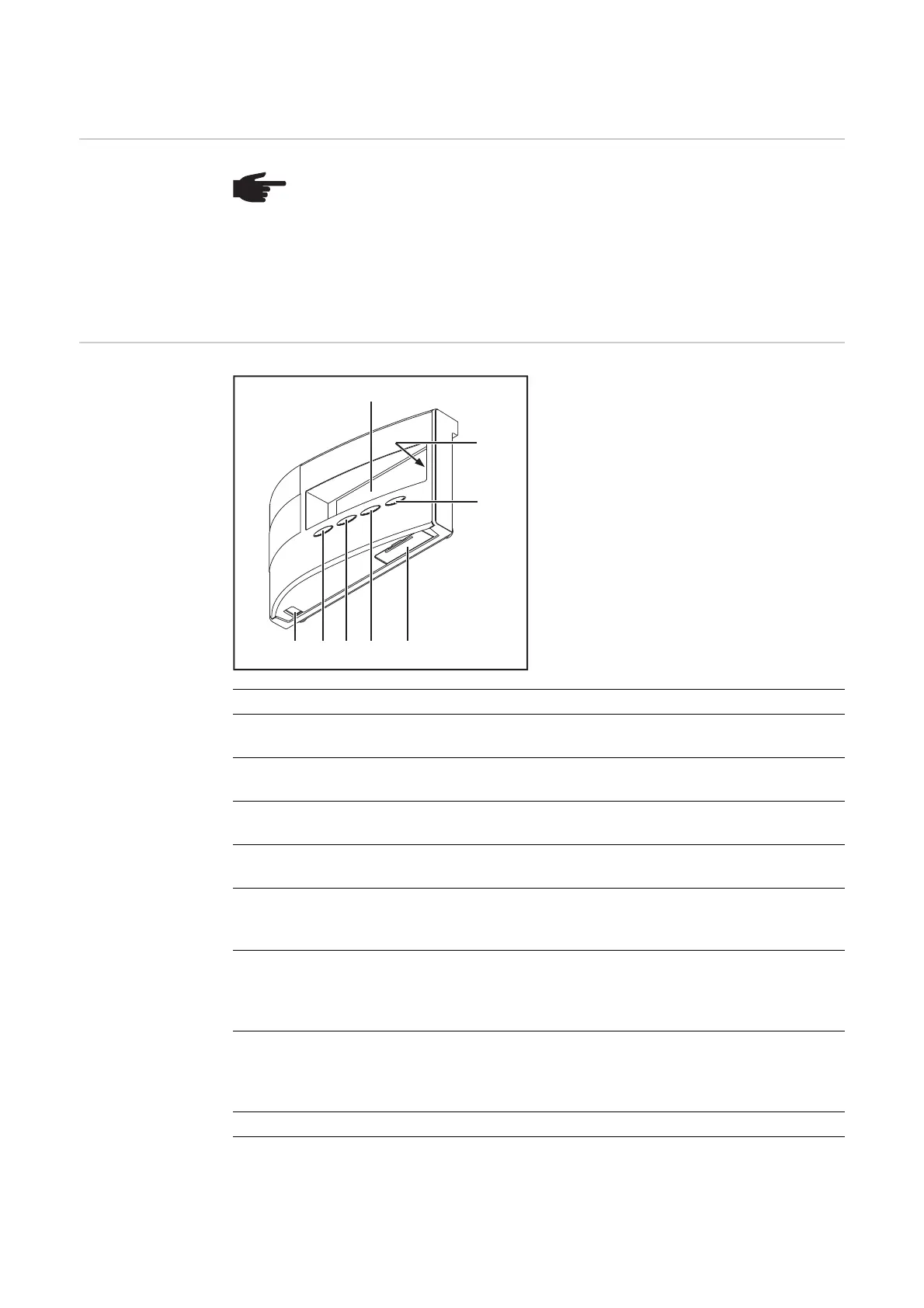

(1)
(2)
(3)
(4)(5)(6)(7)(8)
Item Description
(1) Display
for displaying values, settings and menus
(2) Operating status LED
for displaying the operating status
(3) 'Enter' key
for confirming a selection
(4) Battery compartment with cover
for battery insertion to supply power
(5) 'Menu/Esc' key
for switching to the menu level
for exiting the Setup menu
(6) 'Down/Right' key
depending on the selection:
for navigating down
or to the right
(7) 'Left/Up' key
depending on the selection:
for navigating left
or up
(8) USB connection (Micro-USB)
