Fronius Personal Display DL - Antenna Installation and Connection

54
+
Fronius IG Indoor / Fronius IG Plus / Fronius IG 300 - 500 / Fronius CL inverters
IMPORTANT The mounting bracket is part of the antenna. Only fit the antenna to the
mounting bracket supplied with the antenna.

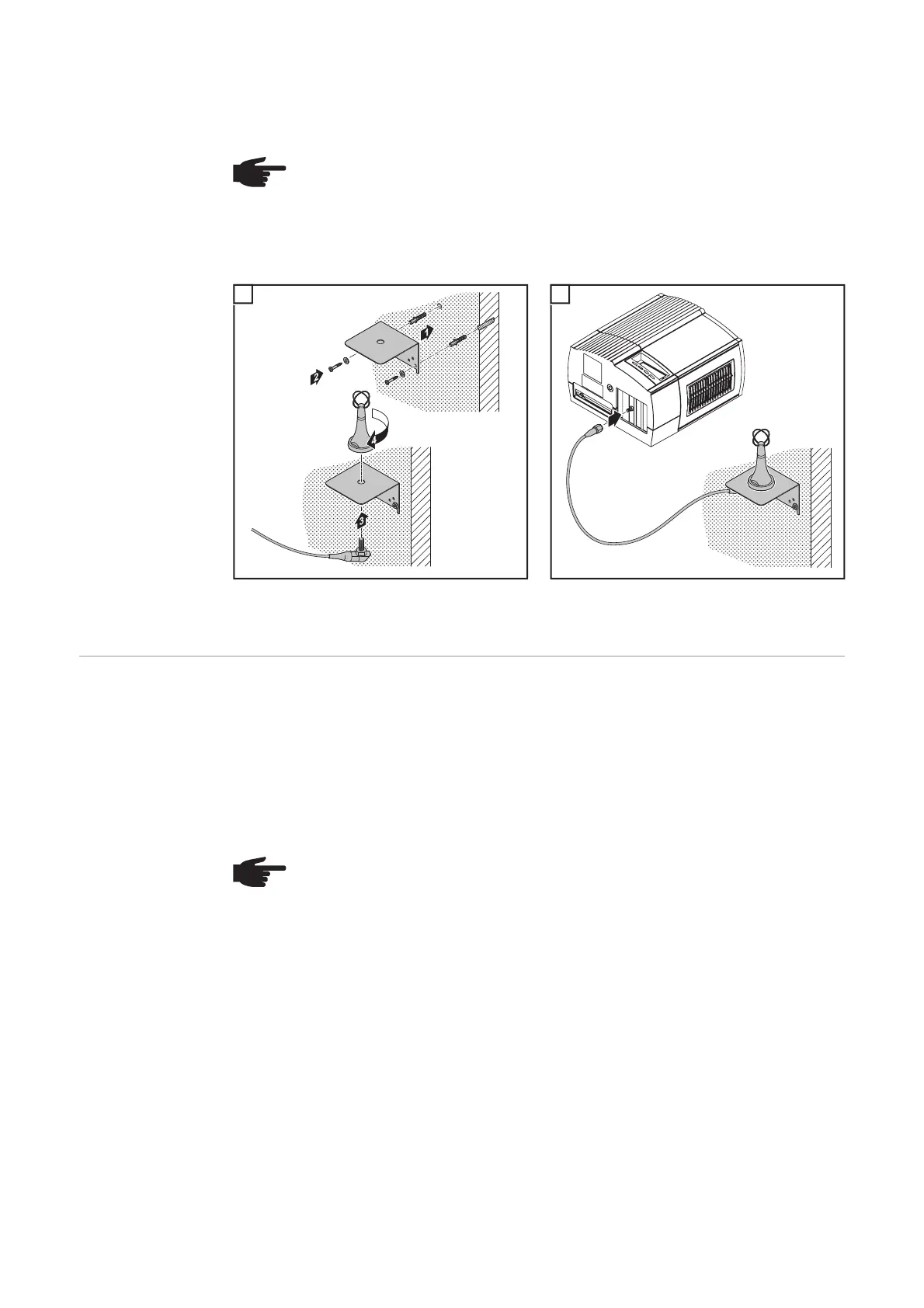

Attaching the antenna to the wall Connecting the antenna cable to the inverter (e.g., to
the Fronius IG Indoor)
Installing and
connecting the
antenna to the in-
verter
The following steps only apply to the following system configurations:
Fronius Personal Display DL
+
Fronius Personal Display Card
+
Fronius IG Outdoor inverter
IMPORTANT The mounting bracket is part of the antenna. Only fit the antenna to the
mounting bracket supplied with the antenna.
NOTE! For systems with several inverters, antennas must be at least 0.5 m apart
so that communication with the Fronius Personal Display DL is not disrupted. For
an optimal range, we recommend a distance of 1 m.
1
1
2
NOTE! For systems with several inverters, antennas must be at least 0.5 m apart
so that communication with the Fronius Personal Display DL is not disrupted. For
an optimal range, we recommend a distance of 1 m.
