2

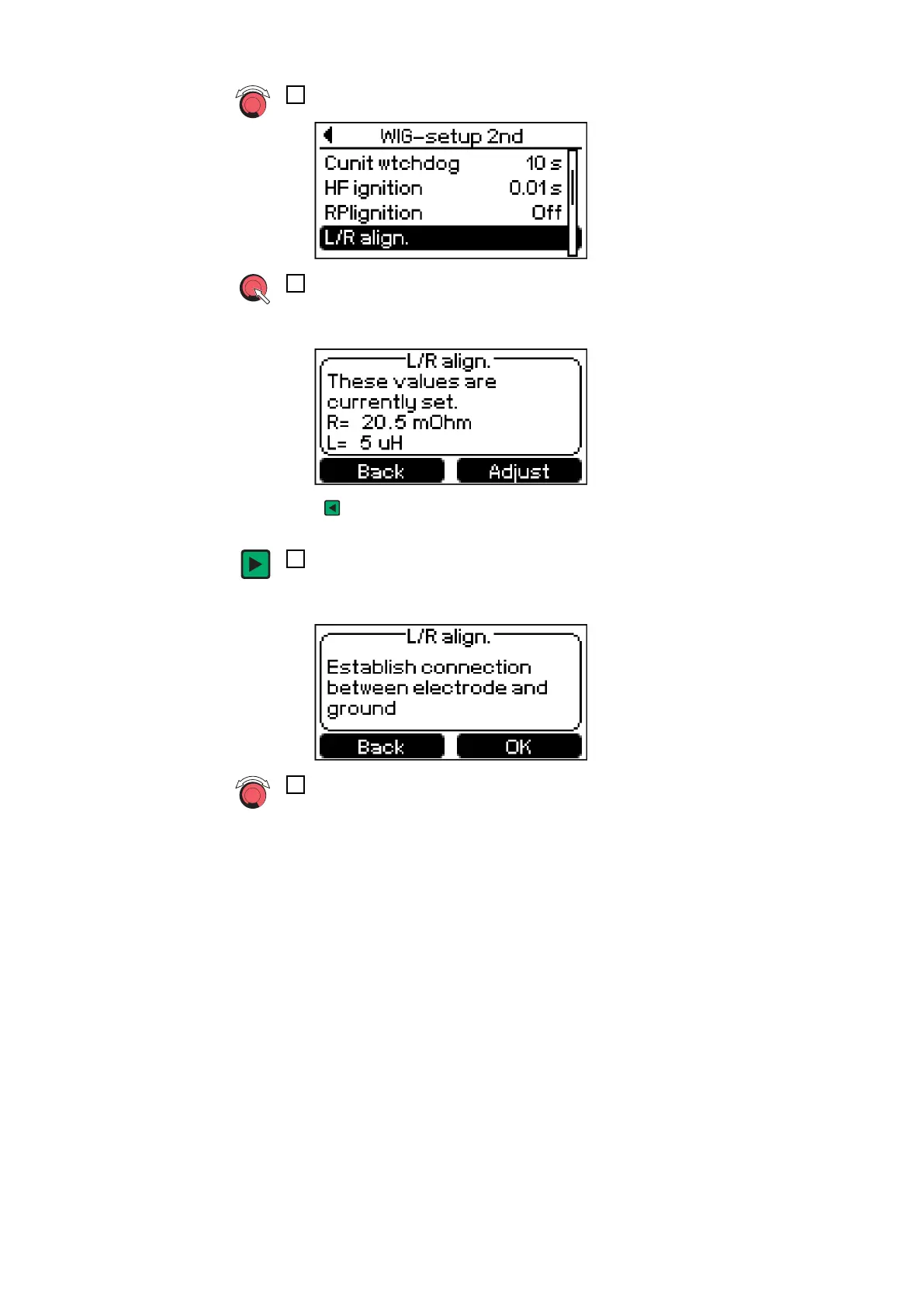

Select "L/R align." by turning the adjusting dial:
3
Press the adjusting dial
The first L/R alignment screen is displayed:
In the following L/R alignment screens, pressing the left button takes
you back to the previous screen.
4
Press the right arrow key
The second L/R alignment screen is displayed:
5
Follow the instructions shown
IMPORTANT! Make sure that the contact between the earthing clamp and
the workpiece and electrode and workpiece is on a cleaned section of the
workpiece.
While the measurement is being performed, the cooling unit and the cold
wirefeeder are deactivated.
During manual metal arc welding, place the electrode holder instead of the
tungsten electrode fully on the workpiece.
178
