Fronius TransTig 2200 User Manual

MagicWave
4000 / 5000 Com-
fort
MagicWave 4000
(1)
(2)
(3)
(4)
(5)
(6)

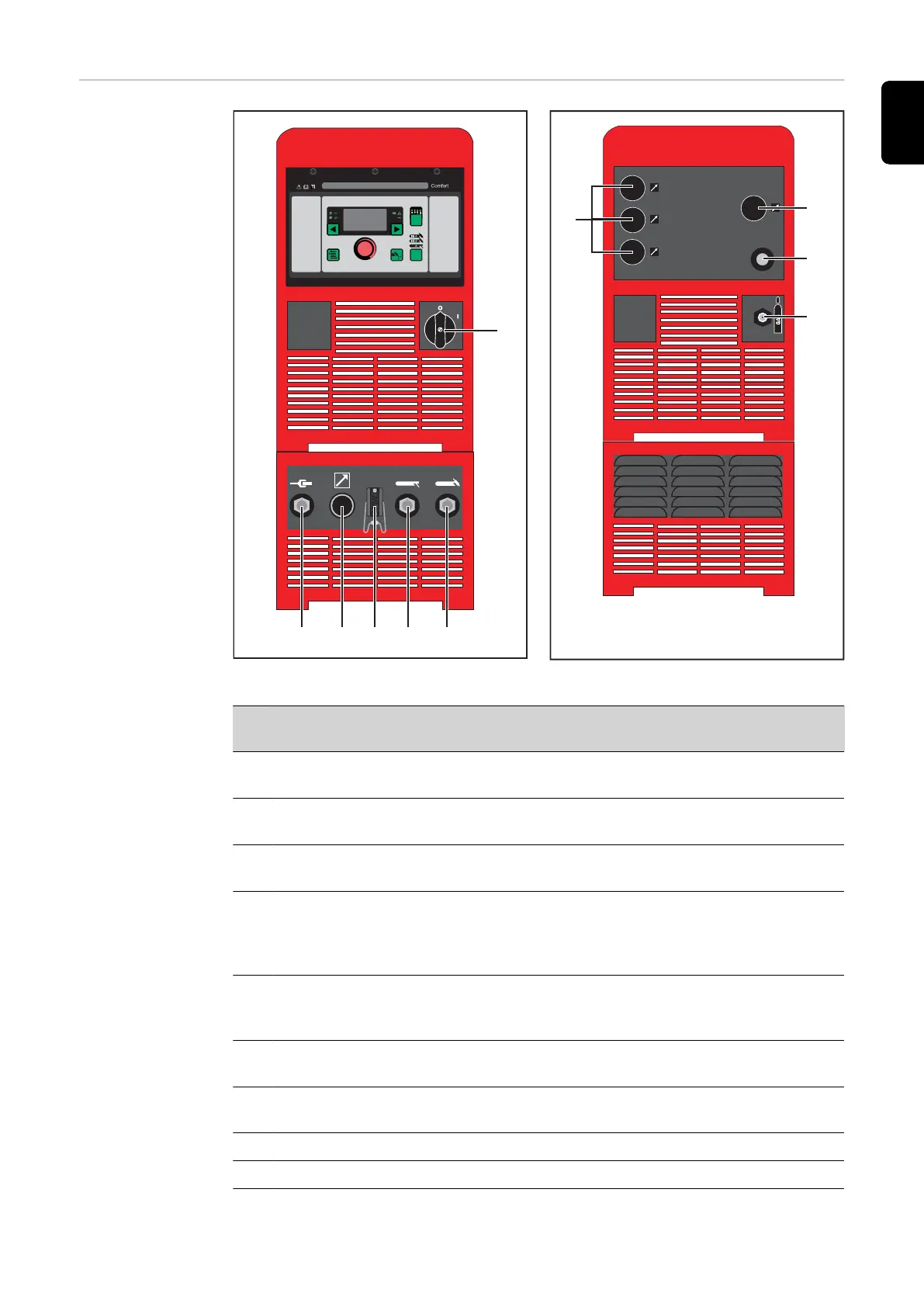

MagicWave 4000 / 5000 Comfort - front
(7)
(7)
(8)
(9)
MagicWave 4000 / 5000 Comfort - rear
No
.
Function
(1) Mains switch
to switch the power source on and off
(2) Welding torch connection
for connecting the TIG welding torch
(3) Electrode holder connection
for connecting the electrode cable for manual metal arc welding
(4) Torch control connection
- for connecting the control plug of a conventional welding torch
- input for the collision protection signal when a robot interface or field bus
coupler is connected
(5) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, Job-
Master TIG welding torch, etc.)
(6) Grounding cable connection
for connecting the grounding cable
(7) Blanking covers
reserved for LocalNet connection
(8) Mains cable with strain relief device
(9) Shielding gas connection
31
EN
