Description of the control panels
General
NOTE!
Due to software updates, you may find that your device has certain functions that
are not described in these operating instructions or vice versa.
Individual illustrations may also differ slightly from the actual controls on your device, but
these controls function in exactly the same way.
Safety
WARNING!
Danger from incorrect operation.
Possible serious injury and damage to property.
▶
Do not use the functions described here until you have read and completely under-
stood these Operating Instructions.
▶
Do not use the functions described here until you have fully read and understood all
of the Operating Instructions for the system components, in particular the safety
rules!

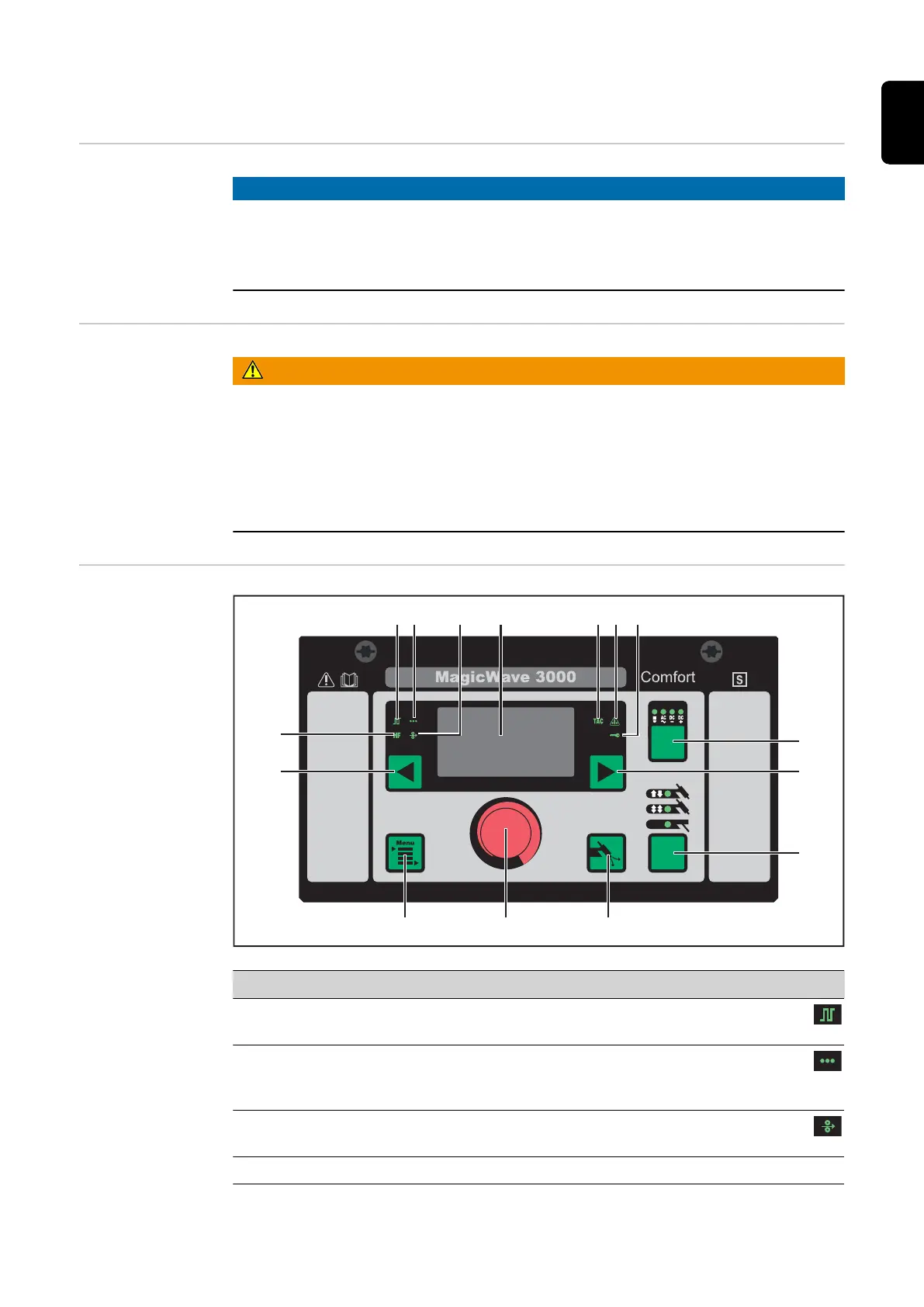

MagicWave
Comfort control
panel
(3)
(12)
(6)
(9)
(1)
(11)
(10)
(4)
(14)
(13)
)5()2(
(8)
(7)
(15)
No. Function
(1) Pulse indicator
lights up when the F-P set-up parameter has been set to a pulse frequency
(2) Spot welding indicator
lights up when the SPt set-up parameter has been set to a spot welding
time
(3) Cold wire-feed unit indicator
lights up when a cold wire-feed unit is connected
(4) Display
25
EN
