Connections, switches and mechanical compon-
ents
MagicWave
2200 Comfort
(1)
(2)
(3)
(4)
(5)

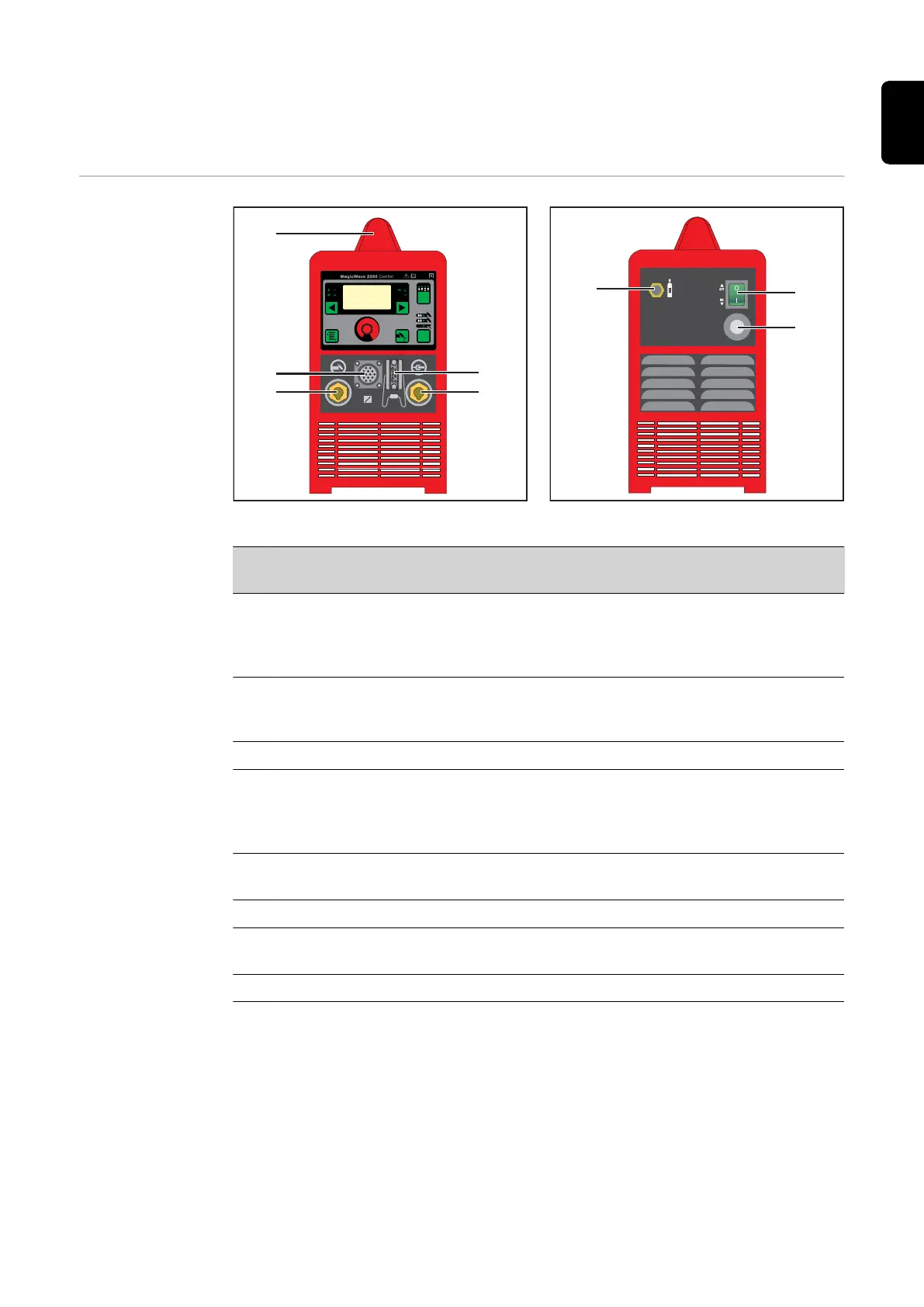

MagicWave 2200 Comfort - front
(6)
(7)
(8)
MagicWave 2200 Comfort - rear
No
.
Function
(1) Welding torch connection
for connecting:
- the TIG welding torch
- the electrode cable for manual metal arc welding
(2) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, Job-
Master TIG welding torch, etc.)
(3) Handle
(4) Torch control connection
- for connecting the control plug of a conventional welding torch
- input for the collision protection signal when a robot interface or field bus
coupler is connected
(5) Grounding (earthing) cable connection
for connecting the grounding (earthing) cable
(6) Shielding gas connection
(7) Mains switch
for switching the power source on and off
(8) Mains cable with strain relief device
29
