6.4 Selecting Options
6-21
Chap. 6 SELECTING PERIPHERAL EQUIPMENT
6.4.2 Options for operation and communications
[ 1 ] External potentiometer for frequency setting
An external potentiometer may be used to set the drive frequency. Connect the potentiometer to control
signal terminals [11] to [13] of the inverter as shown in Figure 6.14.
Model: RJ-13 (BA-2 B-characteristics, 1 k
:
)
Model: WAR3W (3W B-characteristics, 1 k
:
)

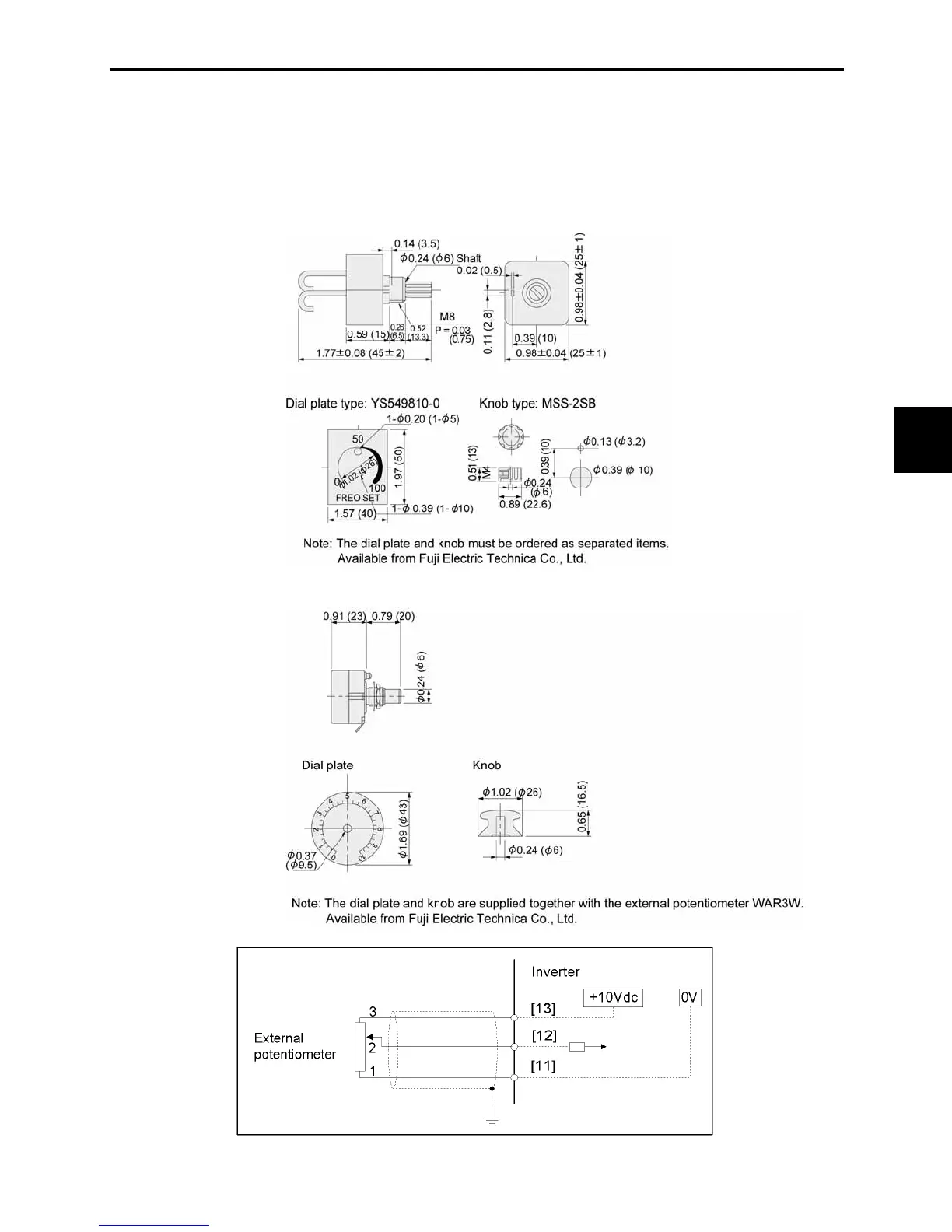

Figure 6.14 External Potentiometer Dimensions and Connection Example
[Unit : inch (mm)]
[Unit : inch (mm)]
