7-4
7.1.2 Selection procedure
Figure 7.3 shows the general selection procedure for optimal inverters. Items numbered (1) through (5) are
described on the following pages.
You may easily select inverter capacity if there are no restrictions on acceleration and deceleration times.
If "there are any restrictions on acceleration or deceleration time" or "acceleration and deceleration are
frequent," then the selection procedure is more complex.

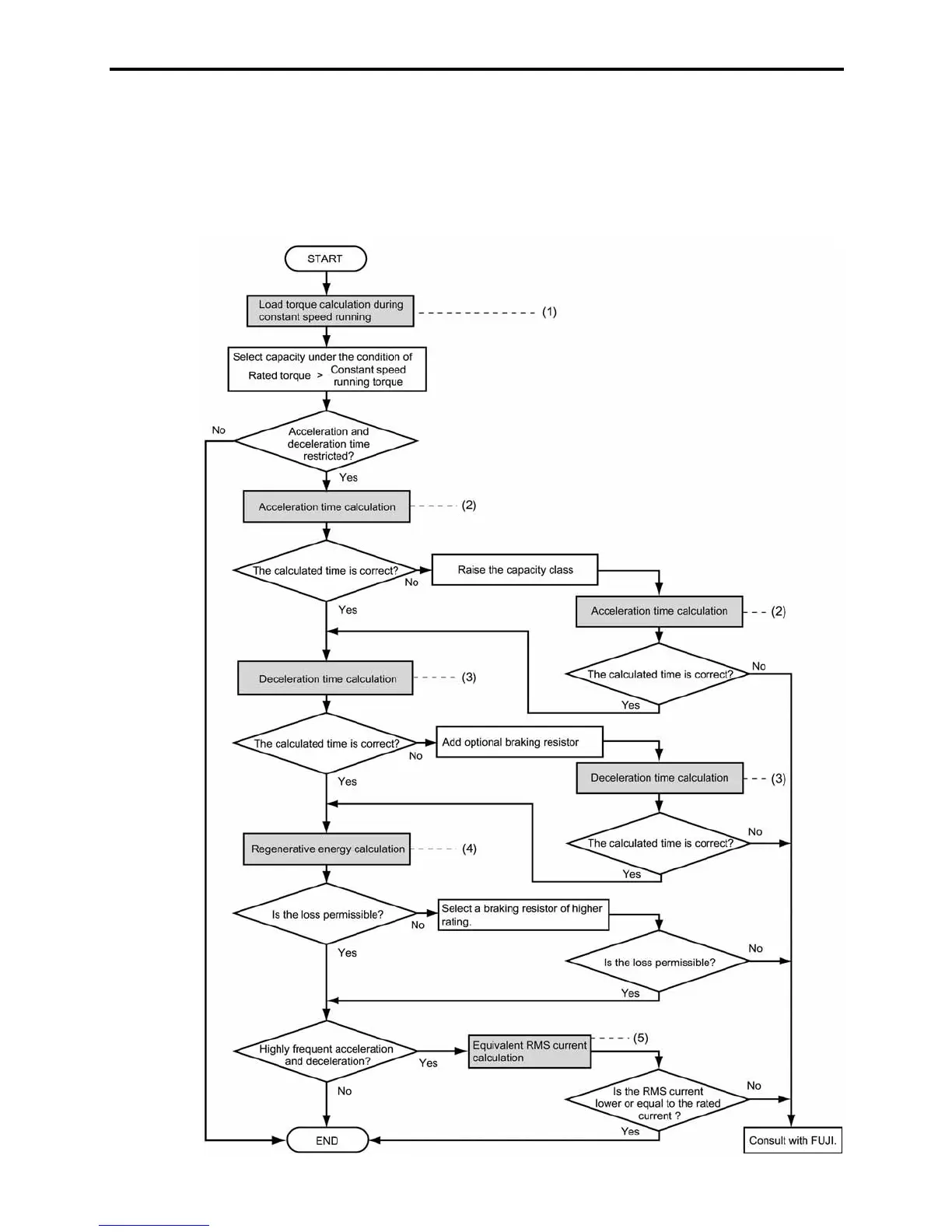

Figure 7.3 Selection Procedure
