1.3 Recommended Configuration
1-9
Chap. 1 INTRODUCTION TO FRENIC-Mini
1.3 Recommended Configuration
To control a motor with an inverter correctly, you should consider the rated capacity of both the motor and
the inverter and ensure that the combination matches the specifications of the machine or system to be
used. Refer to Chapter 7, "SELECTING OPTIMAL MOTOR AND INVERTER CAPACITIES" for
details.
After selecting the rated capacity, select appropriate peripheral equipment for the inverter, then connect
them to the inverter.
Refer to Chapter 6, "SELECTING PERIPHERAL EQUIPMENT" and Chapter 8, Section 8.7
"Connection Diagrams" for details on the selection and connection of peripheral equipment.
Figure 1.9 shows the recommended configuration for an inverter and peripheral equipment.

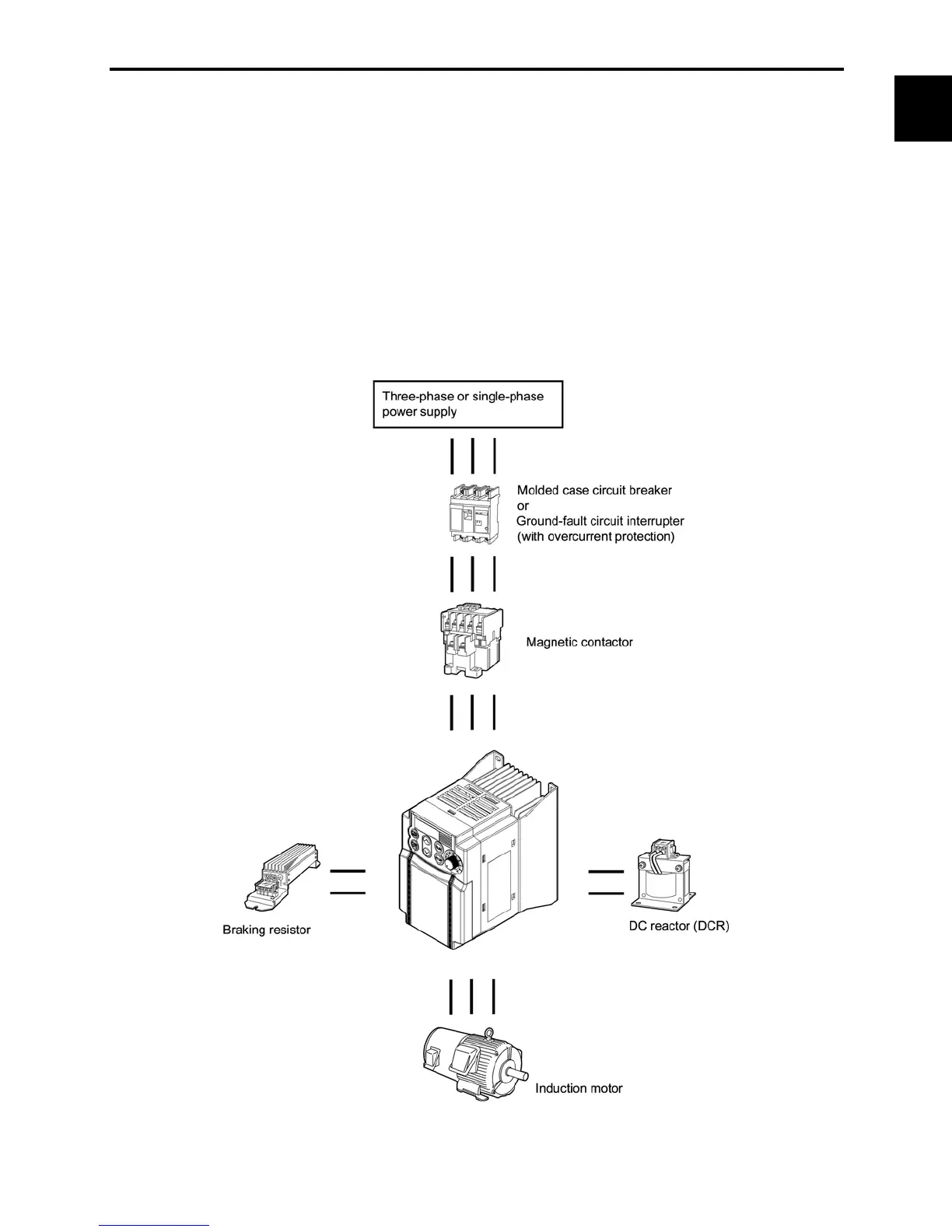

Figure 1.9 Recommended Configuration Diagram
