6.4.3 Extended installation kit options
[ 1 ] Mounting adapters
FRENIC-Mini series of inverters can be installed in the control board of your system using mounting
adapters which utilize the mounting holes used for conventional inverters (FVR-E11S series of 1 HP or
below or 5 HP. The FVR-E11S-2/4 (2 HP/3 HP) and FVR-E11S-7 (1 HP/2 HP) models may be replaced
with the FRENIC-Mini series inverters without the use of adapters.

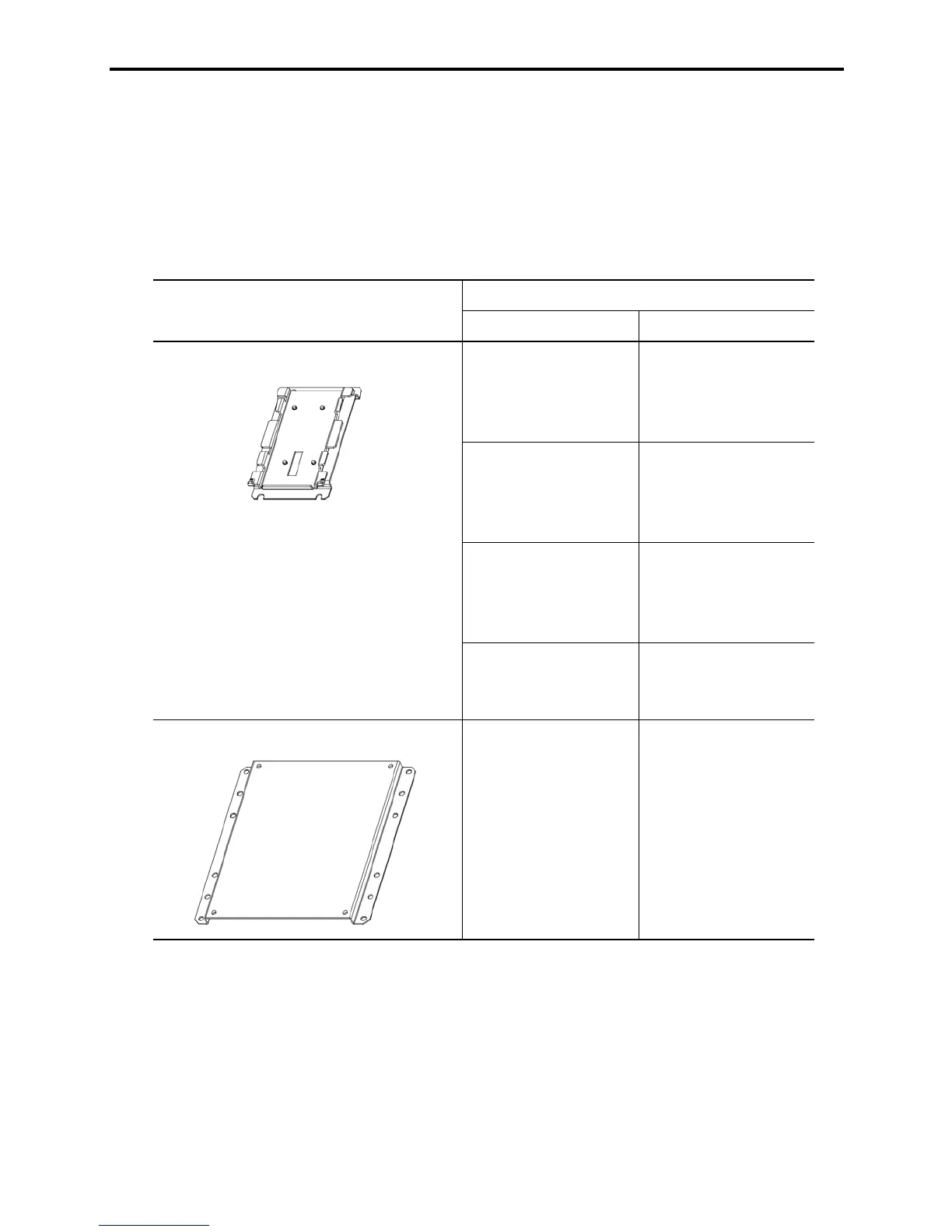

Table 6.16 Mounting Adapters
Applicable inverter model
Option model
FRENIC-Mini FVR-E11S
FRNF12C1S-2U**
FRNF25C1S-2U**
FRNF50C1S-2U**
FRN001C1S-2U**
FVRF12E11S-2U
FVRF25E11S-2U
FVRF50E11S-2U
FVR001E11S-2U
FRNF12C1S-7U
FRNF25C1S-7U
FRNF50C1S-7U
FRN001C1S-7U
FVRF12E11S-7U
FVRF25E11S-7U
FVRF50E11S-7U
FRNF12C1E-2U
FRNF25C1E-2U
FRNF50C1E-2U
FRN001C1E-2U
FVRF12E11S-2U
FVRF25E11S-2U
FVRF50E11S-2U
FVR001E11S-2U
MA-C1-0.75
FRNF12C1E-7U
FRNF25C1E-7U
FRNF50C1E-7U
FVRF12E11S-7U
FVRF25E11S-7U
FVRF50E11S-7U
MA-C1-3.7
FRN005C1S-2U**
FRN005C1S-4U**
FRN003C1S-7U
FVR005E11S-2U
FVR005E11S-4U
FVR003E11S-7U
Note 1: Asterisks (**) in the model names replace numbers which denote the following:
21: braking resistor built-in type; No number: standard type
The built-in braking resistor models are available for inverters of 2 HP or higher.
