3.3 Programming Mode
3-25
Chap. 3 OPERATION USING THE KEYPAD

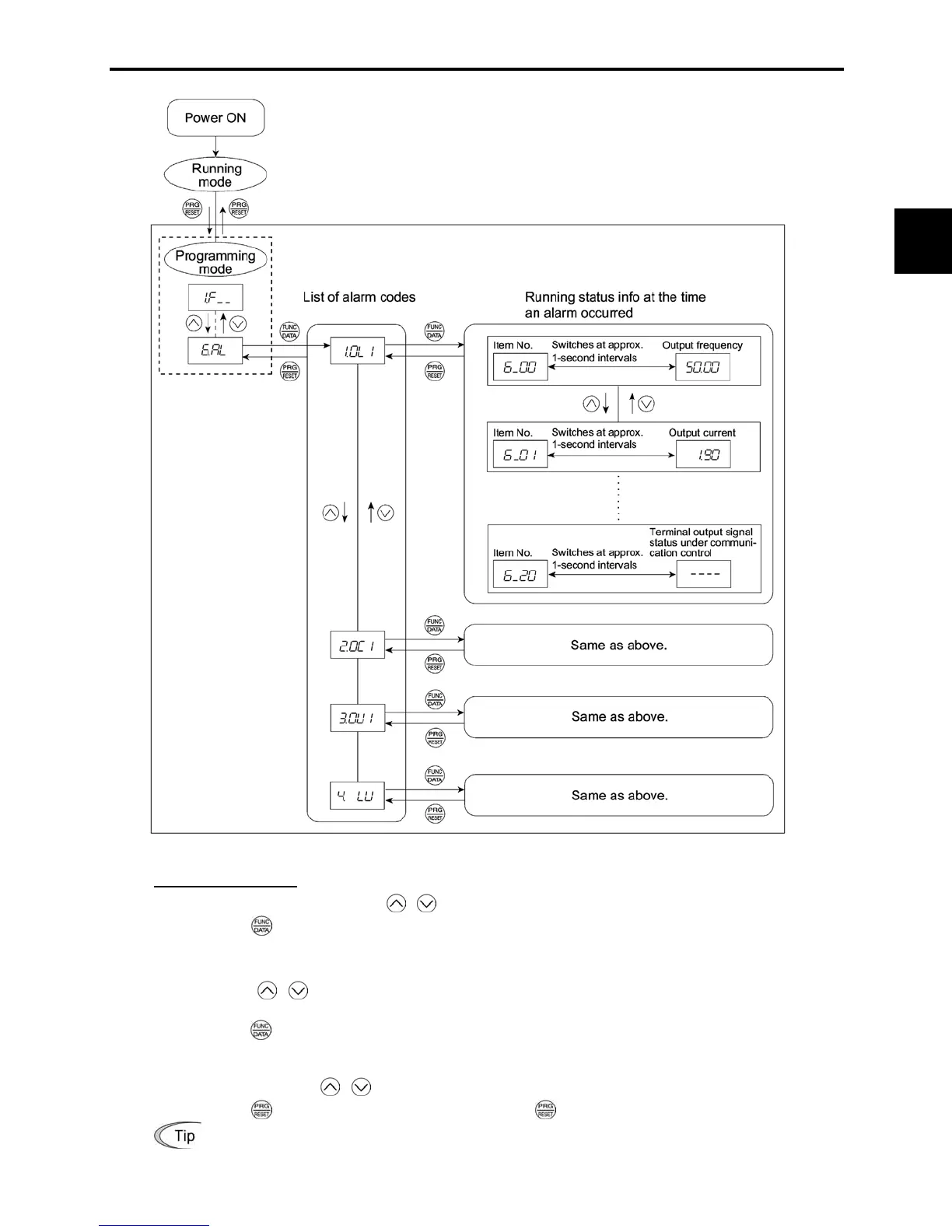

Figure 3.10 Status Transition of Alarm Information
Basic key operations
(1) With the menu displayed, use
/ keys to select "Alarm information" (
.
CN
).
(2) Press the
key to display the alarm list code (e.g.
.
N
).
In the list of alarm codes, the alarm information for the last 4 alarms will be saved as an alarm
history.
(3) Each time
/ keys are pressed, the last four alarms are displayed in order from the most recent
one as "
," "
," "
" and "
."
(4) Press the
key while the alarm code is displayed, and the corresponding alarm item number (e.g.
A
) and data (e.g. Output frequency) will be displayed continuously in turn for 1 second each.
It is possible to display the item number (e.g.
A
) and data (e.g. Output current) for each
desired alarm using
/ keys.
(5) Press the
key to return to the alarm list. Press the key again to return to the menu.
If the menu cannot switch to any other one, set function code E52 to 2 (Full-menu mode).
