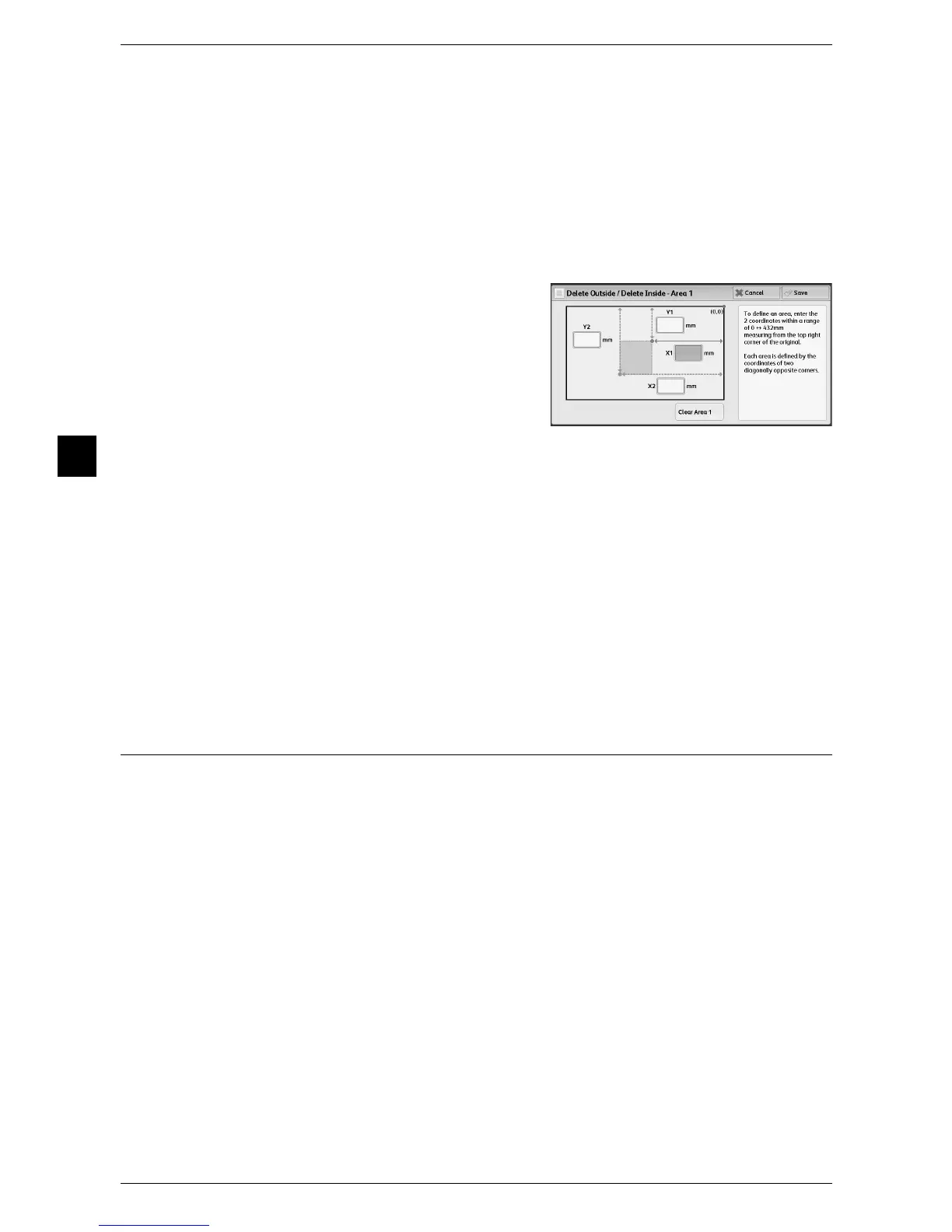

[Delete Outside/Delete Inside - Area 1 (Area 2 or Area 3)] Screen
This screen allows you to specify the area to be deleted. The area is defined by the
rectangle formed between the points X1,Y1 and X2,Y2. The origin point is the top right
corner of a document.
You can specify a value in the range from 0 to 432 mm for the width (X) and the length
(Y) in 1 mm increments.
Note • Specify the 2 coordinates from the top right corner of the document.
• When specifying multiple areas, the specified areas can overlap each other.
• When [Reduce/Enlarge] is set, the specified area will be reduced or enlarged accordingly.
1 Select [Area 1], [Area 2], or [Area 3].
2 Select the text box for [X1], and enter the value for X1 using the numeric keypad.
3 Select the text box for [Y1], and enter the value for Y1 using the numeric keypad.
4 Select the text box for [X2], and enter the value for X2 using the numeric keypad.
5 Select the text box for [Y2], and enter the value for Y2 using the numeric keypad.
Note • If all of [X1], [Y1], [X2], and [Y2] are set to [0], the area will be invalid. If no other area is
specified, the Delete Outside/Delete Inside feature cannot be used.
• Pressing the <C (Clear)> button clears the value you have entered.
Clear Area 1 (Area 2 or Area 3)
Clears all the values set for Area 1 (Area 2 or Area 3).
Stored Programming (Calling a Stored Program for Build Job)
This feature allows you to call a stored program for Build Job.
This feature is the same as "Registering Stored Programs for Build Job". For more information, refer to
"Calling a Stored Program for Build Job" (P.181).
