Machine Components
45
Product Overview
2

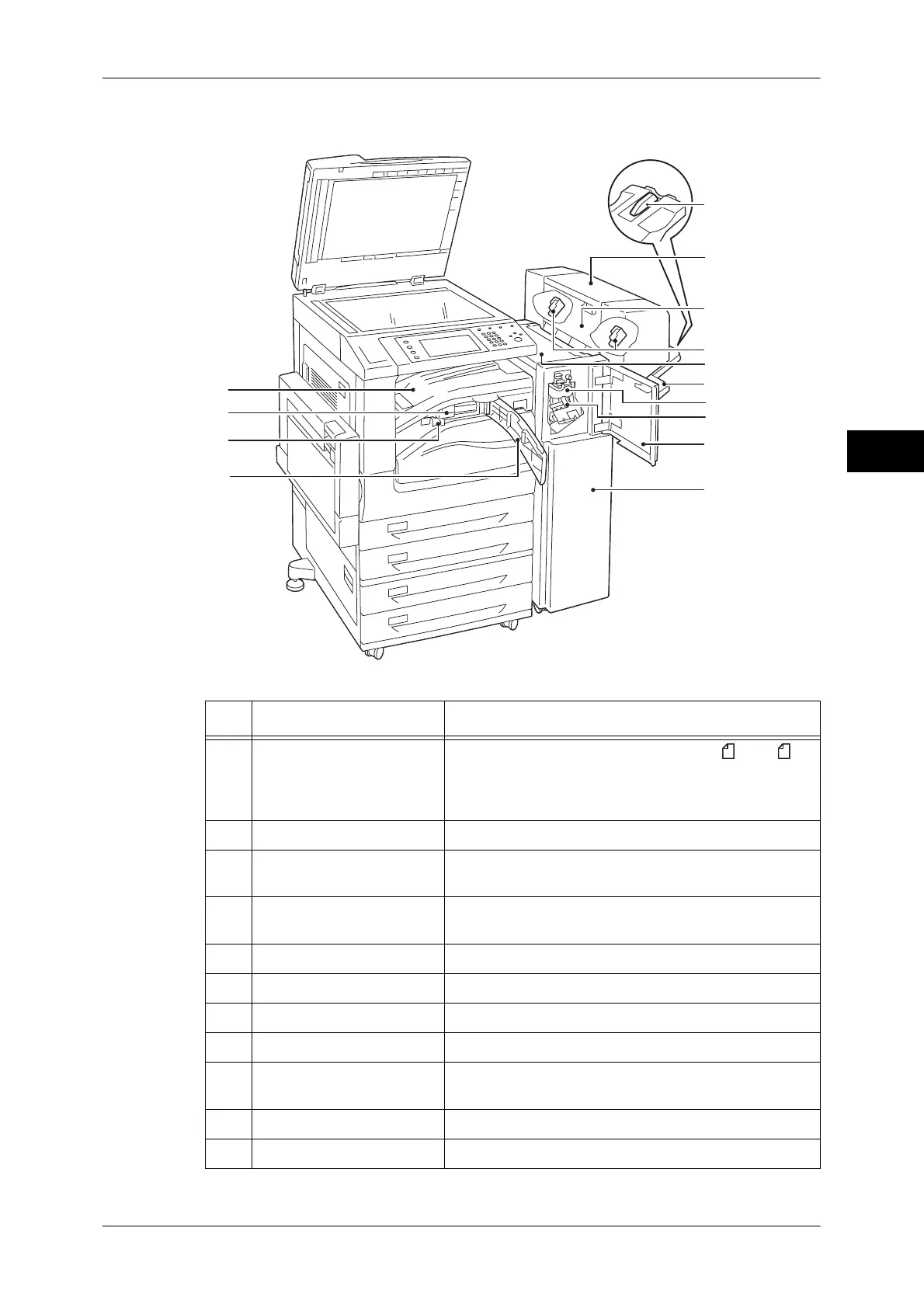

îš„Finisher-B1 (optional)
No. Component Function
1 Tray attachment Install this attachment when delivering A4 or B5
paper to the finisher tray without stapling.
For more information, refer to "Installing the Tray Attachment on
the Finisher-B1" (P.64).
2 Booklet unit (optional) Staples creased outputs.
3 Booklet unit side cover Open this cover when replacing the booklet staple
cartridge.
4 Booklet staple cartridge Contains staples. Remove this cartridge when replacing
or adding staples, or clearing staple jams.
5 Top cover Open this cover to clear paper jams.
6 Finisher tray Stapled or creased outputs are delivered here.
7 Creaser unit Creases outputs in half.
8 Staple cartridge Contains staples.
9 Front cover Open this cover when clearing paper jams or replacing
staples.
10 Finisher-B1 (optional) Staples copies or prints.
11 Front transport cover Open this cover when discarding punch scraps.
3
4
5
6
7
8
9
10
14
13
12
2
1
11
