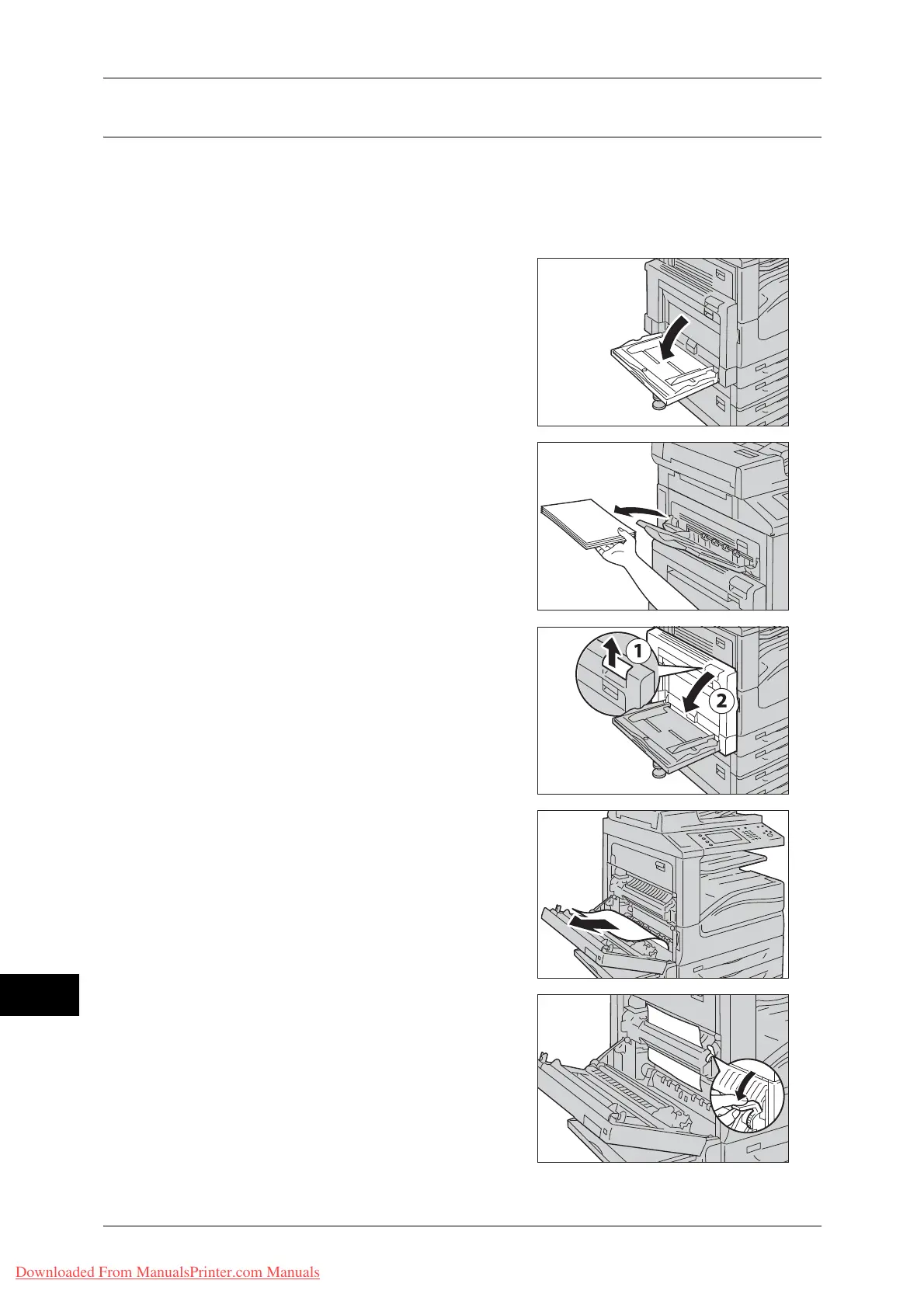

Paper Jams in Top Left Cover A
The following describes how to clear paper jams occurring in the top left cover.
Important • Do not touch the black film like the transfer belt inside the top left cover when you remove
the jammed paper because images might be shifted on the transfer belt. If you touch the
belt, the image quality might be deteriorated or the belt may be damaged and need
replacement.
1 Open Tray 5
îš„When Side Tray (Optional) being
attached:
Remove the papers stacked on the side tray
and open the cover on the upper-left.
2 Open the cover A (d) by pulling the lever
(
c) upwards.
3 If the paper is not jammed inside the
machine, continue to the next step.
Otherwise, move to Step 6.
4 Continue to roll the paper up by pulling the
green lever (A1) downwards.
Note • If the paper is torn, make sure no piece of
paper remains inside the machine.
