2 Product Overview
66
Product Overview
2

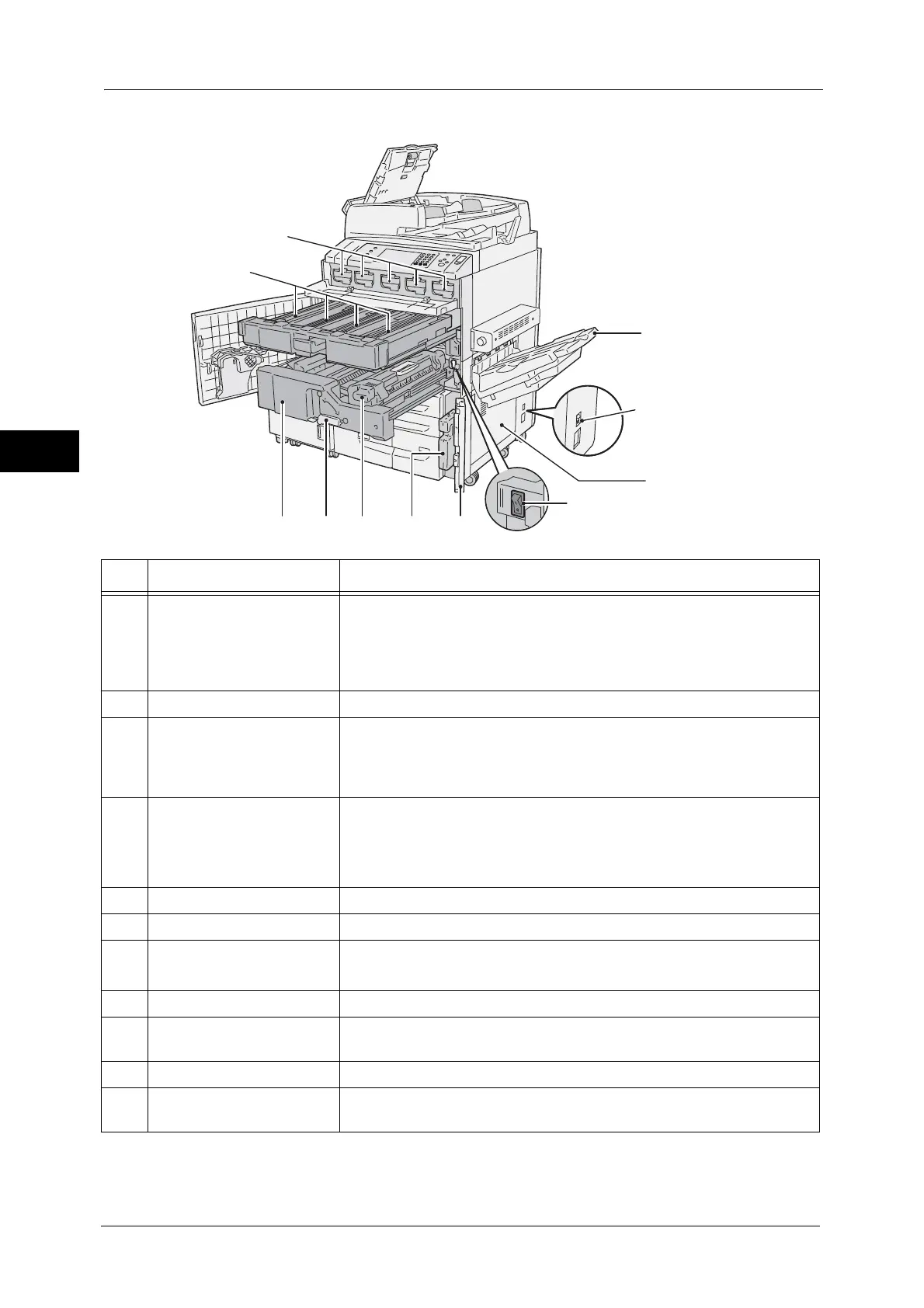

Inside and right views of the machine
No. Component Function
1 Output tray Outputs are delivered here.
Two types of trays are available: a normal output tray and an optional
offset stacking tray (Offset Catch Tray).
When the optional offset stacking tray is attached and A4 or smaller size
paper is to be output, do not use the extension flap.
2 Ground fault interrupter Automatically turns the machine off when a current leakage is detected.
3 Bottom right door Open this door to clear paper jams.
When the C3 Finisher or the C3 Finisher with Booklet Maker is attached,
open the Transport Unit V1 front door first, and then open this bottom right
door.
4 Main power switch Switches the main power of the machine on and off. Always follow the
instructions by the system administrator.
Important • Always switch the power off before switching the main power off.
For more information, refer to "Power Source" (P.71).
5 Waste toner container door Open this door to replace the waste toner container.
6 Waste toner container Used to collect waste toner.
7 Fusing unit Fuses toner on paper.
Important • Do not touch this unit as it is extremely hot.
8 Handle Used to pull out the transfer unit.
9 Transfer unit Transfers toner images on the drum to paper. Open this unit to clear paper
jams.
10 Drum cartridges Contain photoconductors. R1, R2, R3, and R4 are installed from the left.
11 Toner cartridges Contain toner (image forming power). Black (K1 and K2), Cyan (C), Magenta
(M), and Yellow (Y) toner are installed from the left.
To Next Page
