2 Product Overview
8
Product Overview
2
9 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other special
media) that cannot be loaded in Trays 1 to 4.
10 Locking casters Used for locking the wheels of the machine. Lock these casters after moving
the machine to its installation site.
No. Component Function
11 Top left cover Push up the unlock lever to access the insides of the machine to clear
paper jams and replace consumables.
12 Duplex module cover Open this cover to access the insides of the machine to clear paper
jams when the duplex module is installed.
13 Left center cover Open this cover to access the insides of the machine to clear paper
jams.
14 Bottom left cover Open this cover to access the insides of the machine to clear paper
jams.
15 RESET button This button automatically turns the machine off when a current leakage
is detected.
No. Component Function
Tray 4
(high capacity)
Tray 3
(high capacity)
20

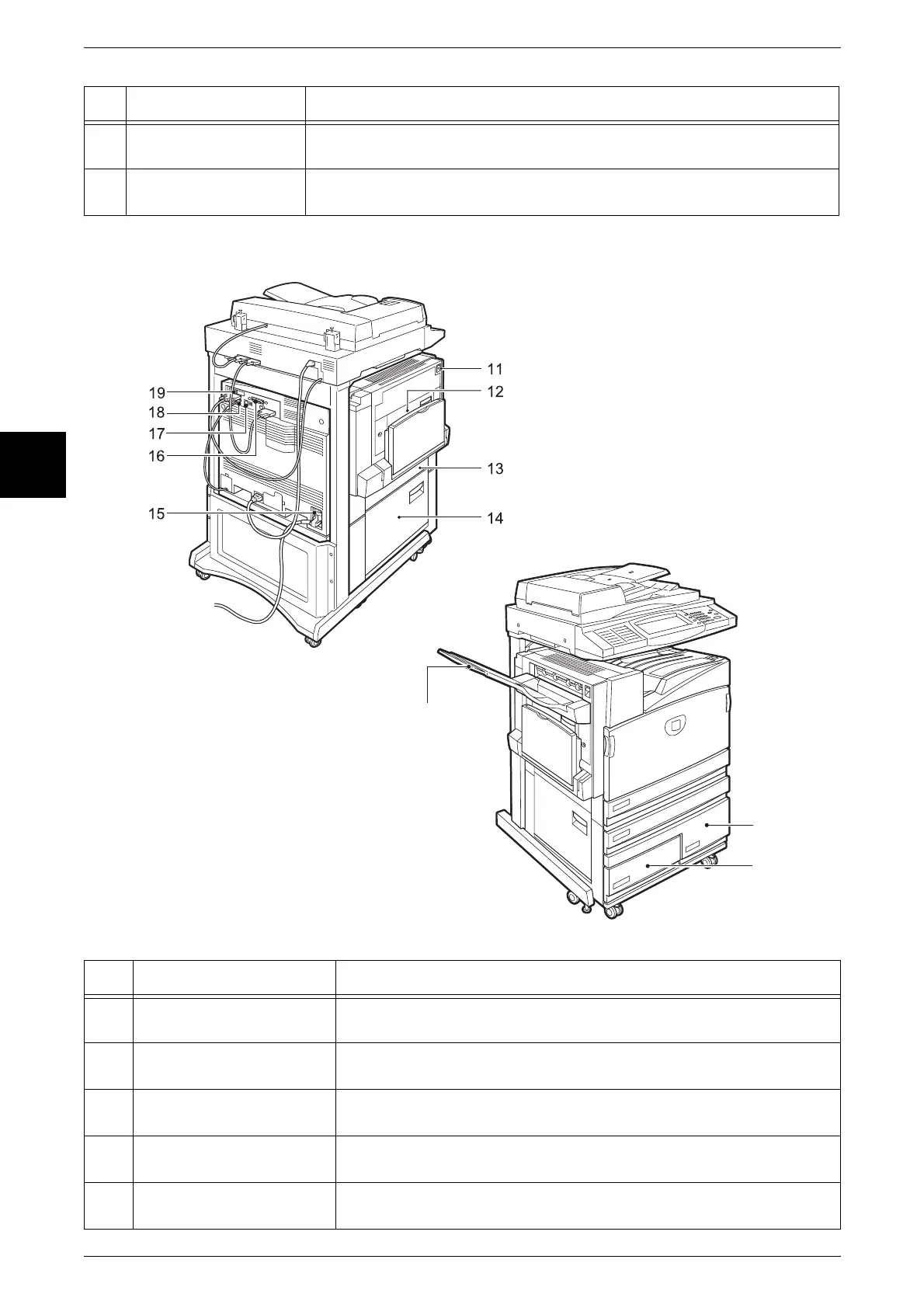

Left Side and Back
Tandem Tray Model + Side Output Tray
*
The tandem tray model is available for the Document Centre C450 only.
To Next Page
