Machine Components
9
Product Overview
2
16 Parallel interface connector Use this interface to connect to a computer using a centronics standard
interface cable.
17 10Base-T/100Base-TX
connector
Use to connect a network cable.
18 Fax interface connector Use this interface to connect to the fax kit
19 USB2.0 Interface
Connector (optional)
Use to connect a USB cable.
20 Side output tray Copies and prints are delivered here facing up.
The side output tray is an optional accessory.
No. Component Function
21 Stopper Fastens the handle in place.
22 Toner cartridges Four toner (image forming powder) cartridges are provided, Black (K),
Cyan (C), Magenta (M) and Yellow (Y).
23 Handle Unlock stopper and press this down when replacing the drum cartridges.
24 Drum cartridges
(A1, A2, A3, A4)
A drum cartridge comprises of photosensitive elements.
Drum cartridges are arranged in order A1, A2, A3 and A4 from the left
as you face the main body.
25 Toner collection bottle
cover
Toner collection bottles (B) for collecting used toner are located on the
other side of this cover. Open this cover to access the insides of the
machine to replace the toner collection bottles.
26 Fuser (E) Fuses the printed image on the paper by fusing the toner. Do not touch
this unit as it is extremely hot.
No. Component Function
21
22
23
24
25
26

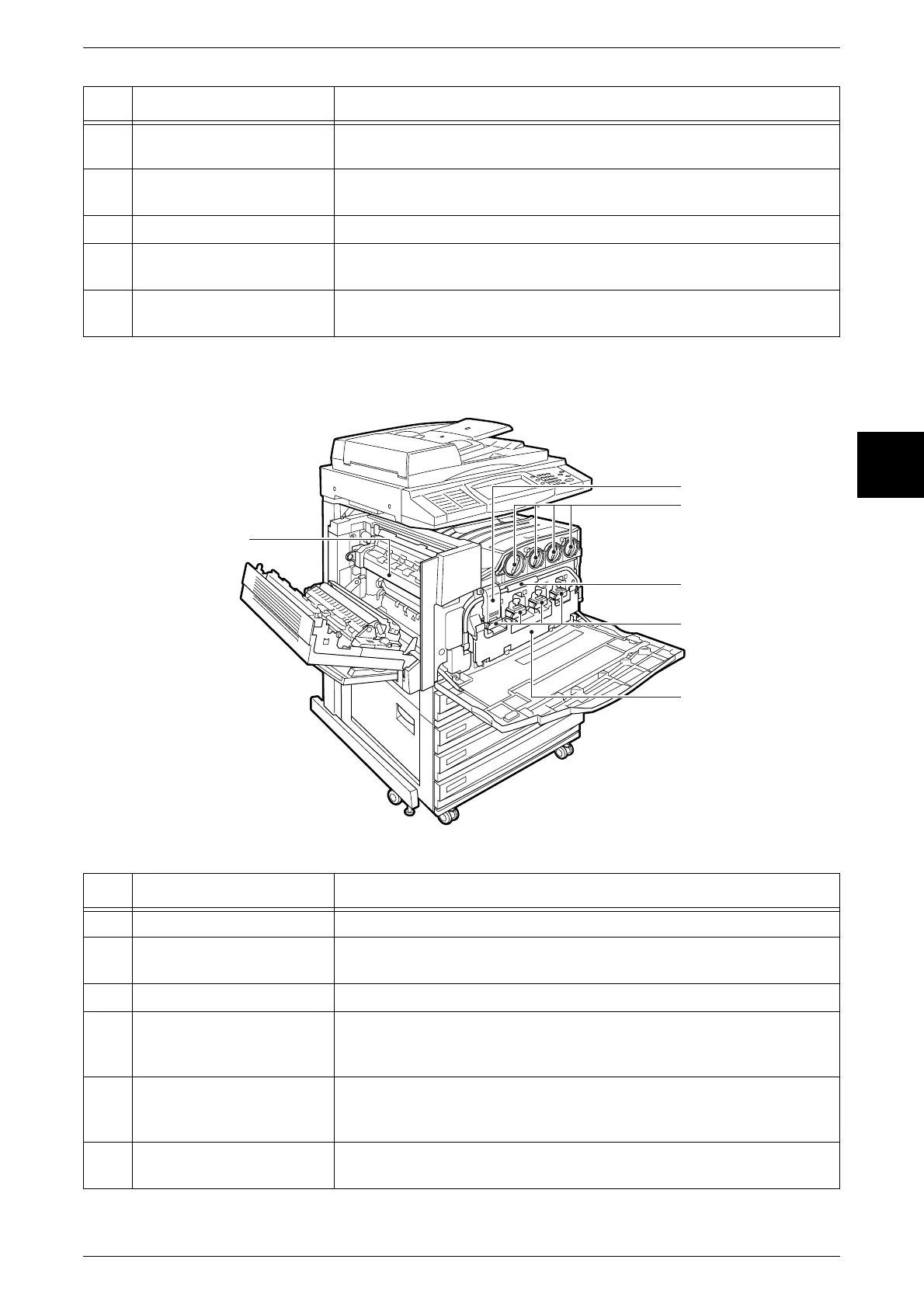

îInternal Components
