Q2ec-FM004921

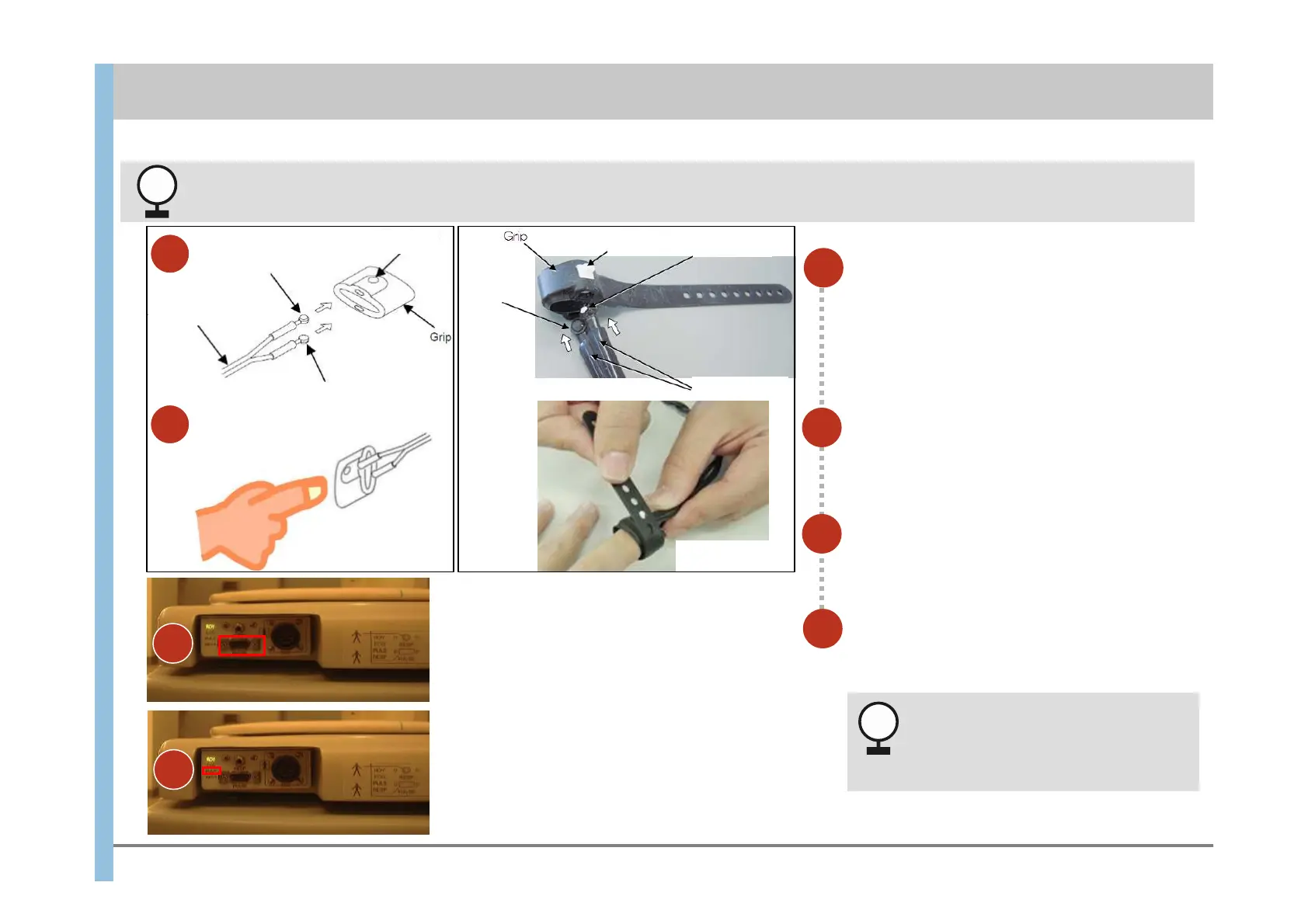

6.6 How to put gating sensor
Insert the sensor cable connector into
the PMM unit at the rear of the table.
3
2
Pay an attention to using and keeping of a gating sensor because a cable of gating sensor is mage from light pipe and fragile for strong
pressure.
Attach the grip to the sensor cable.
Adjust the size of the grip so that it is
appropriate for the patient’s finger.
Make sure that the white button of the sensor
cable is connected to the side of the grip with
the white mark.
1
4
Check the response of the sensor.
The PULS LED blinks in synchronization with
the pulse wave.
3
4
Be careful not to let the cable of the
gating sensor catch between the
table and any other part.
Grip ② type
2
White button
Sensor cable
Blue button
White Mark
Blue
Mark
White Hook
White Mark
Sensor Cable
Chapter 6 Imaging
NOTICE
NOTICE
Put the grip on the finger so that the
white mark on the grip is on the
same side of the finger as the nail.
1
Grip ① type
To Next Page
