Replacing the Pick Roller
295

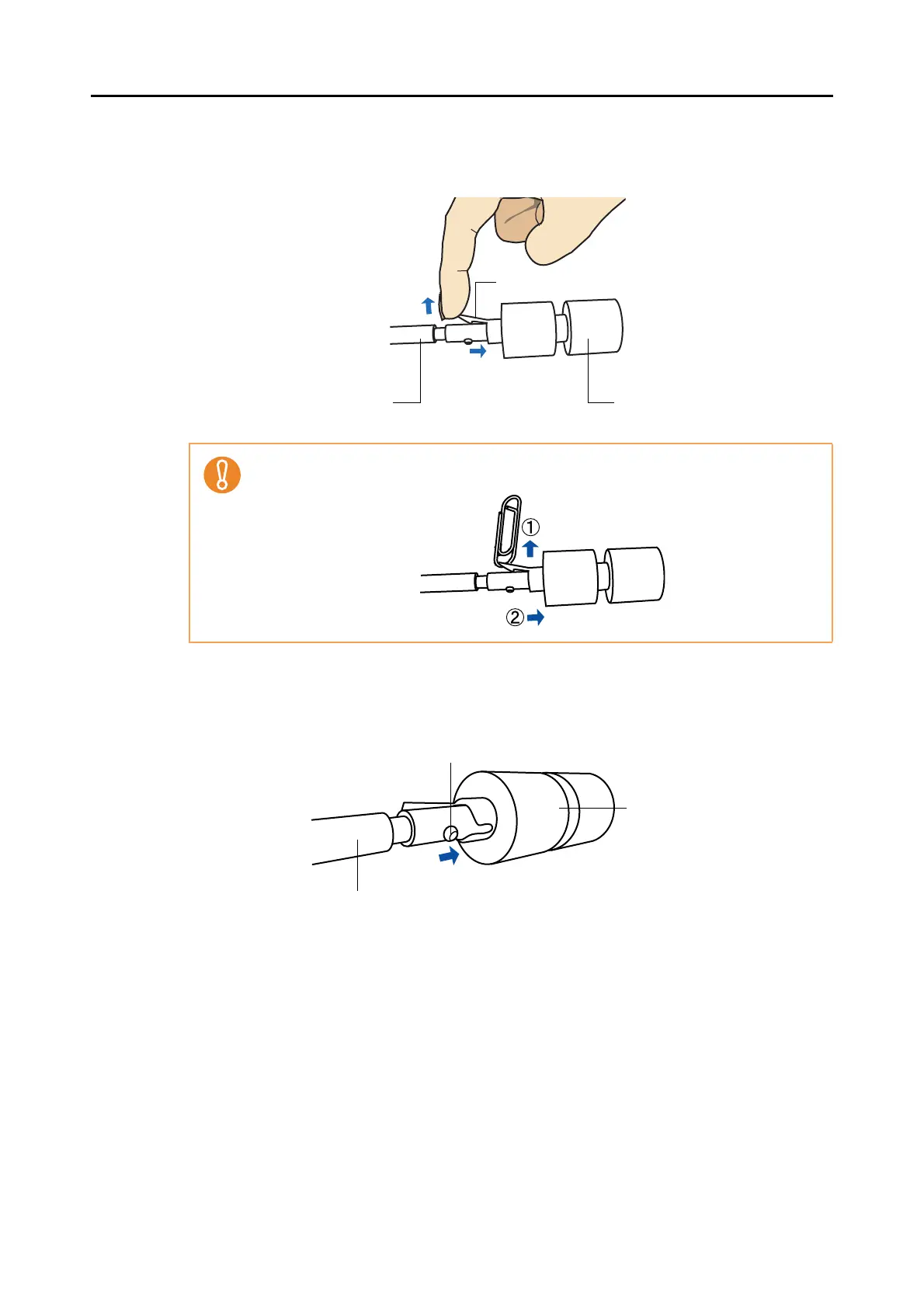

7. Remove the pick roller from the pick roller shaft.
D Pull out the shaft from the pick roller lifting up the retaining clip.
8. Attach the new pick roller to the shaft.
Insert the pick roller shaft aligning the drive pin with the groove on the new pick roller.
Lifting the retaining clip with your fingernail may hurt or damage your fingernail.
If you cannot lift it successfully, use a paper clip.
Pick roller shaft
Pick roller
Retaining clip
Drive pin
Pick roller shaft
Pick roller
