This chapter presents the individual hardware components of your device. It gives an
overview of the indicators and connections of the device. Please familiarize yourse lf
with these items before you sta rt to work with the device.
Front
1
2
3
5
6
4
4

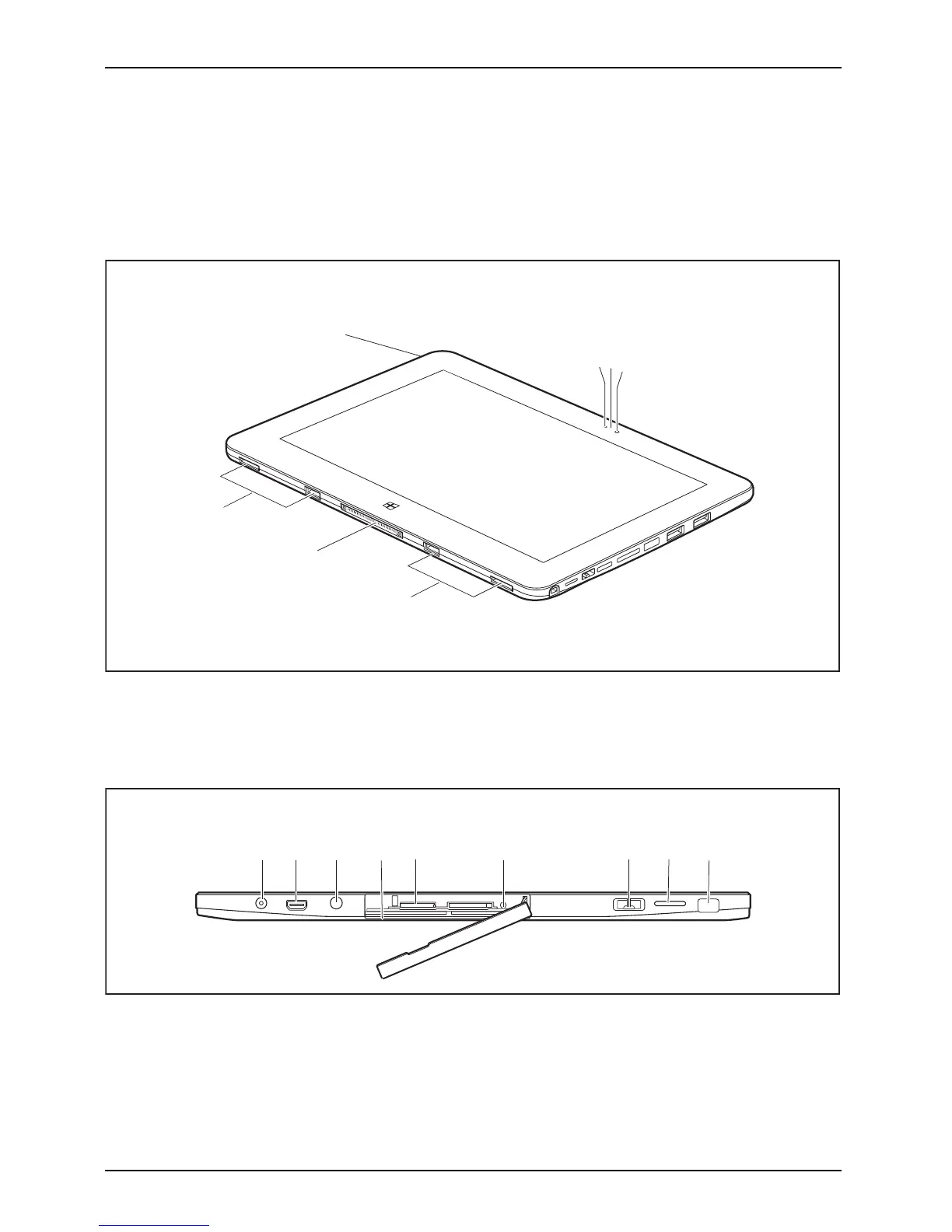

1 = Ambient light sensor
2 = Webcam status LED
3 = Webcam
4 = Guide for cradle or keyboard cover
5 = Docking port for cradle or k eyboard cover
6 = Battery charging indicator
Left-hand side
1 2 4 9
3
5
7
8
6
1 = DC input connecto r (DC IN)
2 = Micro HDMI port
3 = Combined h eadphone and
microphone port
4 = SmartCard reader (device dependent)
5 = Micro SD card slot (protected by cover)
6 = Battery reset button
7 = Tether eyelet
8 = Speaker
9 = Security lock device
