FHE-250 MANUAL 09 2014 ISSUE 2
Page 24
2

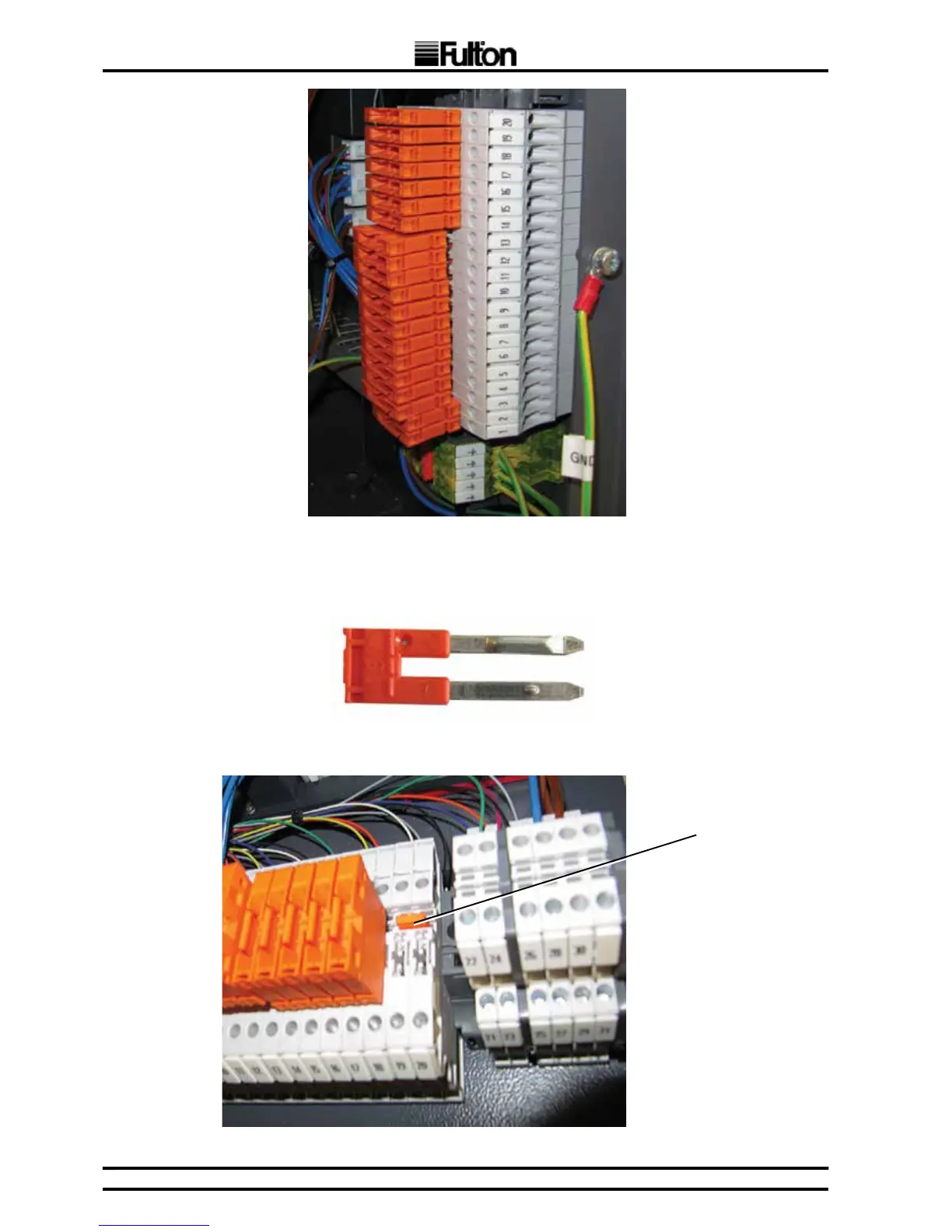

FIG. 7 ELECTRICAL TERMINALS 3-13 DISCONNECTED
FIG. 8 JUMPER
FIG. 9 INSERTED JUMPER BETWEEN TERMINALS 19 AND 20
Inserted
jumper
