SECTION 5 - GENERAL DATA

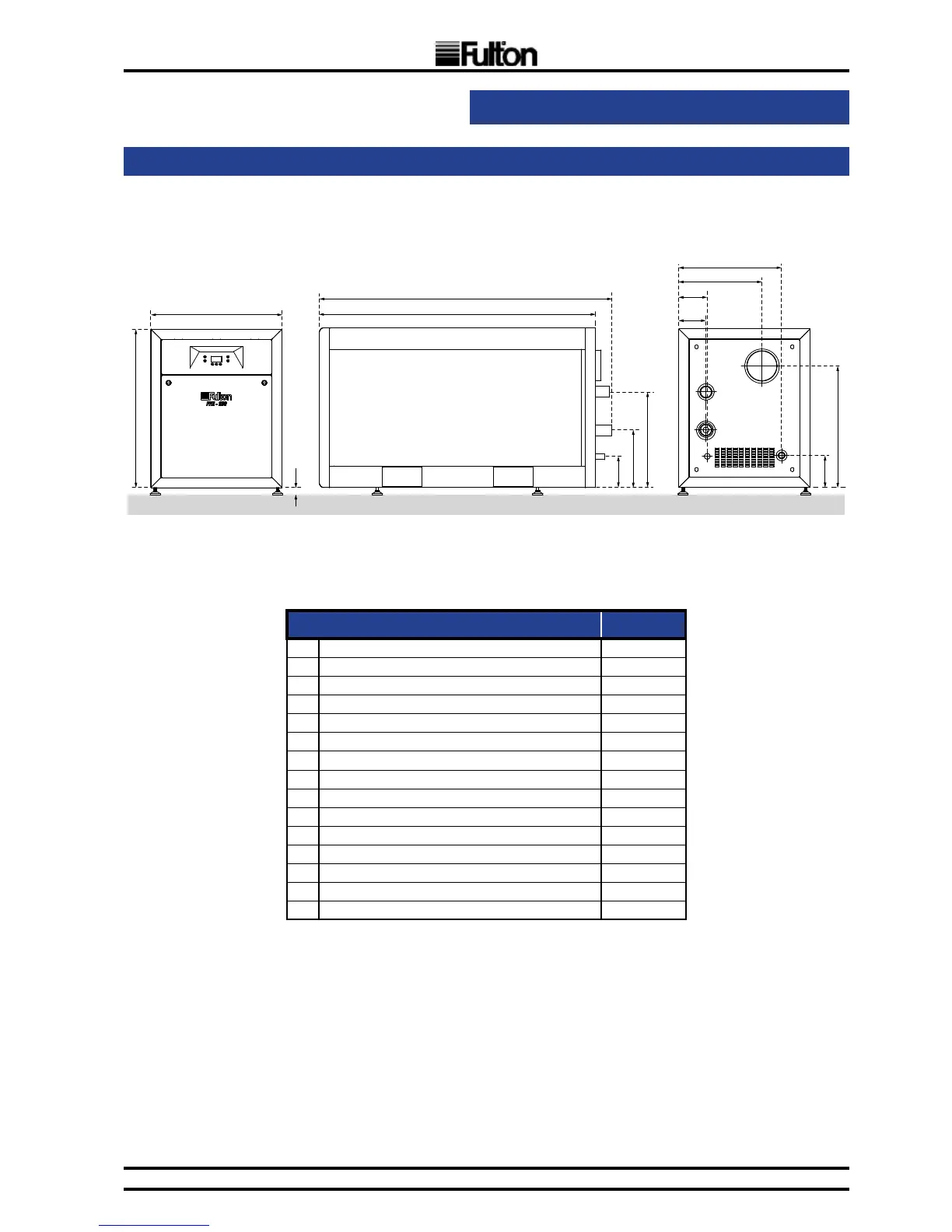

FIG.12 BOILER DIMENSIONS
5.1
BOILER DIMENSIONS
Note: Dimensions are for one FHE-250 model, further models (if being cascaded) would be stacked vertically or horizontally.
Adjust dimensions, according to number of models being cascaded.
Dimensions mm
Dimensions are approximate and only intended as a guide to aid installation.
MODEL: FHE 250
A
Overall Width 650
B
Overall Depth 1420
C
Cabinet Depth 1360
D
Cabinet Height 785
E
Adjustable Foot Height 35 ± 10
F
Gas Inlet Height 160
G
Gas Inlet Distance From Edge 520
H
Flue Outlet Height 608
J
Flue Outlet Distance From Edge 407
K
Flow Pipe Height 270
L
Flow Pipe Distance From Edge 140
M
Return Pipe Height 475
N
Return Pipe Distance From Edge 140
P
Condensate Pipe Height 155
Q
Condensate Pipe Distance From Edge 155
