FULTON VMP Series - VMP Dimensions & Specification

VMP-IOMM-2018-2
Fulton Ltd
Page 84
APPENDIX - A
VMP Series
Dimensions & Specication
Technical Information
Sheet No. 128 Issue 3

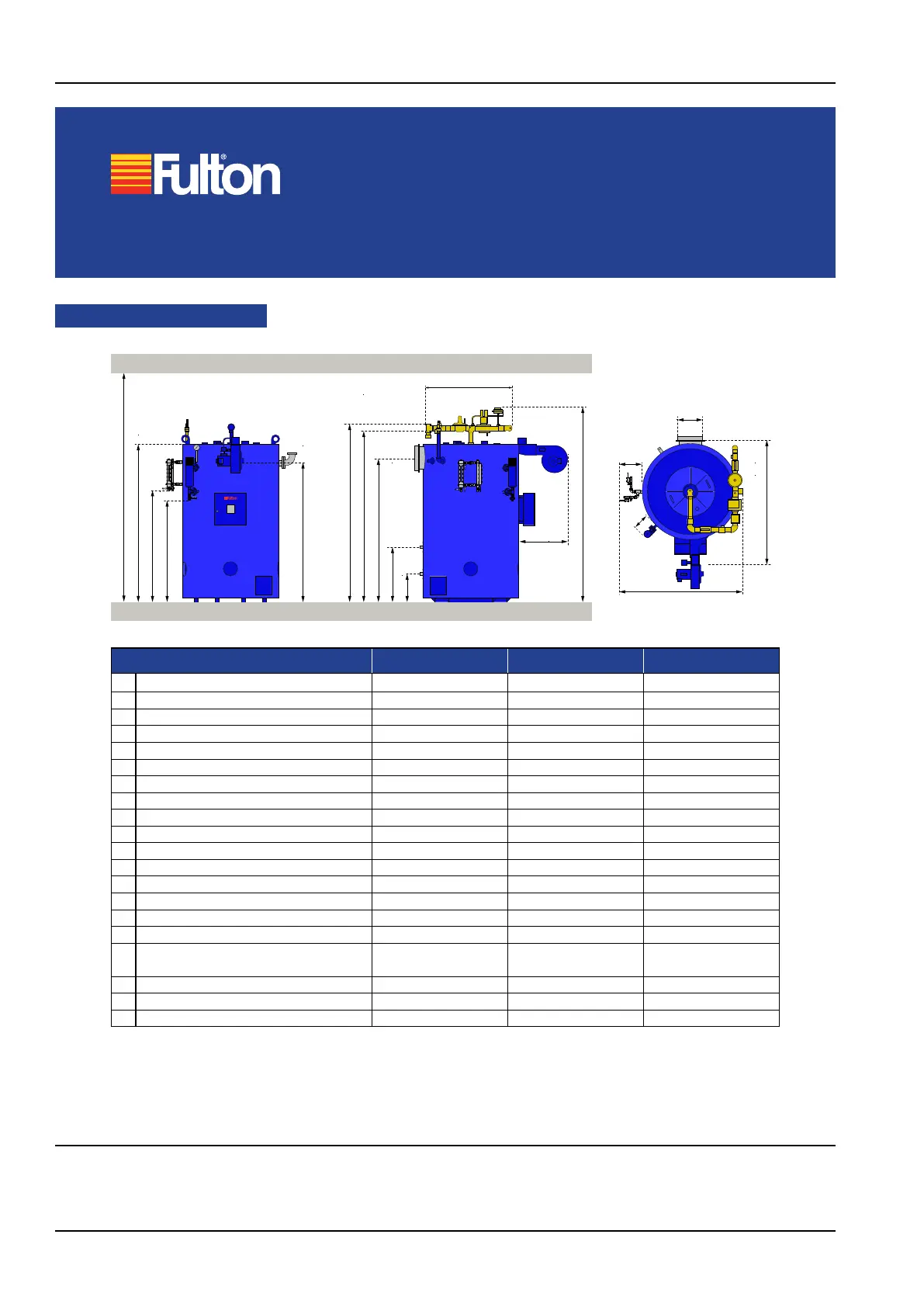

Dimensions
Page 1 of 2
A
E
T
S
L
K
N
M
R
G
W
D
U
V
B
C
P
J
H
* Recommended height for service & maintenance
Note: Dimensions mm
Note: Dimensions are approximate and only intended as a guide to aid installation.
Note: Minimum clearances of 600 mm to the side and back, and 900 mm in front of the unit are recommended for service and maintenance.
The boiler may be tted with a 90° elbow spool piece, making the steam outlet connection higher.
MODEL: VMP 60 80 100
A
Minimum Clearance* 3175 3302 3353
B
Overall Width 1575 1727 1880
C
Overall Depth 2540 2896 3022
D
Overall Height 2984 3150 3200
E
Boiler Height 2464 2540 2540
F
Boiler Diameter 1397 1600 1753
G
Gas Train Length 800 800 800
H
Gas Inlet Height 2710 2790 2790
J
Oil Inlet Height 2134 2260 2260
K
Safety Valve Discharge Height 2670 2740 2740
L
Steam Outlet Height 2134 2260 2260
M
Feedwater Inlet Height 889 889 889
N
Flue Outlet Height 2237 2413 2413
P
Flue Diameter 305 356 356
R
Main Boiler Blowdown Height 457 457 457
S
Control Column Blowdown Height 1680 1750 1750
T
Water Level Gauge (Sight Glass)
Blowdown Height
1680 1750 1750
U
Sight Glass Stand Off 300 300 300
V
Control Column Stand Off 300 300 300
W
Fan Stand Off 750 750 750
