[Depth Scale]: Select where to display the depth scale. When [Off] is selected, the
depth scale is turned off.
[Color Bar]: Turn the color bar on or off.
[Function Display]: Turn the function name for the function keys on or off.
[Key(F1/F2)]: The function names of the F1 and F2 key appear at the bottom left side
of the display.
[Key(1/2/3)]: The function names of the , and key appear at the bottom left
side of the display.
[Mode&Gain Display]: Turn the mode and gain indication (example: ) at the
upper left side of the display on or off.

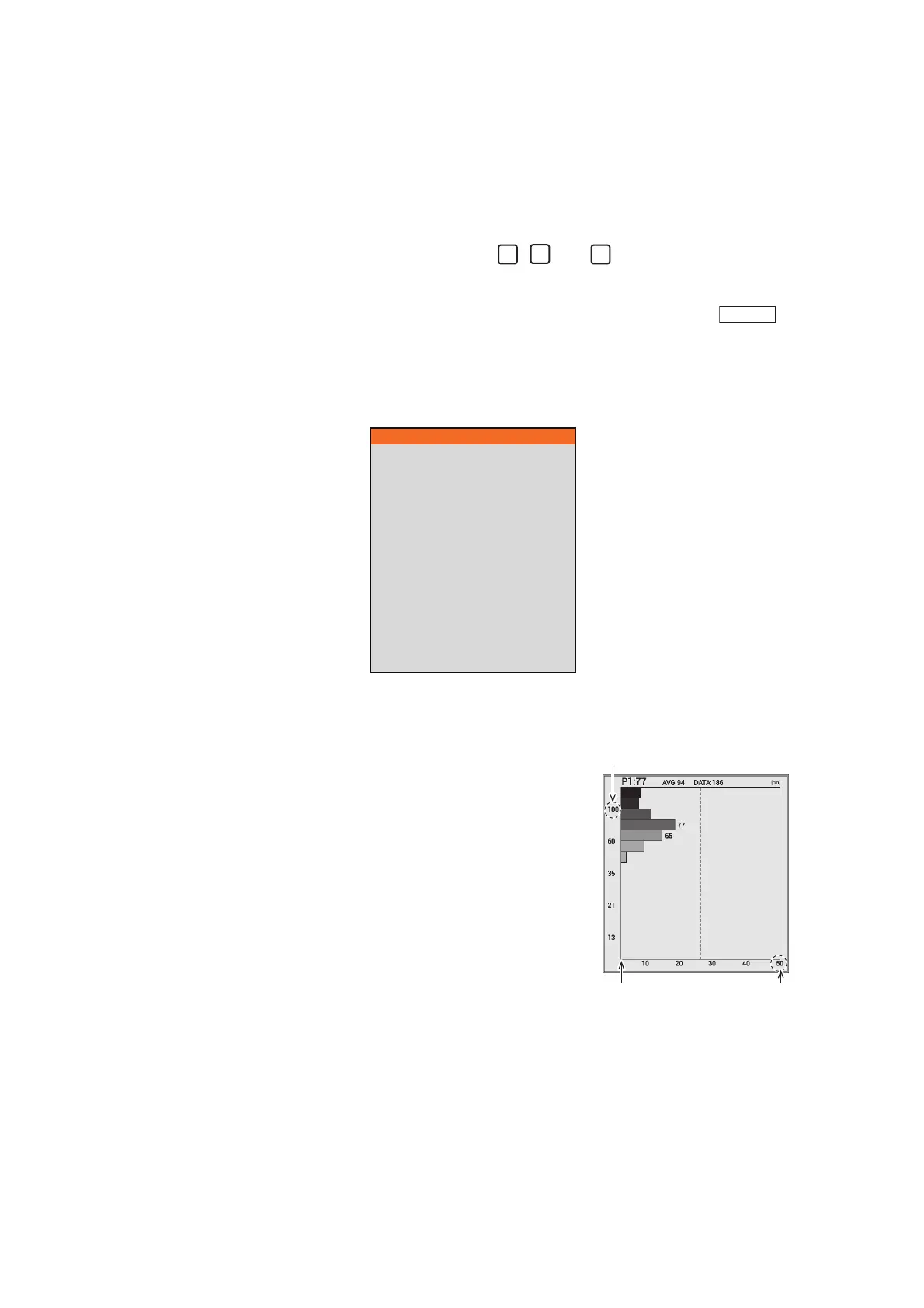

1.27.3 [Measurement] menu
[Graph Size]: Select the size of the fish size histogram window.
[Graph Scale End]: Select the fish size scale for
the fish size histogram.
[Distributed Scale Start]: Select the starting value
for the graph.
[Distributed Scale End]:Select the end value for
the graph.
[Number of graph bars]: Select the number of
graph bars on the fish size histogram. For example,
[Max. 8 bars] shows eight graph bars in decreasing
distribution quantity order.
Note: For [Max. 4 bars] and [Max. 8 bars], more
than four or eight bars appear when the measured
distribution quantity is equal between measured fish sizes.
[Transparency]: Select the degree of transparency for the fish size histogram win-
dow. The transparency effect is not applied to the graph bar, scale and characters. Al-
pha blending technology is used for transparency effects.
[Updating Cycle]: Select the updating cycle for the fish size histogram.
1
2
For [Setting] tab ([ACCU-FISH] = [Graph])
ACCU-FISH
[Graph Display]
Graph Style
Graph Size
Graph Location
Graph Scale End
Distributed Scale Start
Distributed Scale End
Number of graph bars
Transparency
Updating Cycle
[Mark Display]
Fish Info
Fish Symbols
Graph
Horizontal
Small
Upper Left
39inch
3%
50%
Max.16 bars
Off
3s
Size
Fish Mark
Fish size scale
Starting value for
the distribution
End value for
the distribution
