Furuno FCV-1900 - 3.6 Diagnostic Test

3. MAINTENANCE & TROUBLESHOOTING
3-6
3.6 Diagnostic Test
The diagnostic test checks the equipment for proper operation and displays various
information. To perform the diagnostic test, do the following:
1. Press the MENU/ESC key, then open the [Setting] tab.
2. Select [System], then push the ENTER knob.
3. Select [Tests], then push the ENTER knob.
4. Select [Diagnostic Test], then push the ENTER knob.

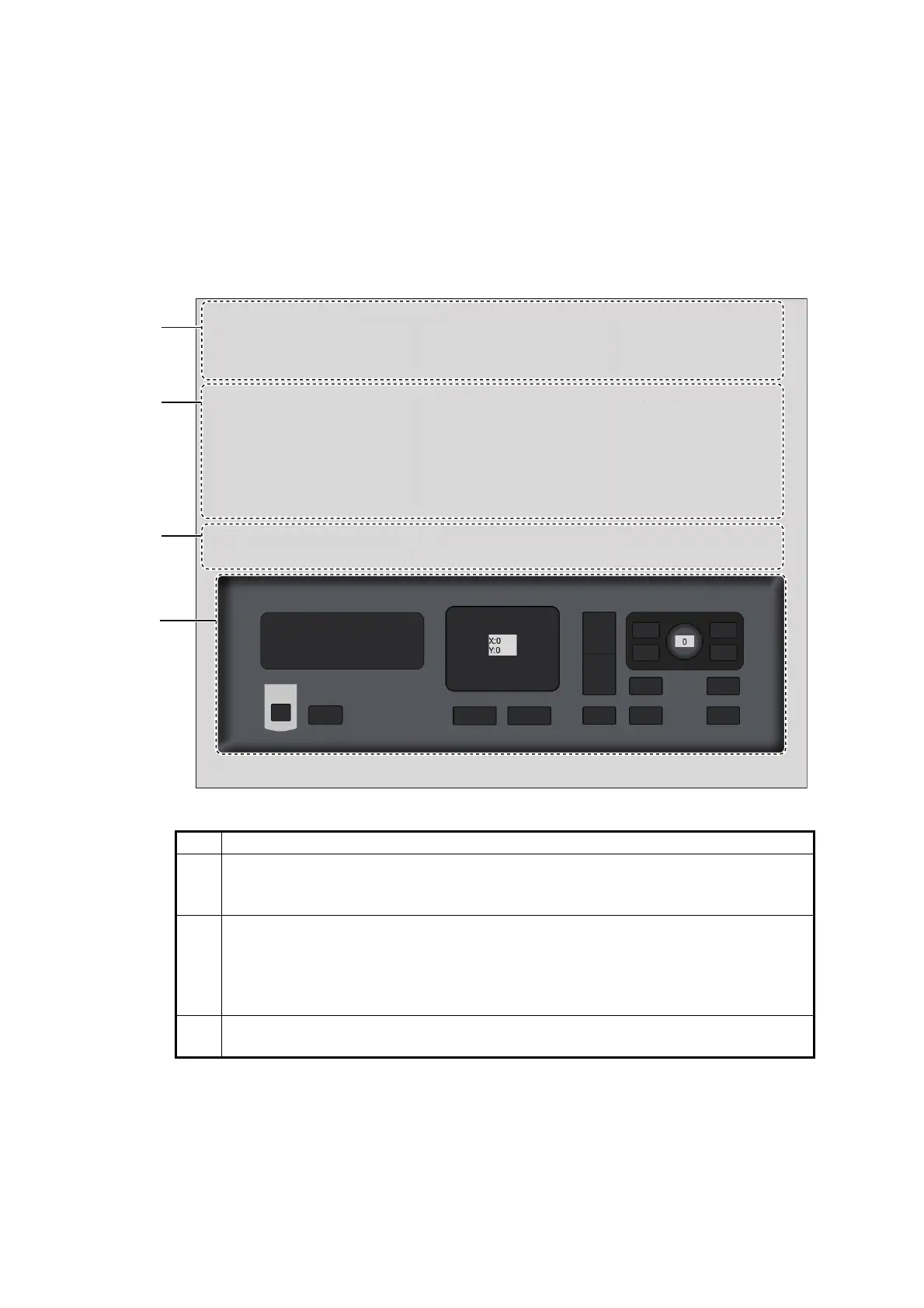

No. Description
1 The check result and information for the MAIN board (19P1084/A).
Shows model name, MAC address, IP address, CPU temperature, program no.,
and fan speed.
2 The check result and information for the CTRL board (02P6392).
Shows ROM/RAM check (OK or NG), MAC address, IP address, input voltage, B
voltage, connector connection test*, circuit board version no., program version
no., water temperature, and fan speed.
*: “--” appears normally. This test is used for the check in the factory.
3 The check result and information for the external fish finder.
Shows ROM/RAM check (OK or NG), program no., water temperature.
Press the camera icon key 3 times to capture. (1/99)
Press the [MENU/ESC] key 3 times to exit.
Display Unit
Product Grade : FCV-1900
MAC Address : 00-40-9D-7D-9D-32
IP Address : 172.31.92.7
CPU Status : 29
Application Ver : 0252434-xx.xx
System Ver : 0252437-xx.xx
Kernel Ver : 0252436-xx.xx
Fan Speed : 5160rpm
U-Boot Ver : 0252435-xx.xx
PIC Boot Ver : 1950143-xx.xx
PIC Main Ver : 1950144-xx.xx
Signal Unit
Fish Finder Sensors
ROM : OK
RAM : OK
MAC Address : 00-D0-1D-0C-A5-31
IP Address : 172.31.92.6
Power Voltage(12V) : 12.1V
Power Voltage(5V) : 5.0V
HF BVolt : 120.9V
LF BVolt : 113.2V
PWR Board Ver : 0
CTRL Board Ver : 0
TRX Board Ver : 0
Application Ver : 0252425-xx.xx
FPGA Ver : 0252426-xx.xx
Boot Ver : 0252424-xx.xx
Start Ver : 0252423-xx.xx
Fan Speed : 8640.0rpm
Port1(NMEA1) : --
Port2(NMEA2) : --
Port3(Tankenmaru) : --
Port4(SC) : --
Port5(CIF) : --
Telesounder : --
Temp : 10.4ºC
ROM : OK
RAM : OK
Application Ver : xxxxxxxxxx
Boot Ver : xxxxxxxxxx
Temp : 10.4ºC
xx.xx: Program version
1
2
3
4
