FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
13
7
UID button/indicator
8
Power button/indicator
⚫
12 x 3.5" drive configuration

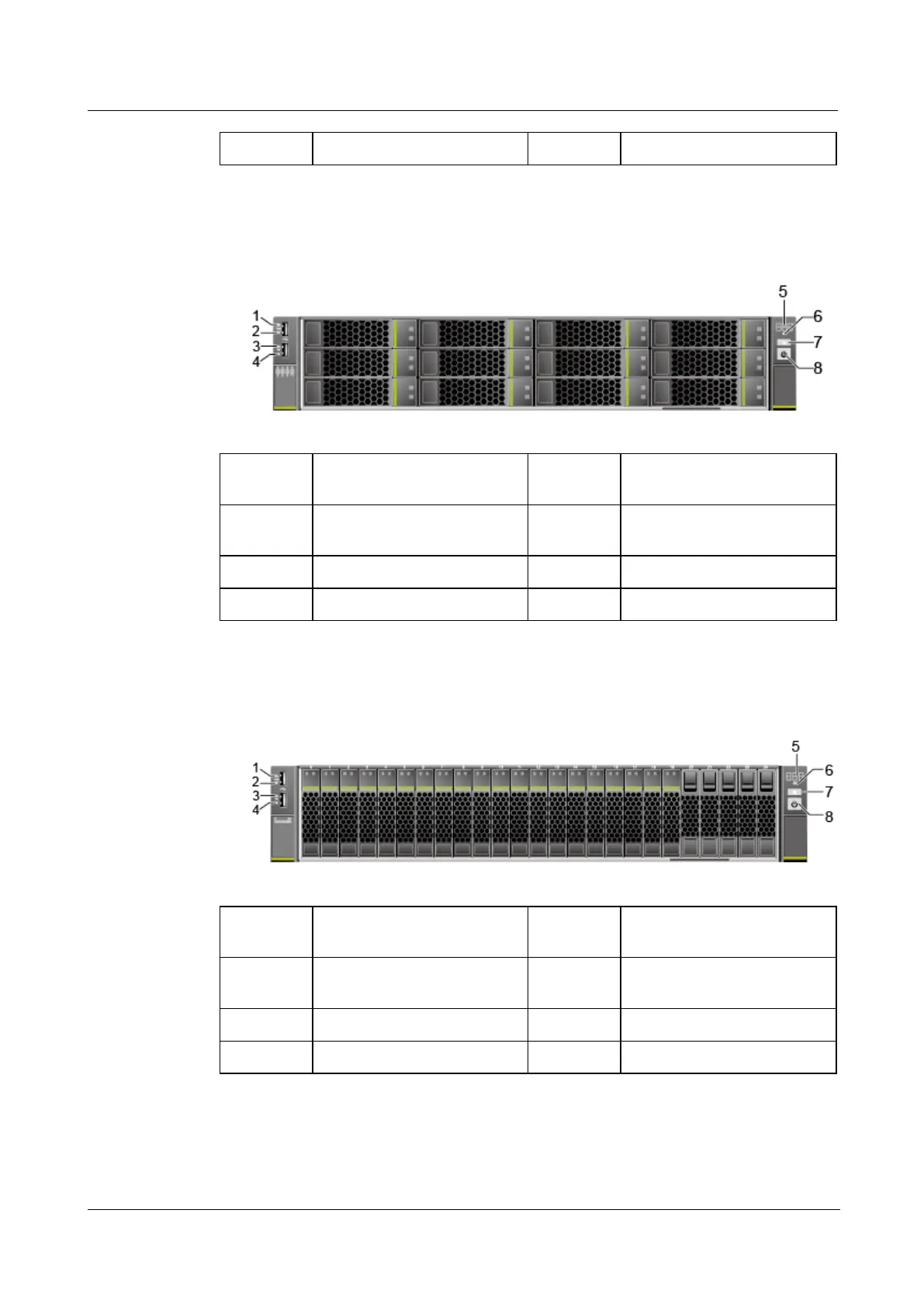

Figure 5-9 Indicators and buttons on the front panel
1
Connection status indicator
for 10GE LOM port 1
2
Connection status indicator
for 10GE LOM port 2
3
Connection status indicator
for GE LOM port 1
4
Connection status indicator
for GE LOM port 2
5
Fault diagnosis LED
6
Health status indicator
7
UID button/indicator
8
Power button/indicator
⚫
20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive configuration
Figure 5-10 Indicators and buttons on the front panel
1
Connection status indicator
for 10GE LOM port 1
2
Connection status indicator
for 10GE LOM port 2
3
Connection status indicator
for GE LOM port 1
4
Connection status indicator
for GE LOM port 2
5
Fault diagnosis LED
6
Health status indicator
7
UID button/indicator
8
Power button/indicator
⚫
24 x 2.5" drive configuration
