FusionServer 2288H V5 Server

Technical White Paper

5 Hardware Description

Issue 11 (2023-04-30)

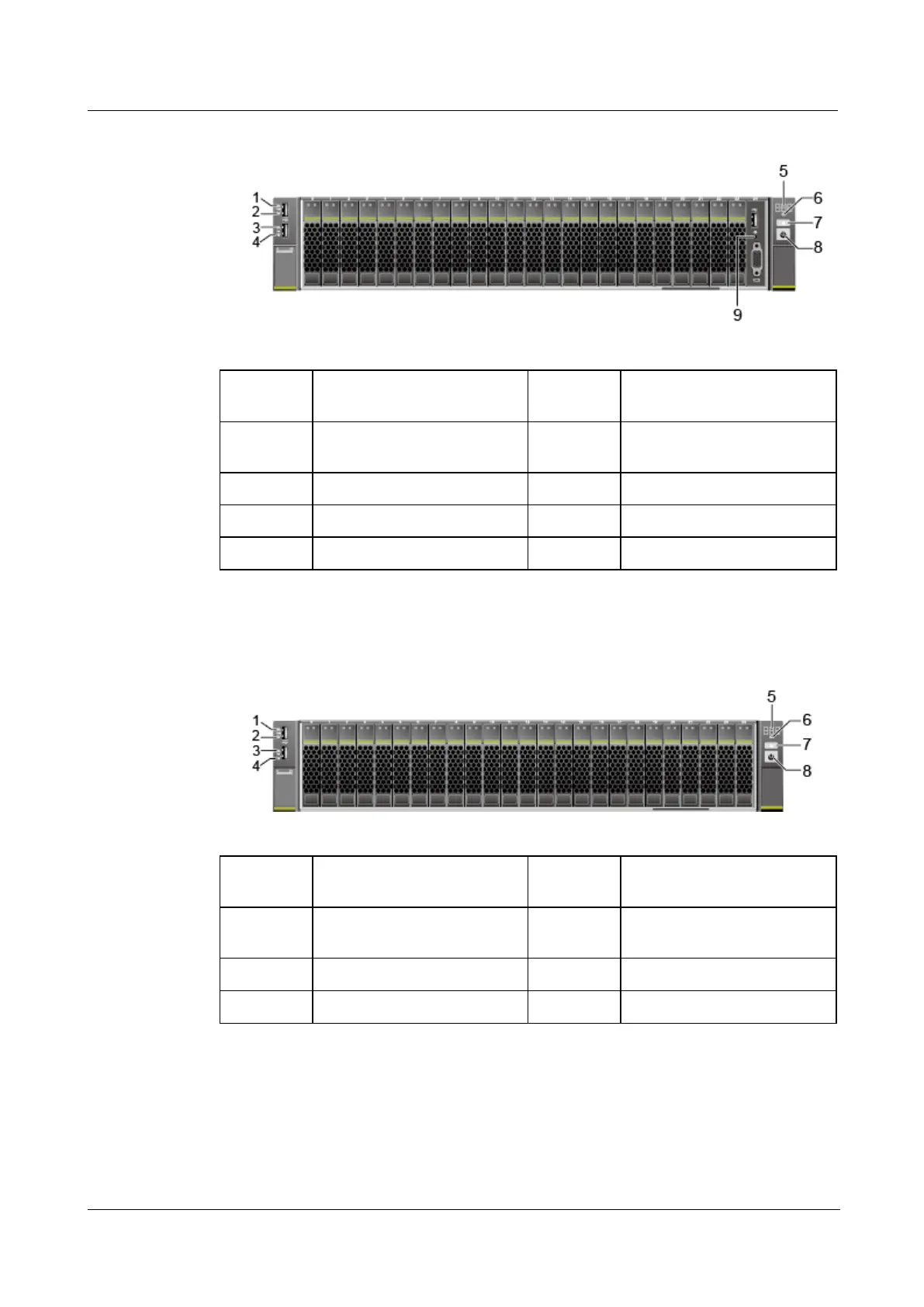

Figure 5-11 Indicators and buttons on the front panel

Connection status indicator

for 10GE LOM port 1

Connection status indicator

for 10GE LOM port 2

Connection status indicator

for GE LOM port 1

Connection status indicator

for GE LOM port 2

Fault diagnosis LED

Health status indicator

UID button/indicator

Power button/indicator

NMI button

⚫

25 x 2.5" drive configuration

Figure 5-12 Indicators and buttons on the front panel

Connection status indicator

for 10GE LOM port 1

Connection status indicator

for 10GE LOM port 2

Connection status indicator

for GE LOM port 1

Connection status indicator

for GE LOM port 2

Fault diagnosis LED

Health status indicator

UID button/indicator

Power button/indicator
