FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
51

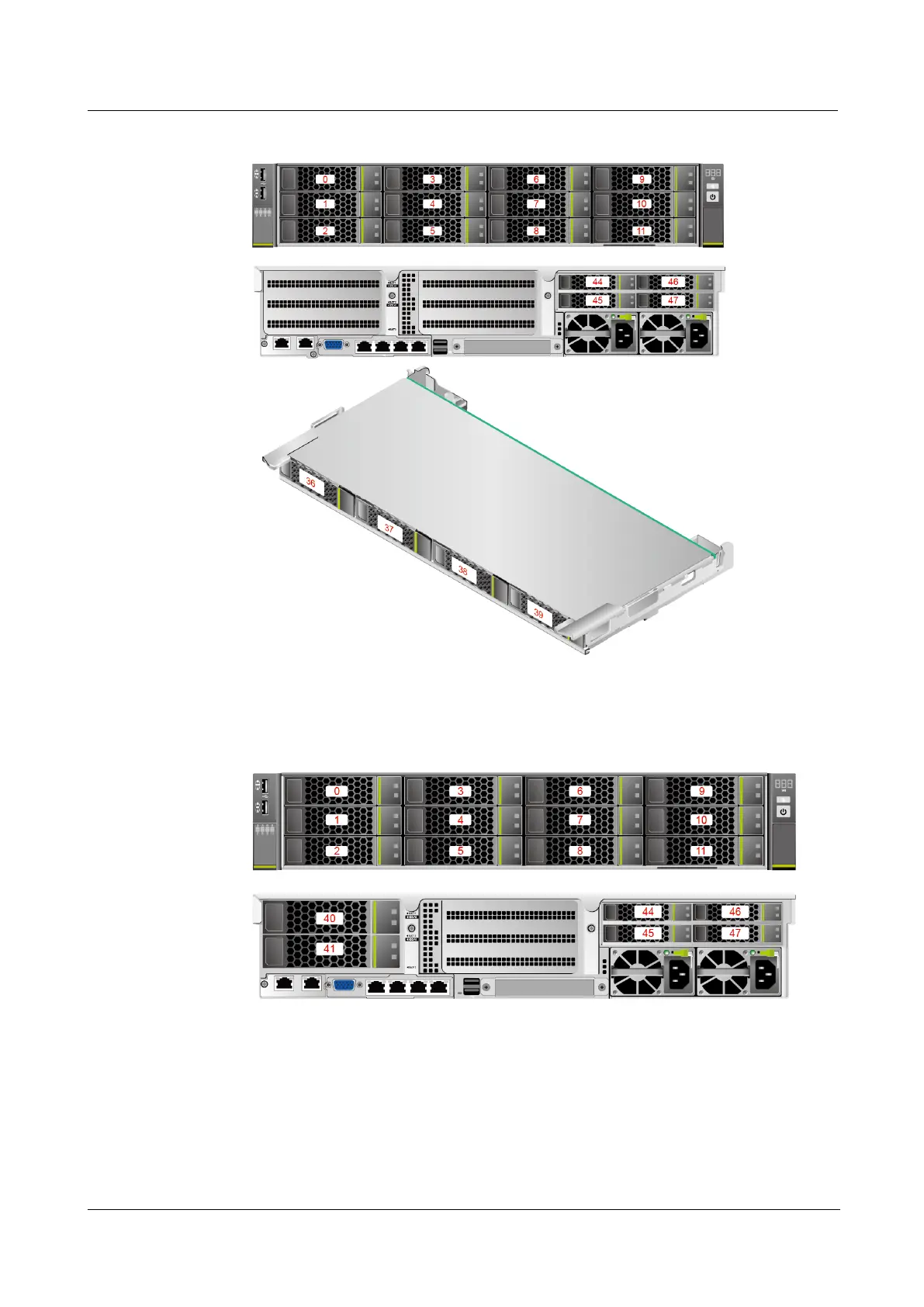

Figure 5-41 Drive numbering
⚫
12 x 3.5" drive pass-through configuration 4
Figure 5-42 Drive numbering
⚫
20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive configuration
