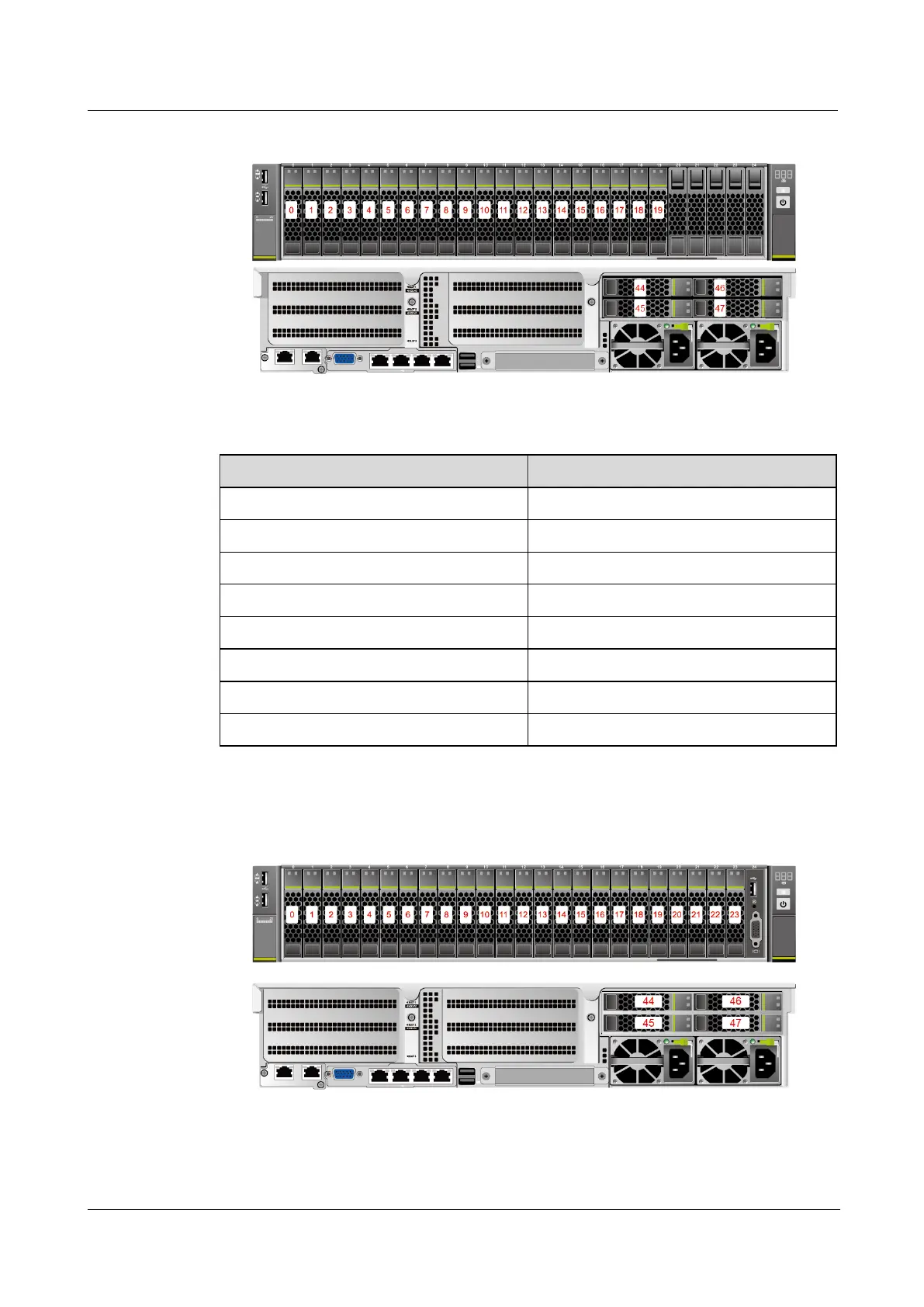

Figure 5-43 Drive numbering
Table 5-12 SATA drive numbers
Drive No.
ATA No.
0
ATA3
1
ATA4
2
ATA5
3
ATA6
4
ATA7
5
ATA8
6
ATA9
7
ATA10
⚫
24 x 2.5" drive configuration
Figure 5-44 Drive numbering
