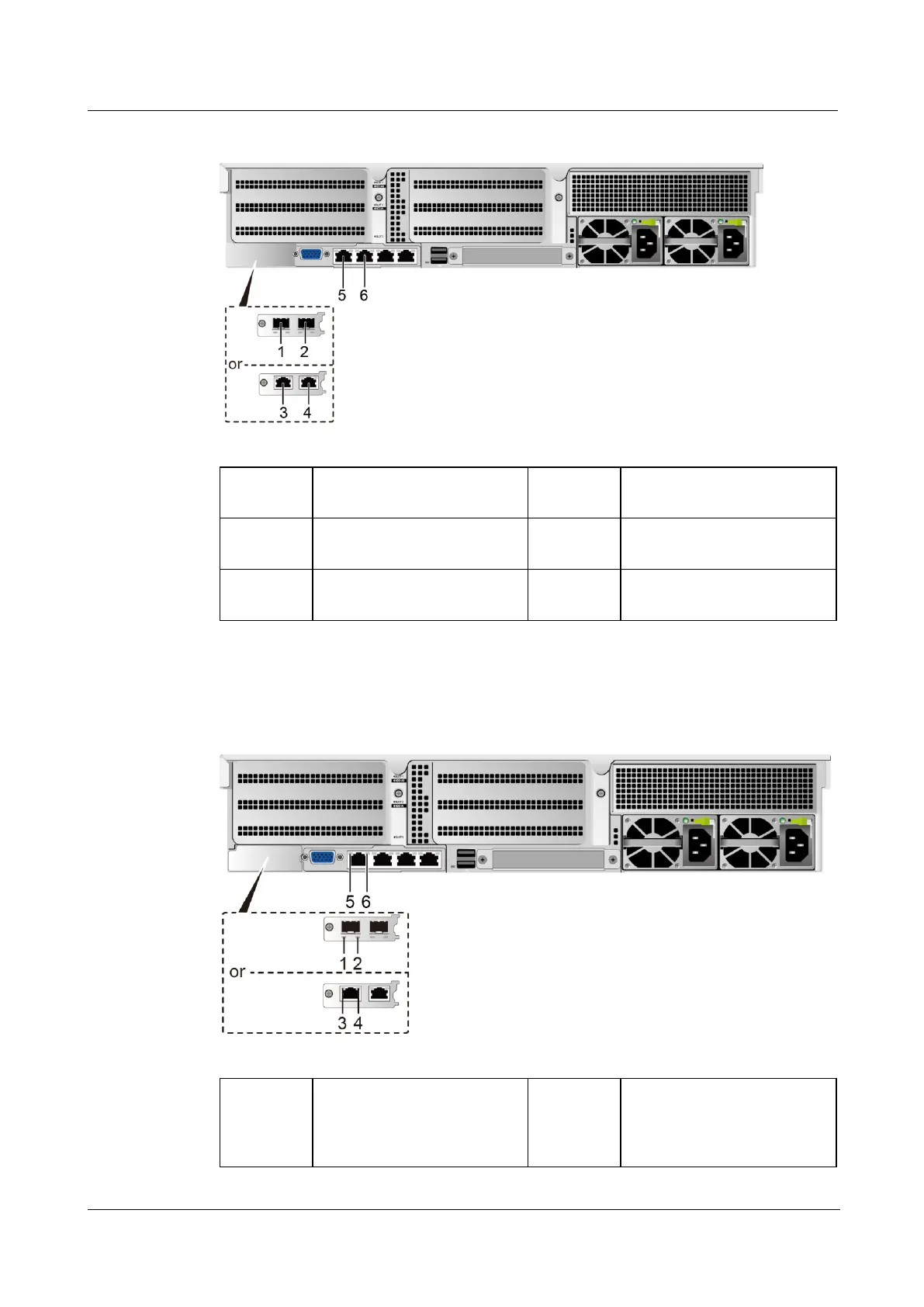

Figure 5-51 LOM port
1
(Optional) 10GE optical
port (LOM port 1)
2
(Optional) 10GE optical
port (LOM port 2)
3
(Optional) 10GE electrical
port (LOM port 1)
4
(Optional) 10GE electrical
port (LOM port 2)
5
GE electrical port (LOM GE
port 1)
6
GE electrical port (LOM GE
port 2)
Indicator Positions
Figure 5-52 LOM indicators
1
Connection status
indicator/Data transmission
status indicator for a 10GE
optical port
2
Data transmission rate
indicator for a 10GE optical
port
