The FlexIO card (with electrical ports) cannot be connected to power over
Ethernet (PoE) devices (such as a switch with PoE enabled). Otherwise, link
communication failure or even damage to the FlexIO card may be caused.
⚫
Contact your local sales representative or use the Compatibility Checker to
determine the components to be used.
⚫
When IB cards are used to build an IB network, ensure that the IPoIB modes of
the IB cards at both ends of the network are the same. For details, contact
technical support.
Table 5-20 FlexIO cards supported by the 2288H V5 (example)
NIC Model
Chip Model
Port Type
Number of
Ports
Support
NC-SI/WOL/P
XE
SM210
5719
GE electrical
port
4
√
SM211
i350
GE electrical
port
2
√
SM212
i350
GE electrical
port
4
√
SM233
X540
10GE
electrical port
2
√
SM251
CX3
56G IB optical
port
2
×
SM252
CX3
56G IB optical
port
1
×
SM330
X710
10GE optical
port
2
√
SM380
CX4
25GE optical
port
2
√
Indicator Positions
⚫

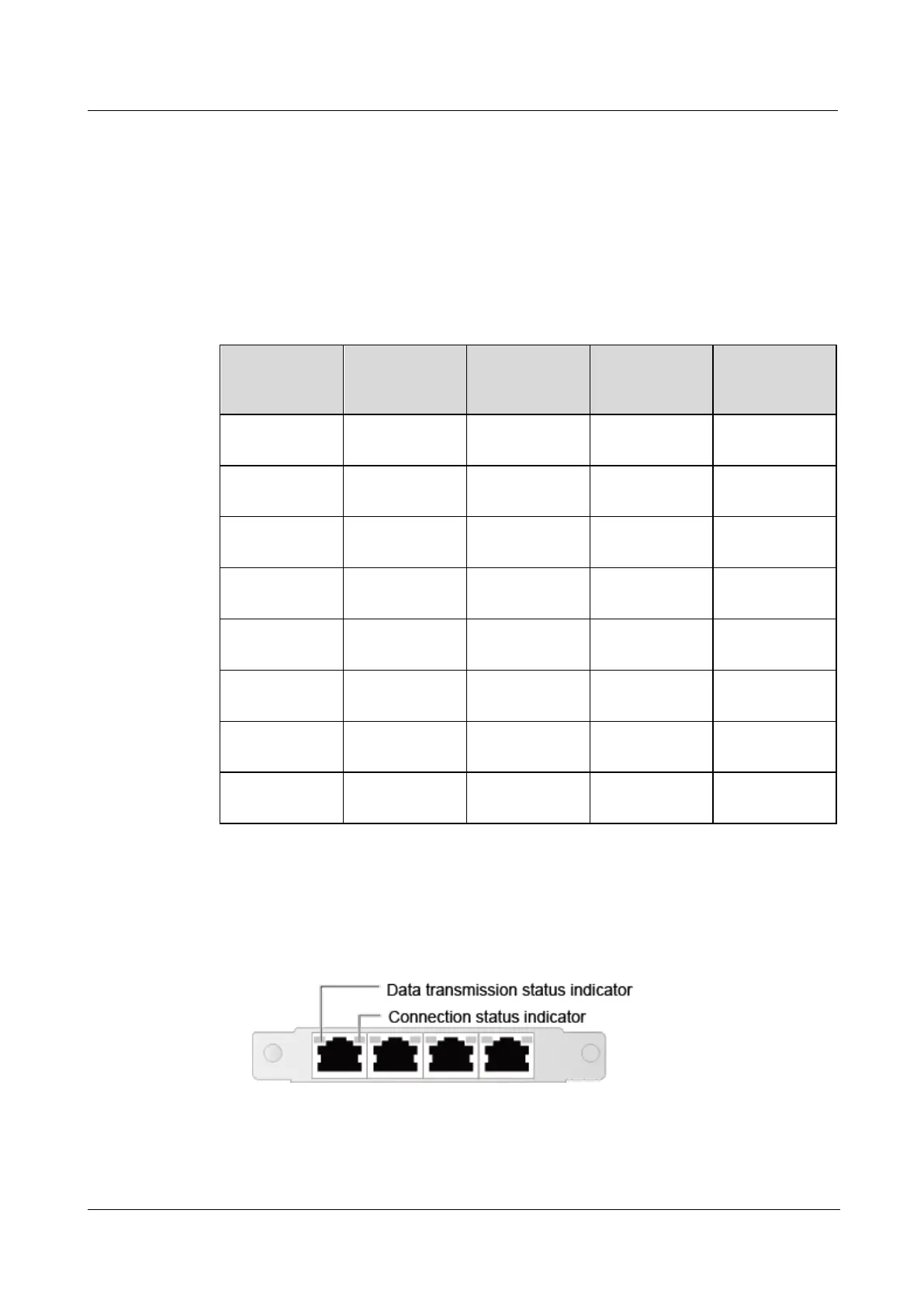

SM210/SM212 with four GE electrical ports
Figure 5-53 SM210/SM212 network port indicators
⚫
SM211 with two GE electrical ports
