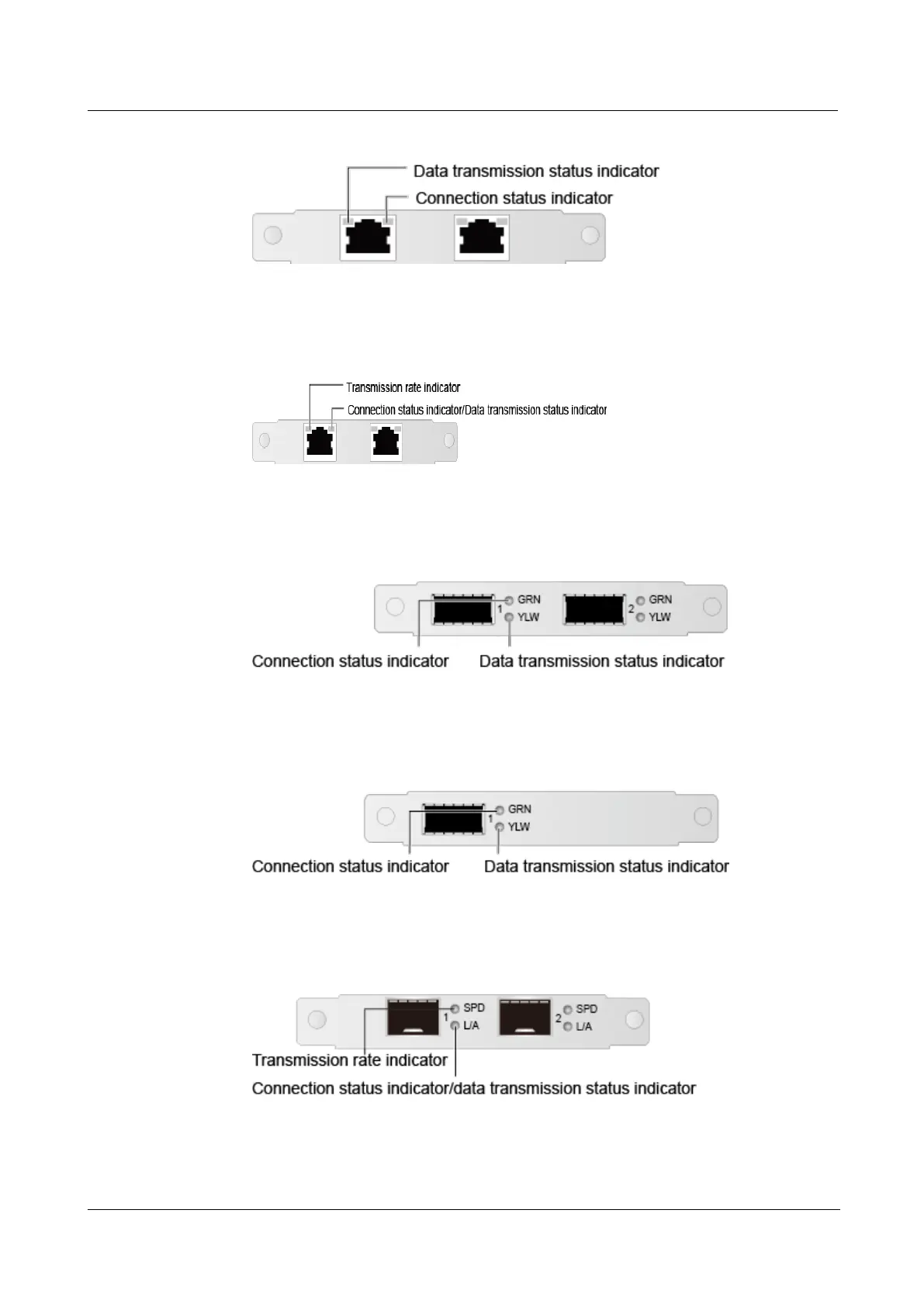

Figure 5-54 SM211 network port indicators
⚫
SM233 with two 10GE electrical ports
Figure 5-55 SM233 network port indicators
⚫
SM251 with two 56G IB optical ports
Figure 5-56 SM251 network port indicators
⚫
SM252 with one 56G IB optical port
Figure 5-57 SM252 network port indicators
⚫
SM330 with two 10GE optical ports/SM380 with two 25GE optical ports
Figure 5-58 SM330/SM380 network port indicators
