FusionServer 2288H V5 Server

Technical White Paper

5 Hardware Description

Issue 11 (2023-04-30)

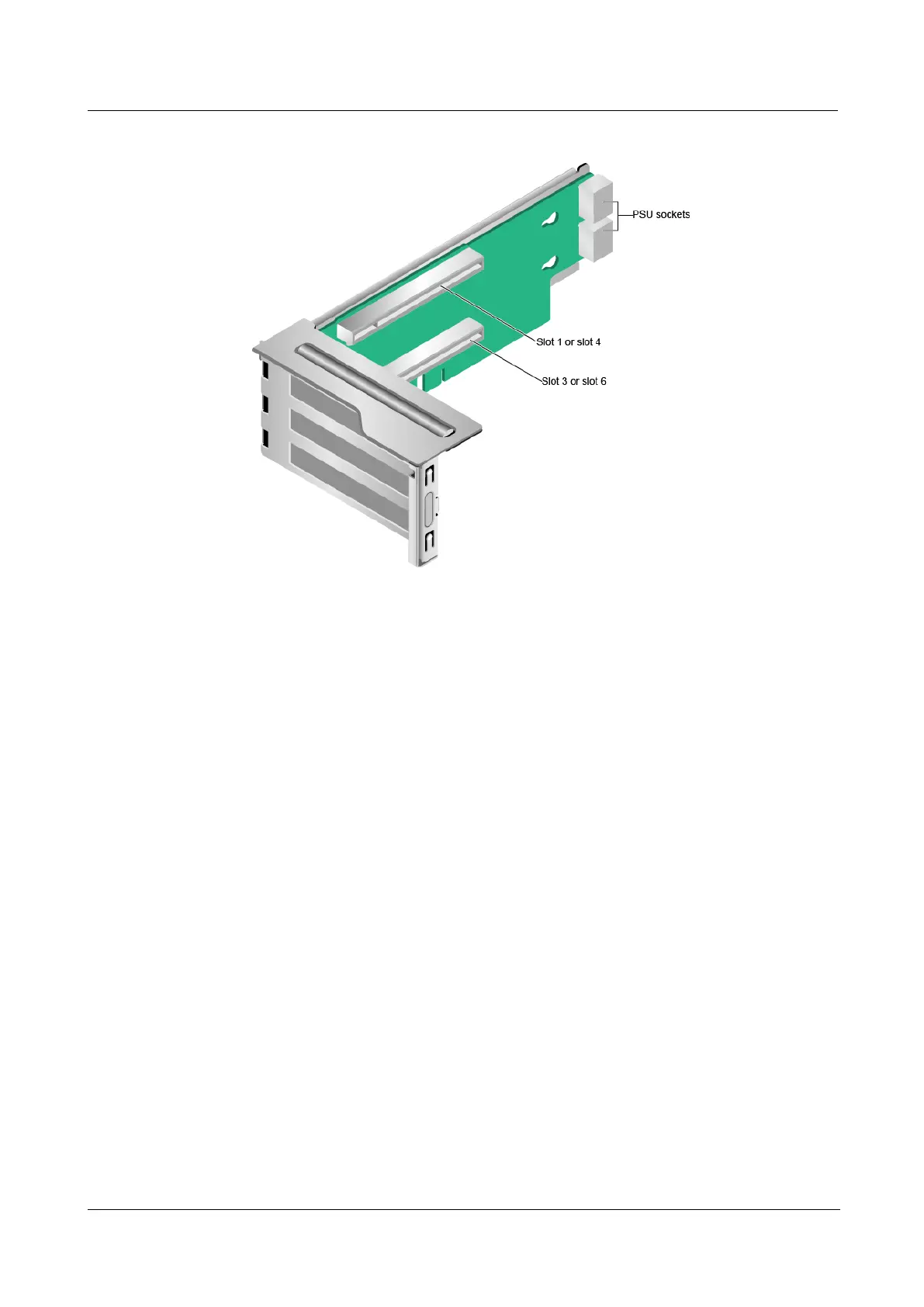

Figure 5-60 PCIe riser module 1

⚫

PCIe riser module 2 (universal)

− It provides PCIe slots 1, 2, and 3 when being installed in I/O module 1.

− It provides PCIe slots 4, 5, and 6 when being installed in I/O module 2.
